DESCRIPTION

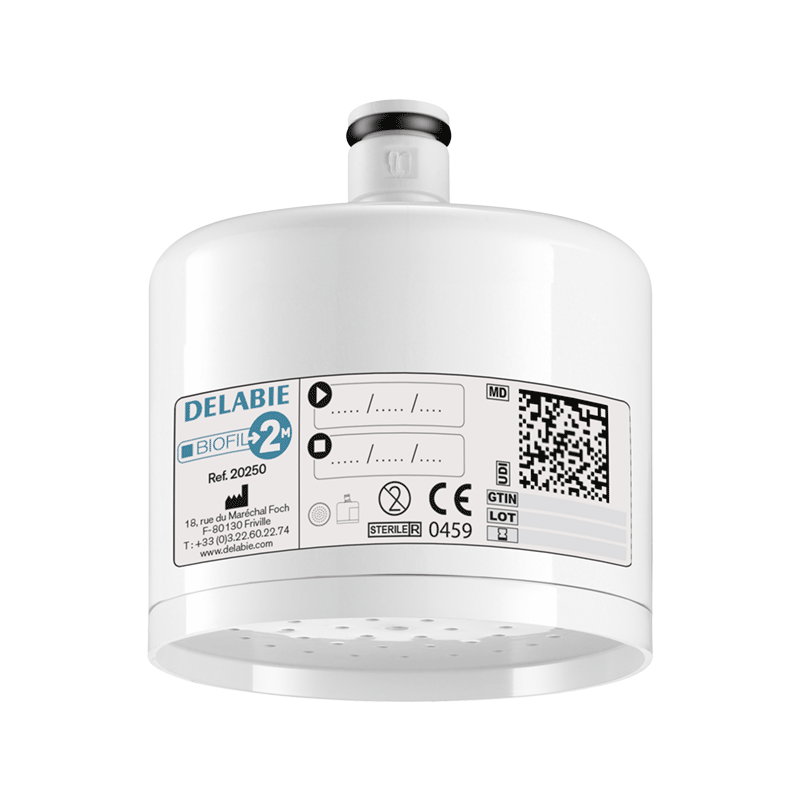

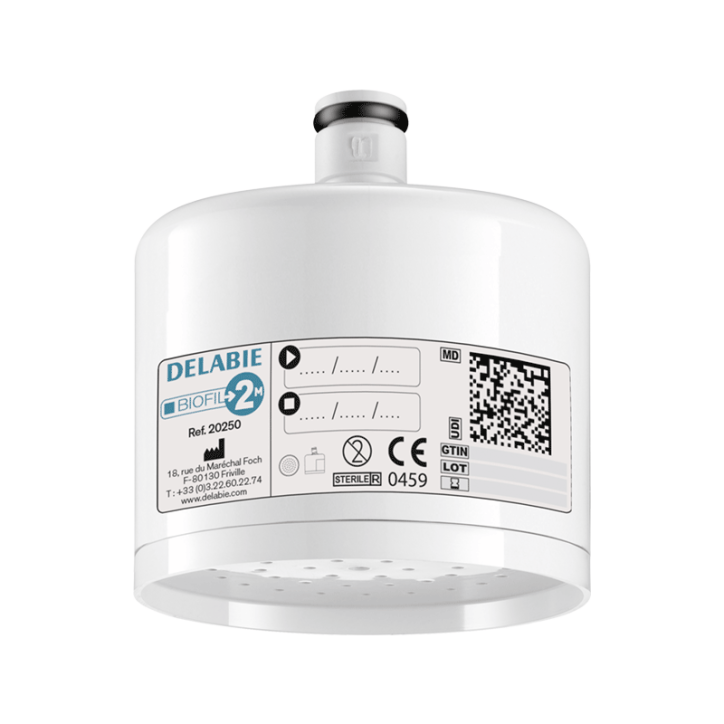

BIOFIL 2-month filter for taps and exposed showers
Ref. 20250BIOFIL anti-legionella and all-germ filter for taps and exposed showers, shower spray.
Device material: ABS.
Type of membrane: tubular microfiltration.
Membrane material: Polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Qualified water volume per duration of use: 6,000 litres.
Filtration flow rate: 3 lpm at 1 bar, 5.5 lpm at 3 bar and 7.4 lpm at 5 bar (filter only, excludes any flow rate restriction in the tap).
Space saving, suitable for taps with a low spout height: H. 44mm, Ø 46mm.
Controlled management of retro-contamination: protective skirt and angled connector for optimal positioning (filter position can be adjusted so the water does not flow directly on to the waste).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 2 months after installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm for 2 hours (cumulative total).
Sterile filter. Individually wrapped.
CE Class Is medical device.
Single unit. Can only be ordered in multiples of 10. Packaged in boxes of 10.
Device material: ABS.
Type of membrane: tubular microfiltration.
Membrane material: Polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Qualified water volume per duration of use: 6,000 litres.
Filtration flow rate: 3 lpm at 1 bar, 5.5 lpm at 3 bar and 7.4 lpm at 5 bar (filter only, excludes any flow rate restriction in the tap).
Space saving, suitable for taps with a low spout height: H. 44mm, Ø 46mm.
Controlled management of retro-contamination: protective skirt and angled connector for optimal positioning (filter position can be adjusted so the water does not flow directly on to the waste).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 2 months after installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm for 2 hours (cumulative total).
Sterile filter. Individually wrapped.
CE Class Is medical device.
Single unit. Can only be ordered in multiples of 10. Packaged in boxes of 10.
ADVANTAGES
Anti-Legionella and all-germ
Space saving
Optimised positioning: tilting connector
Lifespan: 2 months after installation
TECHNICAL CHARACTERISTICS
BIOFIL 2-month filter for taps and exposed showers
Ref. 20250Technology | Point-of-use filtration |
Height | 44mm |
Flow rate | 3 lpm at 1 bar, 5.5 lpm at 3 bar and 7.4 lpm at 5 bar |
Diameter | 56mm |
Lifespan | 2 months |
Certificates |
VARIANTS
20251 | Laminar flow |
---|
VARIANTS
20251 | Laminar flow |
---|
