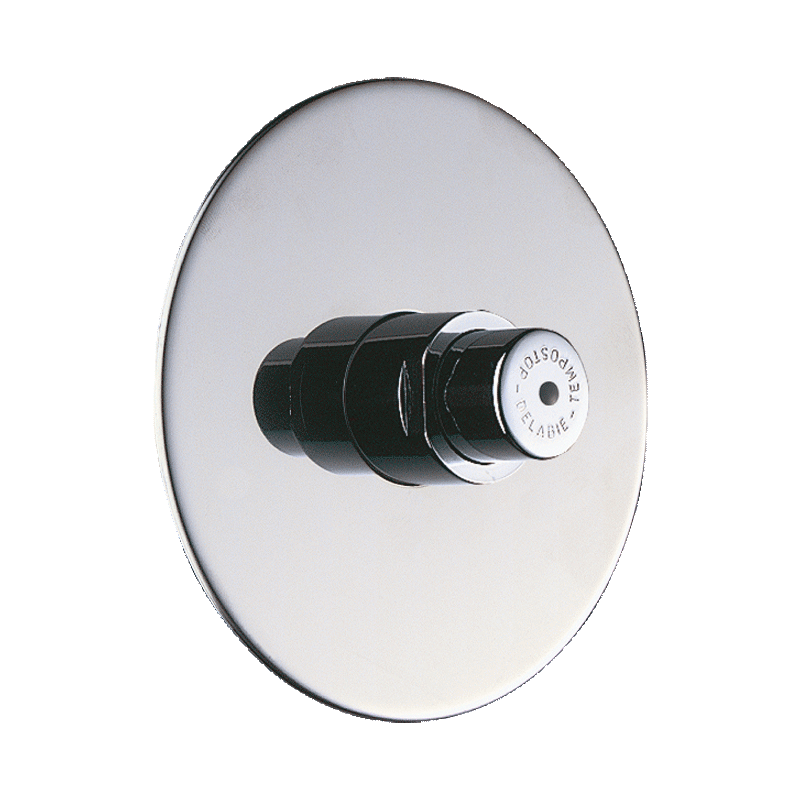

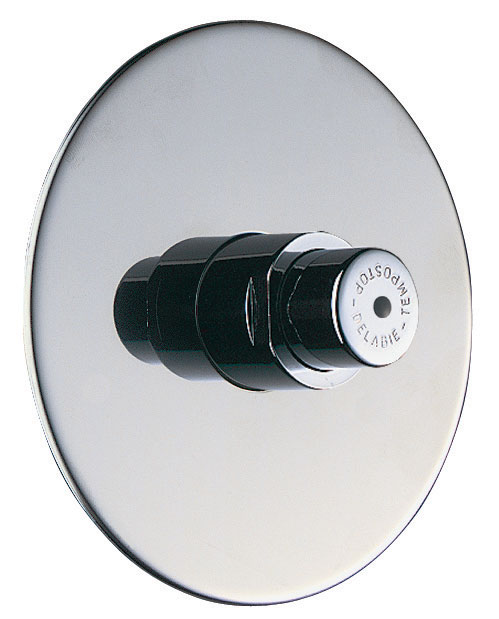

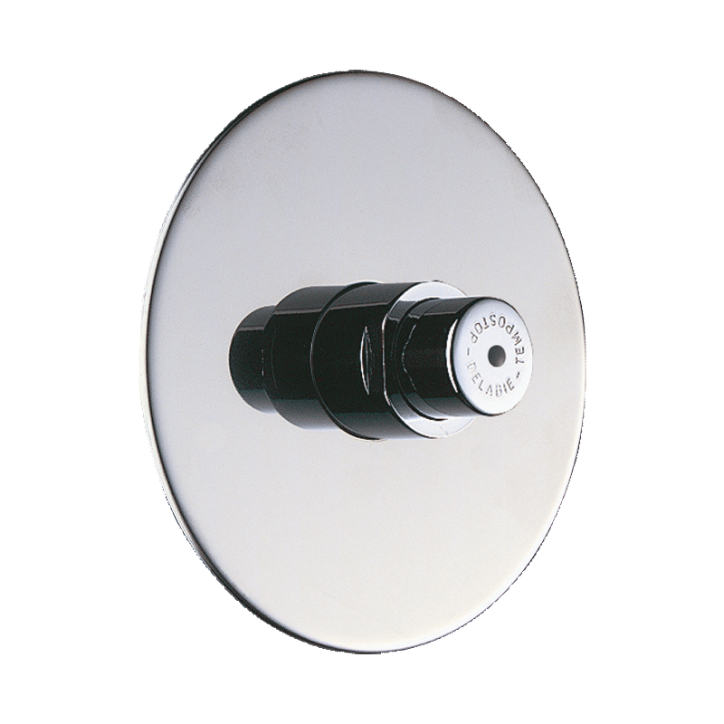

Recessed time flow urinal valve:
For standard or siphon action urinals.
For recessed installation.

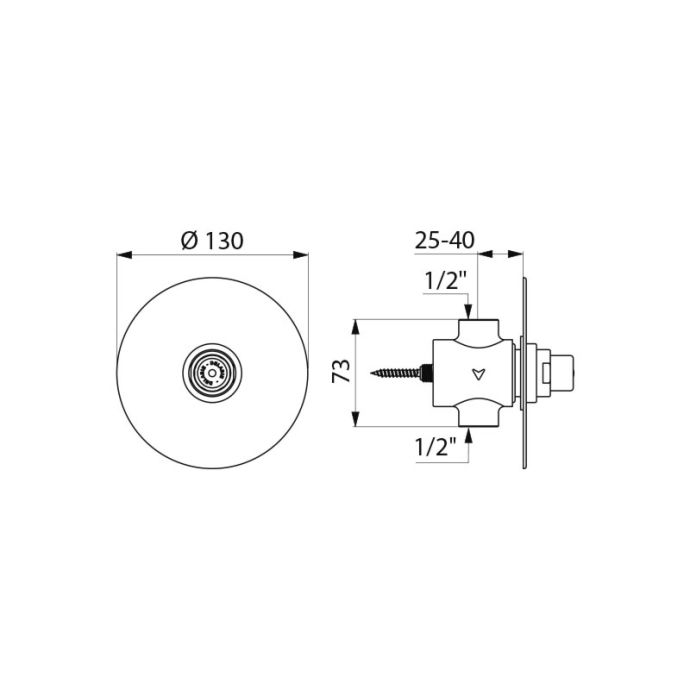

Recessing depth can be adjusted from 25 to 40mm.
Stainless steel wall plate Ø 130mm.
Compatible with rain water.
Time flow ~7 seconds.
Flow rate pre-set at 0.25 l/sec. at 3 bar, can be adjusted.
Chrome-plated brass body F½".
30-year warranty.
This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
Advantages
Time flow 7 seconds
Wall recessed installation
Withstands over 500,000 operations
TEMPOSTOP time flow urinal valve
Ref. 779128
Technology
Time flow
Flow rate
0.25 l/sec.
Certificates
Warranty
TEMPOSTOP time flow urinal valve
Ref.
779128
