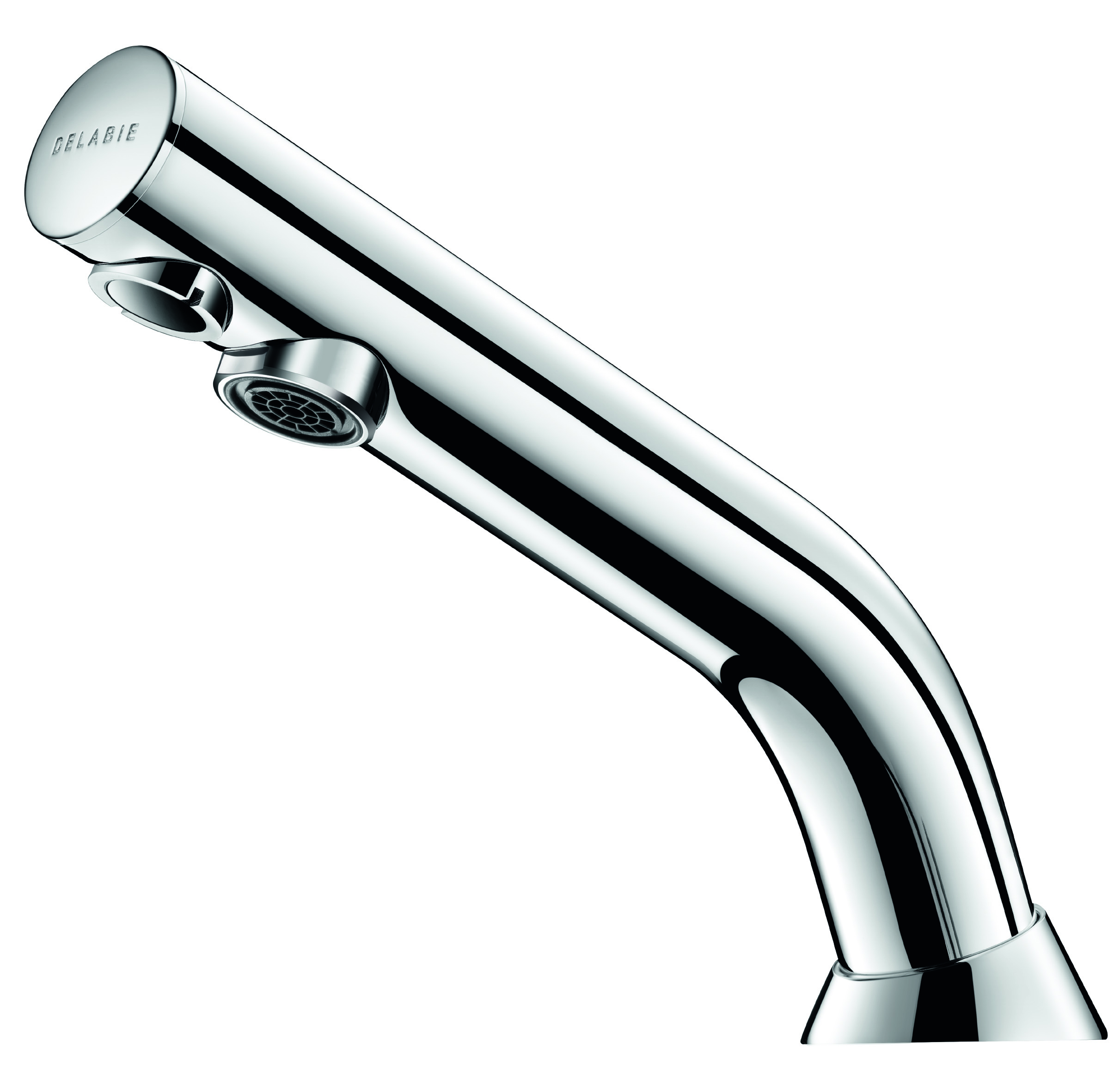

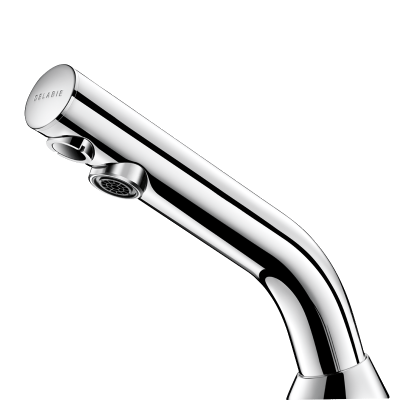

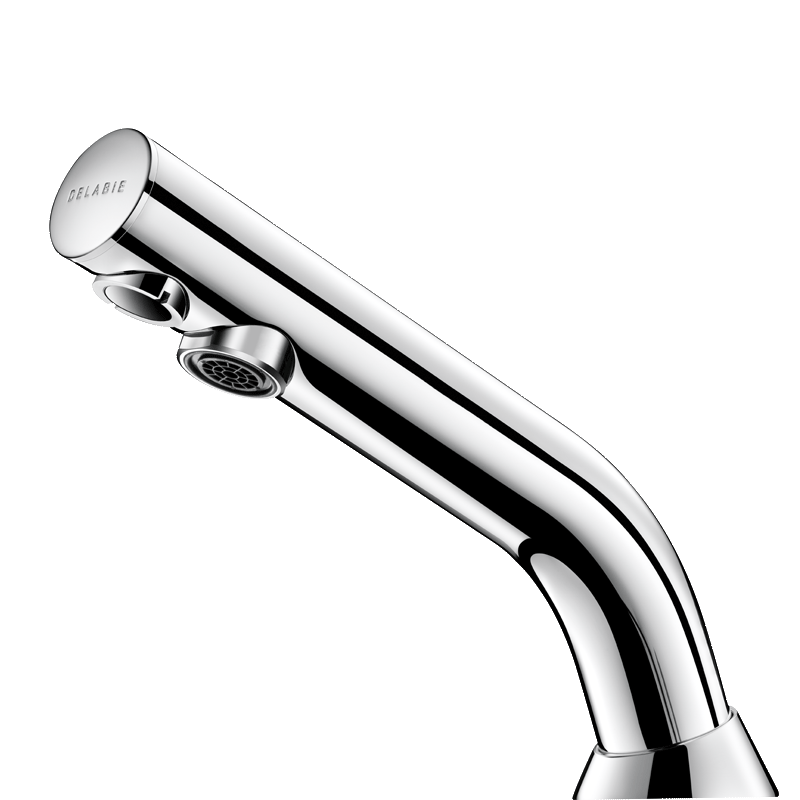

BINOPTIC electronic tap
Ref. 37801515
Mains supply, Ø 15mm compression fittings
Mains supply, Ø 15mm compression fittings
DESCRIPTION
BINOPTIC electronic tap
Ref. 37801515Deck-mounted electronic basin tap:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24hr after last use).
Active, infrared movement detection, sensor at the end of the spout optimises detection.
Chrome-plated solid brass body.
PEX flexible with filter, solenoid valve and Ø 15mm compression fittings.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with a smooth interior and low volume of water (limits bacterial niches).
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24hr after last use).
Active, infrared movement detection, sensor at the end of the spout optimises detection.
Chrome-plated solid brass body.
PEX flexible with filter, solenoid valve and Ø 15mm compression fittings.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with a smooth interior and low volume of water (limits bacterial niches).
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES

Exceptional water savings: 90%

Hygiene: no manual contact

Duty flush limits bacterial proliferation

LED diagnostic aid

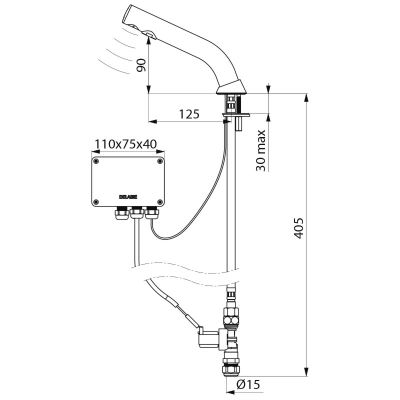

TECHNICAL CHARACTERISTICS
BINOPTIC electronic tap
Ref. 37801515| Supply | 230/12V mains supply |
| Connector | M1/2'' Ø 15mm |
| Technology | Electronic |
| Drop height | 90mm |
| Spout length | 125mm |
| Flow rate | 3 lpm |
| Certificates |
|
| Warranty | |
| Repairability | ![]() |
Spare parts

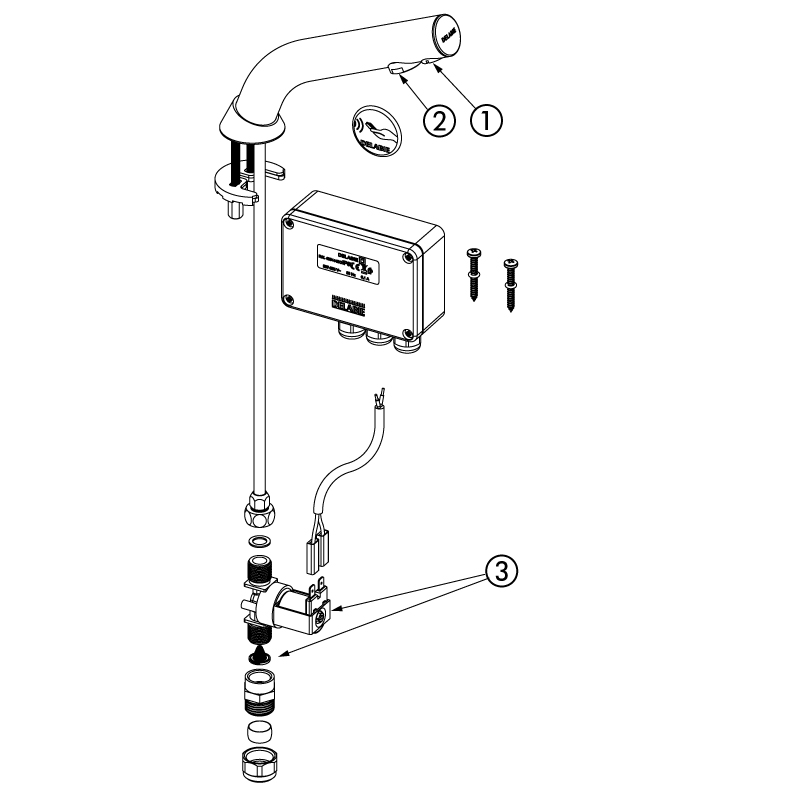

SPARE PARTS
BINOPTIC electronic tap
Ref. 37801515
| 1. | CEL378150V |
|
Detector |
| 2. | 922024.2P |
|
ECO flow straightener |
| 3. | 495612 |
|
Solenoid valve |
VARIANTS
| 378015 | Mains supply - M3/8" | ||
|---|---|---|---|
| 478015 | Battery operated - M3/8" | ||
| 47801515 | Battery operated - Ø15mm compression fittings |
VARIANTS
| 378015 | Mains supply - M3/8" | ||
|---|---|---|---|
| 478015 | Battery operated - M3/8" | ||
| 47801515 | Battery operated - Ø15mm compression fittings |
