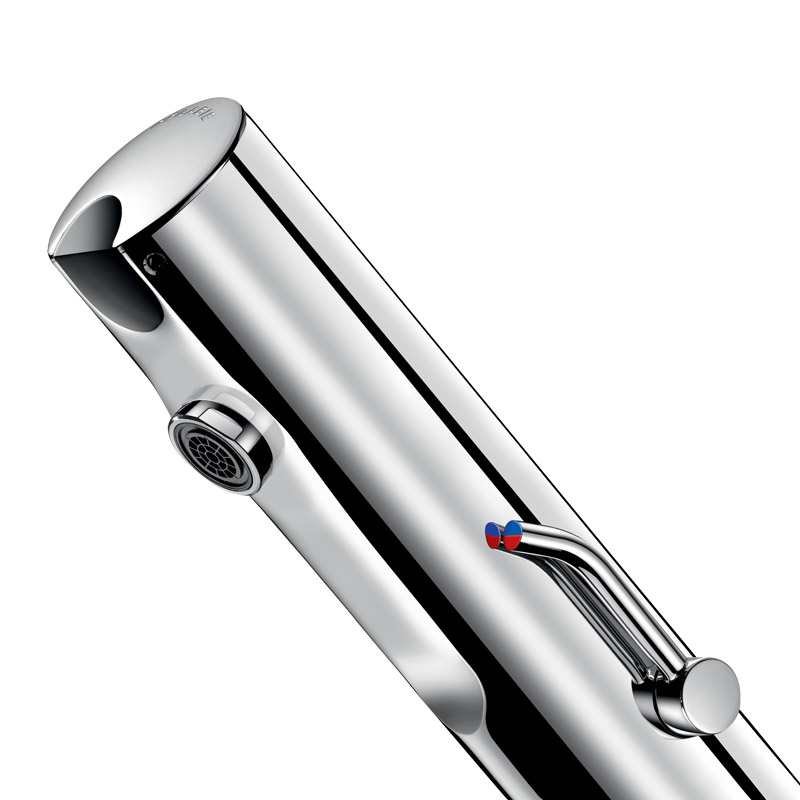

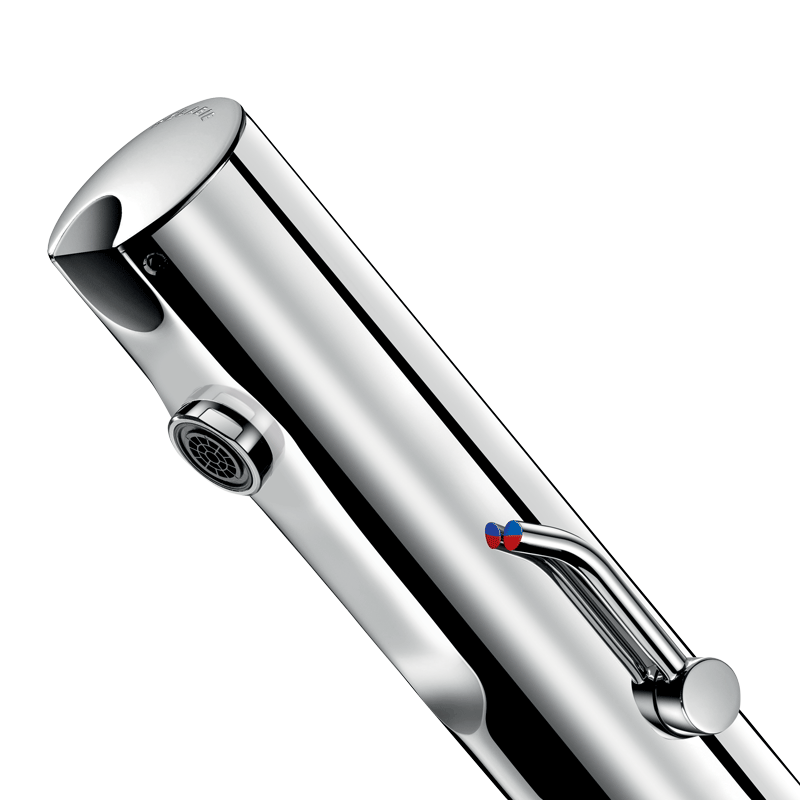

TEMPOMATIC MIX 4 electronic mixer
Ref. 490000LH
Recessed mains supply, stopcocks
Recessed mains supply, stopcocks
DESCRIPTION
TEMPOMATIC MIX 4 electronic mixer
Ref. 490000LHDeck-mounted electronic basin mixer:
230/6V recessed mains supply.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control with long lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
230/6V recessed mains supply.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control with long lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES

Exceptional water savings: 90%

Hygiene: no manual contact

Recessed mains supply

Integrated solenoid valve

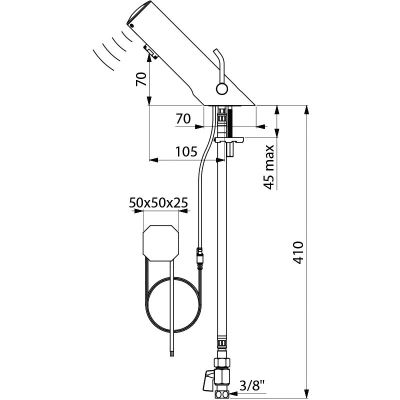

TECHNICAL CHARACTERISTICS
TEMPOMATIC MIX 4 electronic mixer
Ref. 490000LH| Supply | 230/6V mains supply (recessed) |
| Connector | F3/8" |
| Technology | Electronic |
| Drop height | 70mm |
| Spout length | 105mm |
| Flow rate | 3 lpm |
| Certificates |
|
| Warranty | |
| Repairability | ![]() |
Spare parts
SPARE PARTS
TEMPOMATIC MIX 4 electronic mixer
Ref. 490000LH
| 1. | 490452T |
|
Electronic control unit |
| 2. | 479650 |
|
Solenoid valve |
| 3. | 922016.2P |
|
Flow straightener |
| 4. | 490240 |
|
Power supply |
| 5. | 900010 |
|
Non-return valve |
| 6. | 60440.10P |
|
Filter with mesh screen |
| 7. | 825212 |
|
In-line STOP union |
VARIANTS
| 490100LH | Mains supply, recessed unit - long lever -Without stopcocks | ||
|---|---|---|---|
| 490006LH | Battery operated - long lever - With stopcocks | ||
| 490106LH | Battery operated - long lever - Without stopcocks |
VARIANTS
| 490100LH | Mains supply, recessed unit - long lever -Without stopcocks | ||
|---|---|---|---|
| 490006LH | Battery operated - long lever - With stopcocks | ||
| 490106LH | Battery operated - long lever - Without stopcocks |
