Ref. 49000615CO
Integrated batteries, stopcocks Ø 15mm
8 variants
490000 -
Mains supply, recessed unit - standard lever - Stopcocks
49000015 -
Mains supply, recessed unit - standard lever Stopcocks - Ø15mm
490100 -
Mains supply, recessed unit - standard lever - Without stopcocks
490001 -
Mains supply, plug - standard lever - With stopcocks
490101 -
Mains supply, plug - standard lever - Without stopcocks
490006 -
Battery operated - standard lever - With stopcocks
49000615 -
Battery operated - standard lever - With stopcocks - Ø15mm
490106 -
Battery operated - standard lever - Without stopcocks

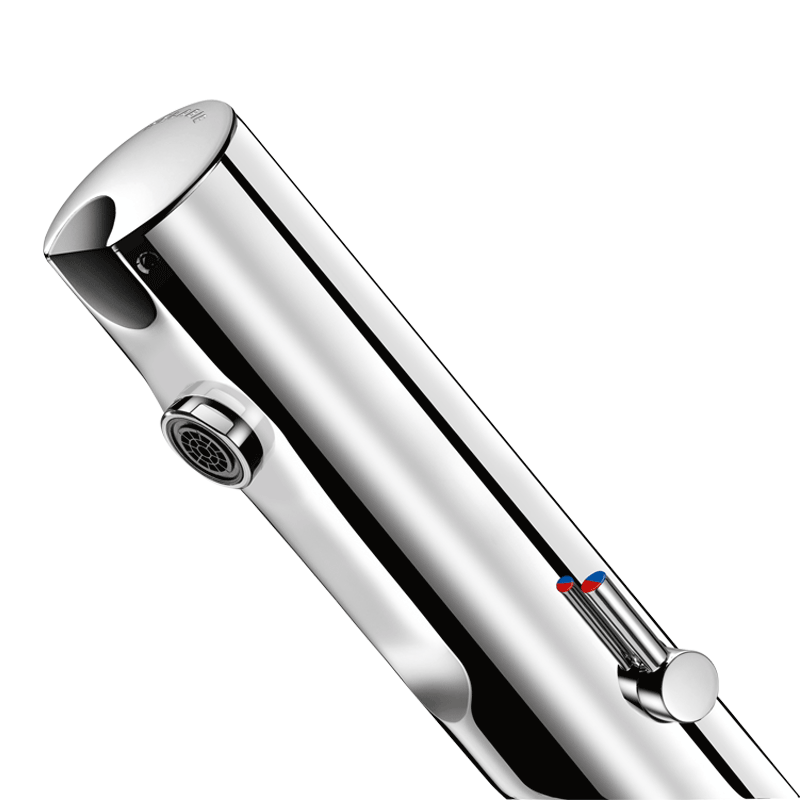

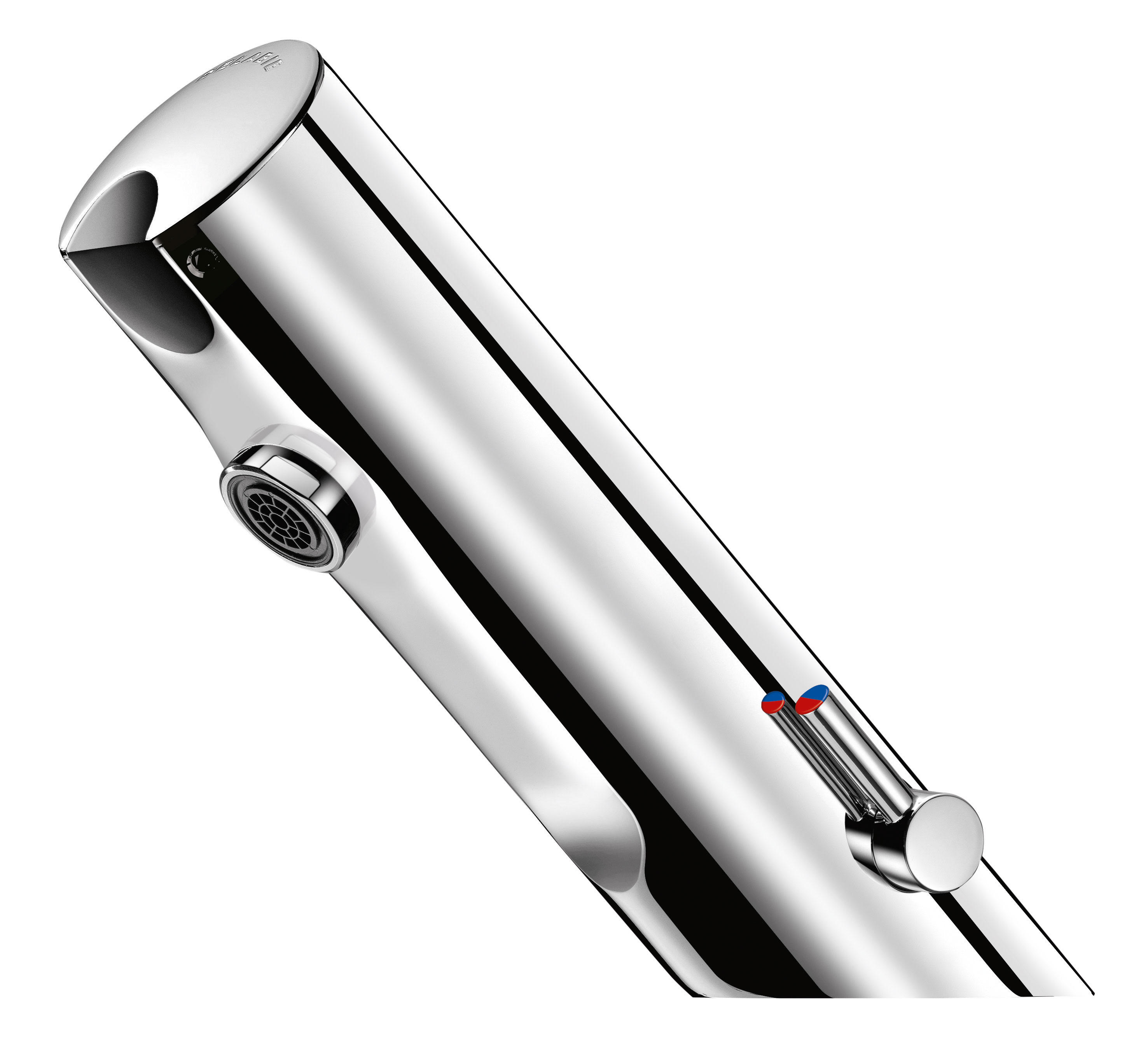

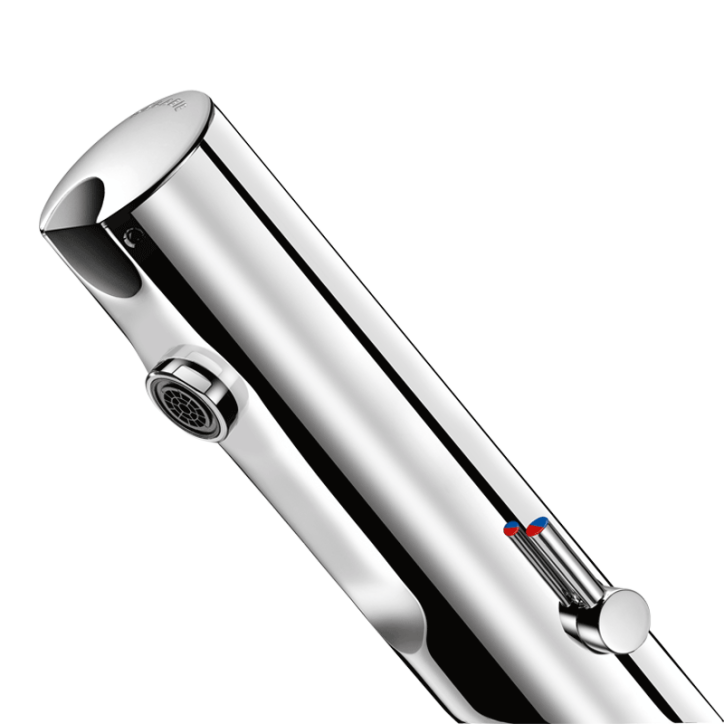

TEMPOMATIC MIX 4 electronic mixer
Ref. 49000615CO
Deck-mounted electronic basin mixer:
Battery-operated with integrated CR123 6V Lithium batteries.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by two concealed screws.
Copper tails, stopcocks, filters, Ø 15mm conical inlets and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Battery-operated with integrated CR123 6V Lithium batteries.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by two concealed screws.
Copper tails, stopcocks, filters, Ø 15mm conical inlets and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Advantages
TEMPOMATIC MIX 4 electronic mixer
Ref. 49000615CO
Supply
6V batteries
Connector M½" Ø 15mm
Technology Electronic

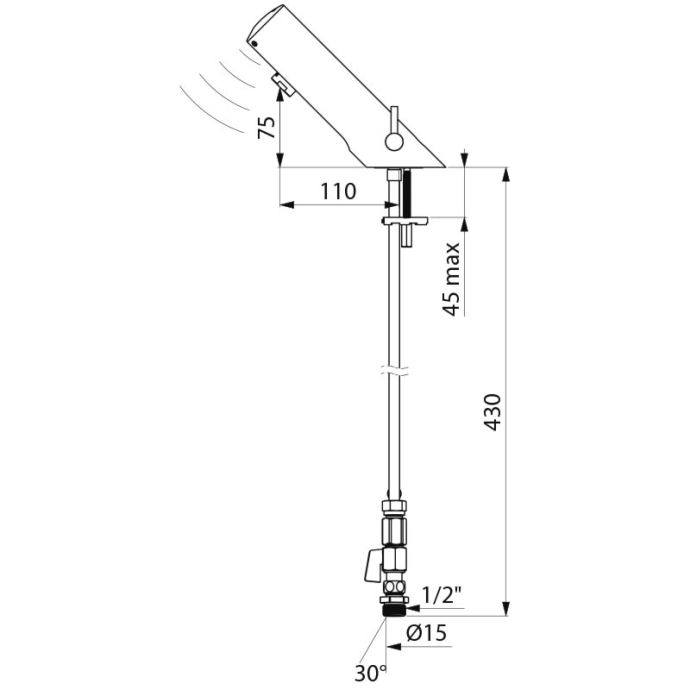

Drop height 70mm
Spout length 105mm
Flow rate 3 lpm
Warranty
Connector M½" Ø 15mm
Technology Electronic
Drop height 70mm
Spout length 105mm
Flow rate 3 lpm
Warranty
TEMPOMATIC MIX 4 electronic mixer
Ref. 49000615CO
