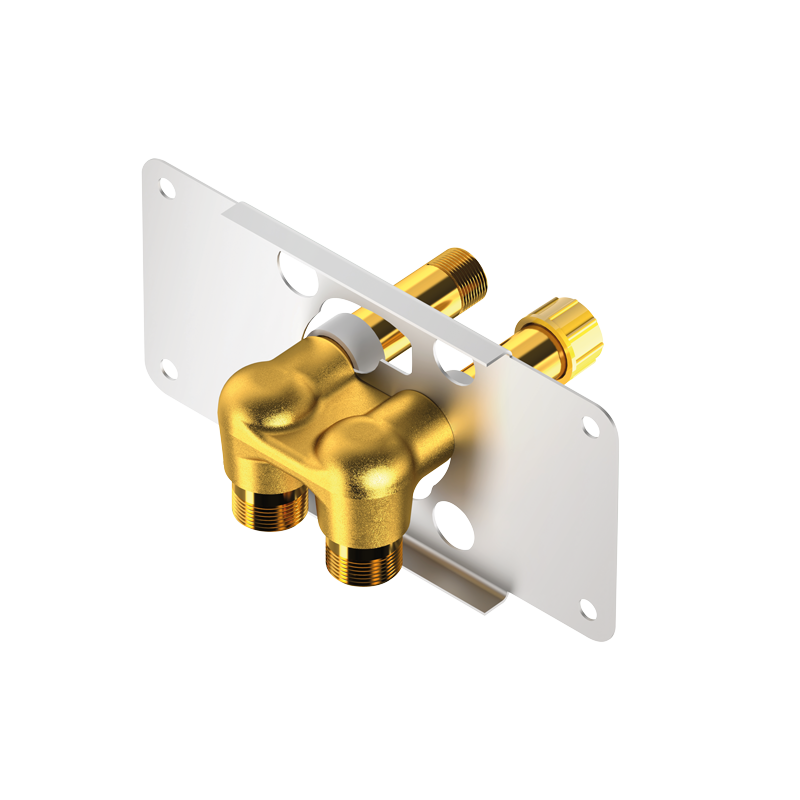

Recessed nanny joint, kit 1/2:
Compact nanny bracket for SPORTING 2 SECURITHERM battery-operated or time flow shower panels.

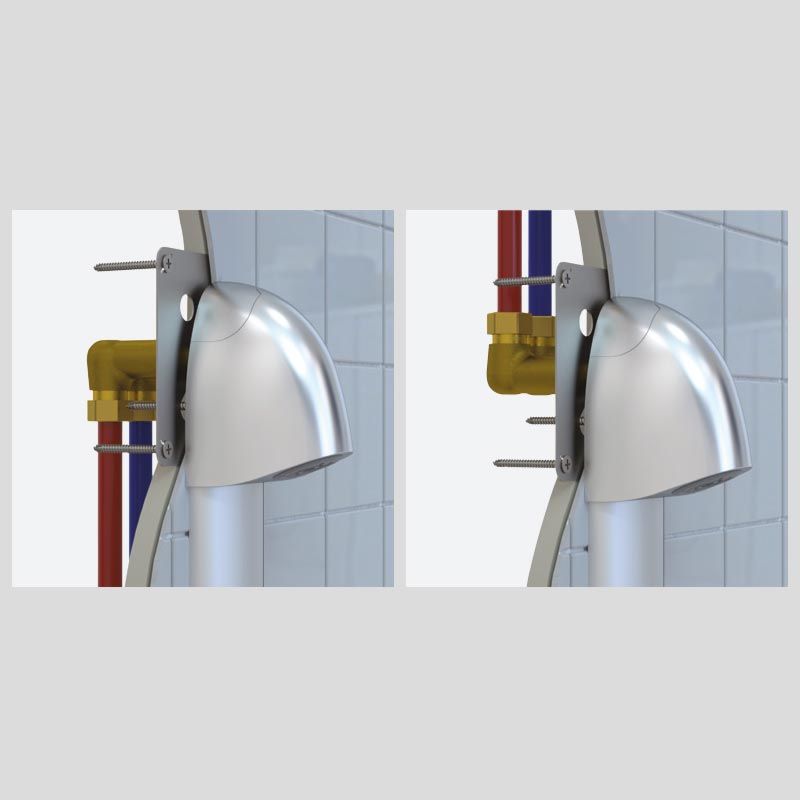

Recessed top or bottom inlet.
Delivered with caps installed for pressure testing.
Fixing plate is easy to install: bayonette system to allow maintenance of the caps in situ.
Mounted with screwdriver or pliers.
Modular installation (plaster rails, solid walls):

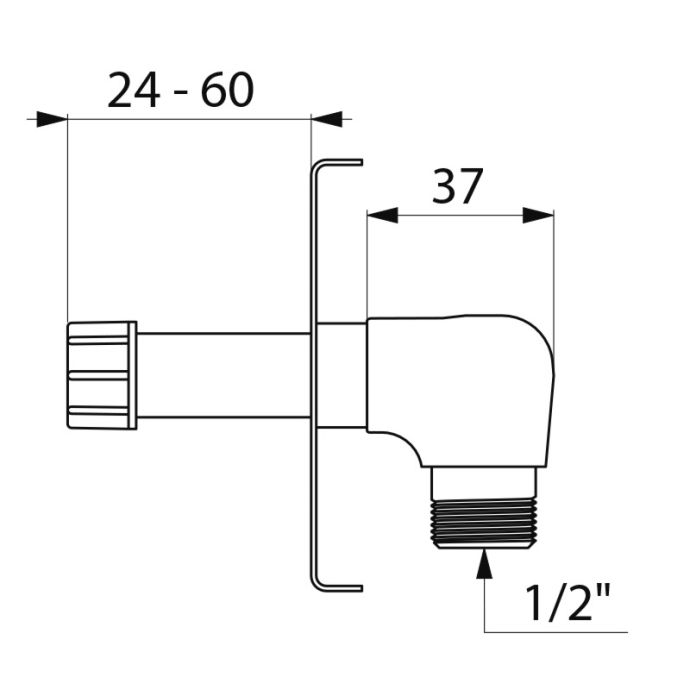

- Installation with plaster rails (with or without struts): compatible with panels between 24 and 68mm (with a minimum recessing depth of 48mm).
- Installation with solid walls: compatible with panels between 0 and 68mm.
Secured system purge without sensitive elements.
Connector M1/2".
30 year warranty.

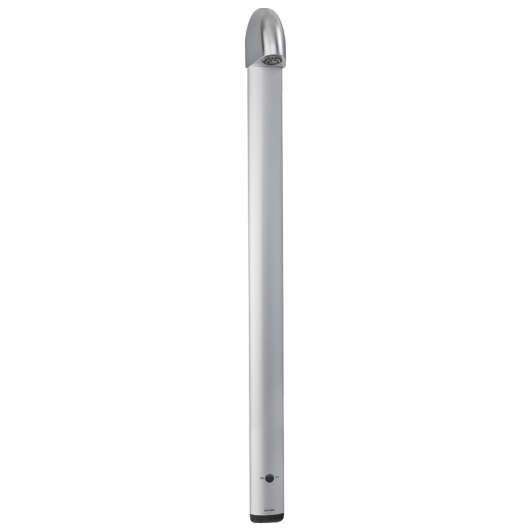

Order with the SPORTING 2 SECURITHERM battery-operated shower panel with recessed supply, reference 714916.
Advantages
Easy to install
Recessed nanny joint for SPORTING 2 SECURITHERM
Ref. 714612
Supply
CR123 6V lithium batteries (electronic version)
Connector
M1/2"
Technology
Electronic or time flow
Flow rate
6 lpm
Warranty
Recessed nanny joint for SPORTING 2 SECURITHERM
Ref.
714612
