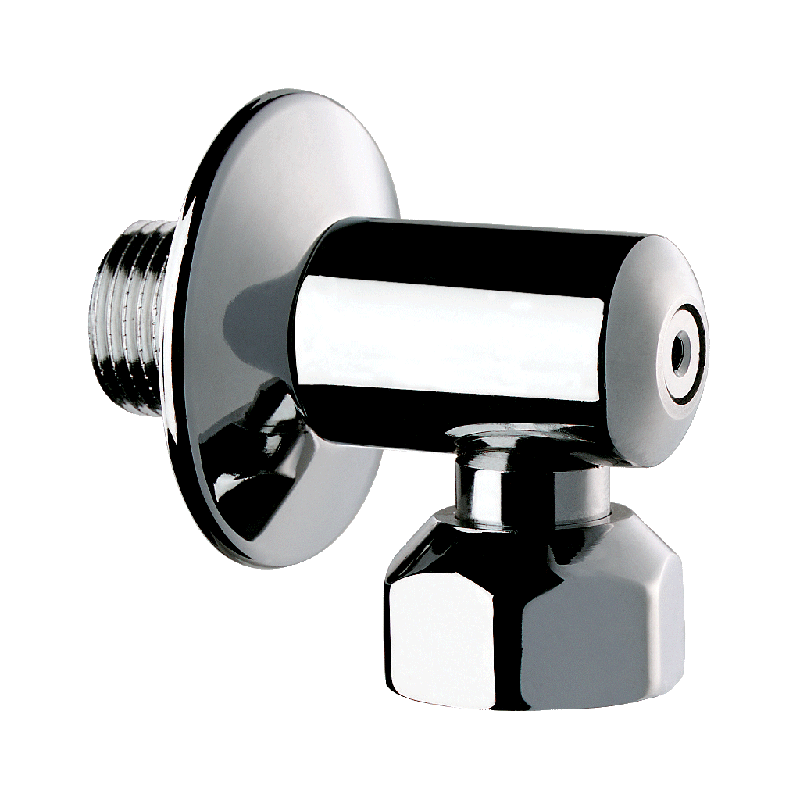

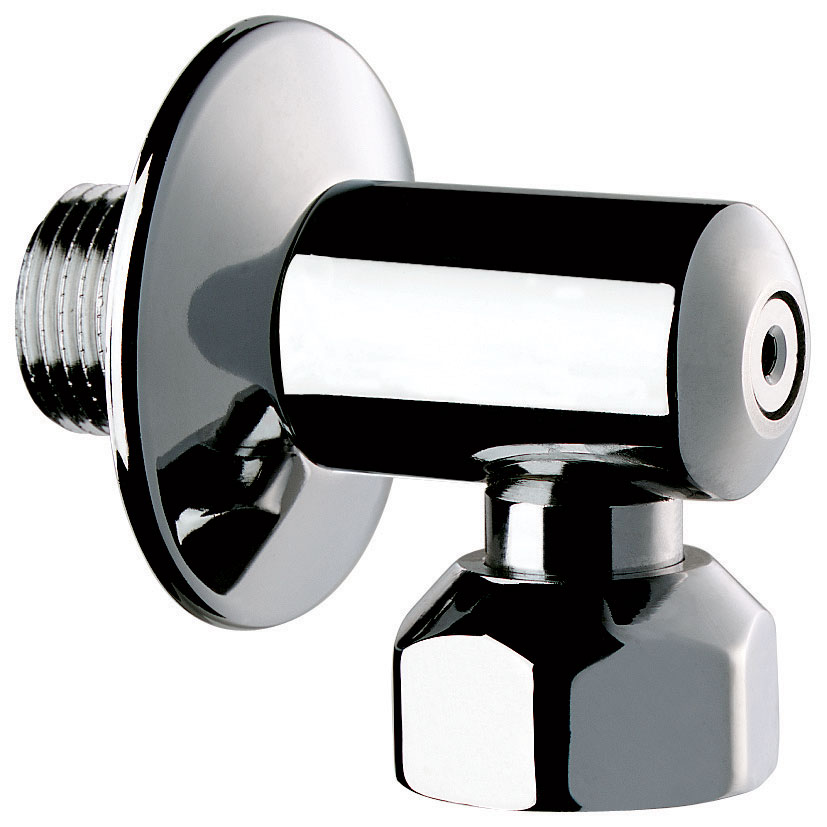

Elbow STOP union

Ref. 836020
With stopcock
See variants See variants
Elbow STOP union

Presentation

DESCRIPTION

Elbow STOP union

Ref. 836020
Integrated stopcock.
Chrome-plated brass.
Retractable nut.
M1/2"-F3/4".
L.30mm.
H.30mm ±2 mm.
30-year warranty.

ADVANTAGES

Universel

Universal

Endurance - Fiabilité

Chrome-plated brass

Characteristics

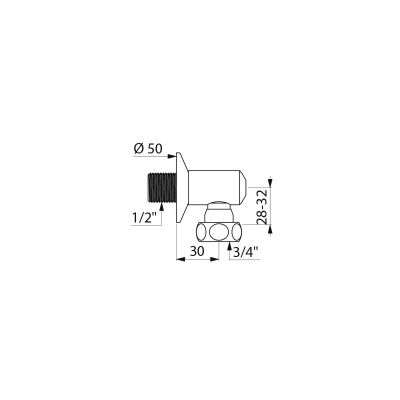

TECHNICAL CHARACTERISTICS

Elbow STOP union

Ref. 836020
Connector M1/2" - F3/4"
Height 30mm +/- 2mm
Length 30mm
Certificates ACS PZH
Warranty 30-Year
Elbow STOP union
Ref. 836020

Downloads

DOWNLOADS

Elbow STOP union

Ref. 836020

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

836015 MF1/2", L. 30mm, H. 30mm, with stopcocks
836215 MF1/2", L. 21mm, H. 30mm, with stopcocks
838015 MF1/2", H. 27mm, without stopcocks
838020 M1/2" - F3/4", H. 29mm, without stopcocks
874220.2P FF3/4", with captive nut, supplied in packs of 2

Associated products

VARIANTS

836015 MF1/2", L. 30mm, H. 30mm, with stopcocks
836215 MF1/2", L. 21mm, H. 30mm, with stopcocks
838015 MF1/2", H. 27mm, without stopcocks
838020 M1/2" - F3/4", H. 29mm, without stopcocks
874220.2P FF3/4", with captive nut, supplied in packs of 2
