DESCRIPTION

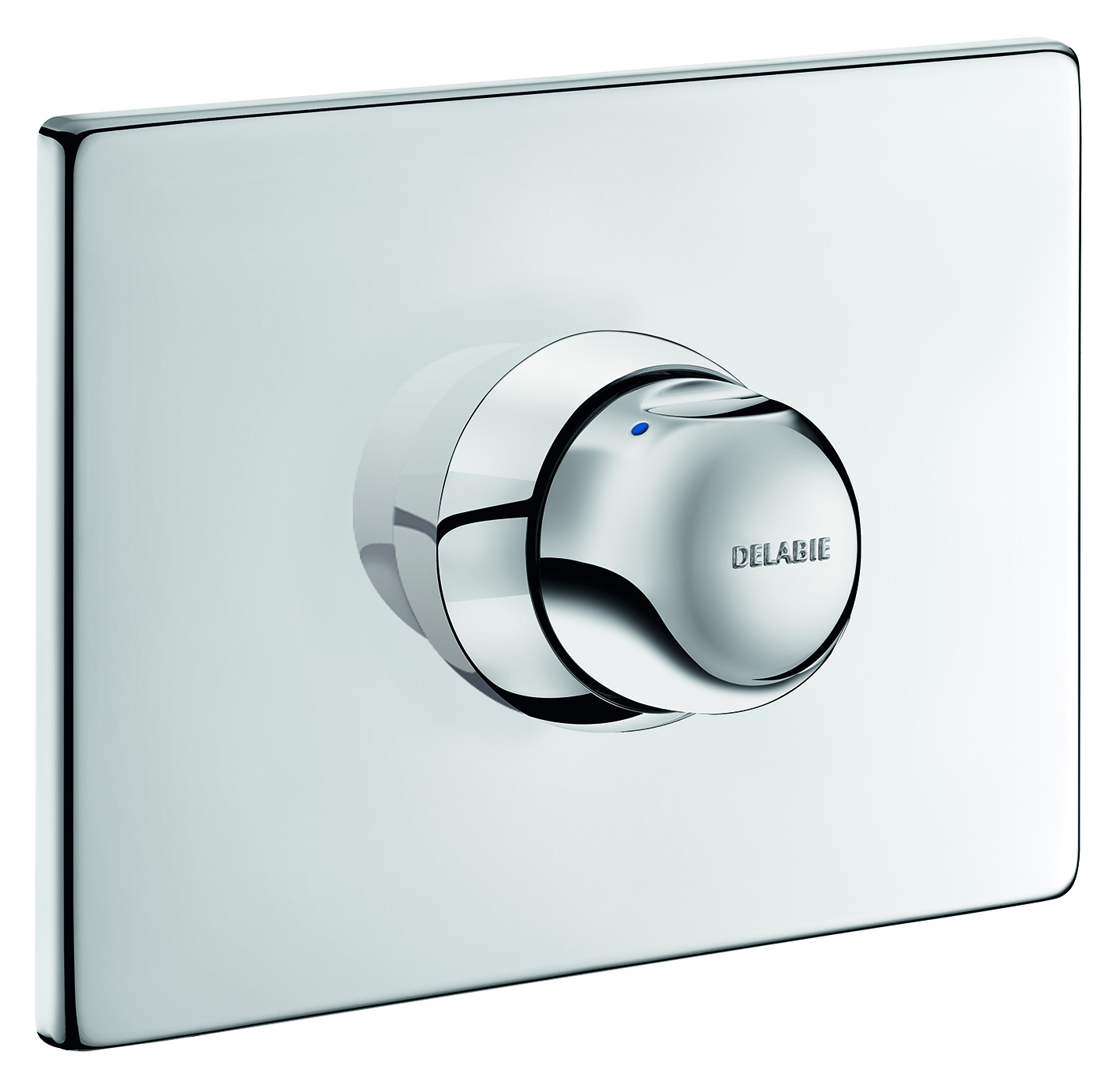

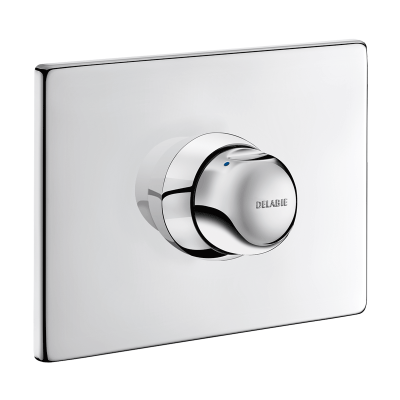

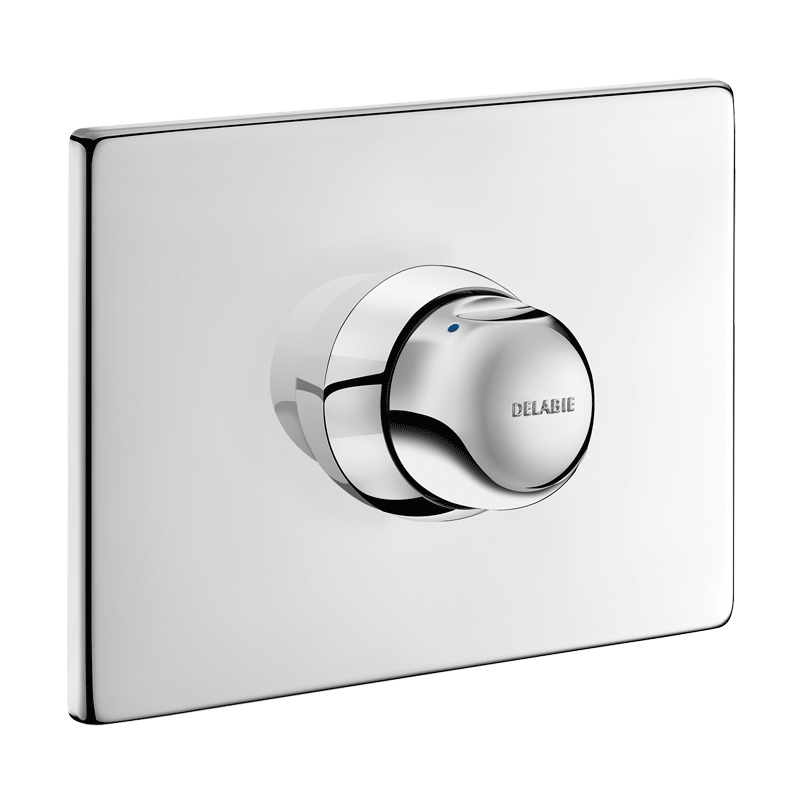

TEMPOMIX time flow shower mixer
Ref. 790218Recessed time flow shower mixer kit 2/2:
Tamperproof bright polished stainless steel control plate 160 x 220mm.
TEMPOMIX ¾" single control shower mixer.
Ligature-resistant collar.
Temperature control and operation via the control.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 12 lpm at 3 bar, can be adjusted.
Concealed fixings, stopcocks M½".
Chrome-plated metal control.
Integrated non-return valves and filters.
30-year warranty.
Order with recessed waterproof housing ref. 790BOX.
Tamperproof bright polished stainless steel control plate 160 x 220mm.
TEMPOMIX ¾" single control shower mixer.
Ligature-resistant collar.
Temperature control and operation via the control.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 12 lpm at 3 bar, can be adjusted.
Concealed fixings, stopcocks M½".
Chrome-plated metal control.
Integrated non-return valves and filters.
30-year warranty.
Order with recessed waterproof housing ref. 790BOX.
ADVANTAGES
80% water savings
Soft-touch operation
Installation recessed in wall
System tested to over 500,000 operations

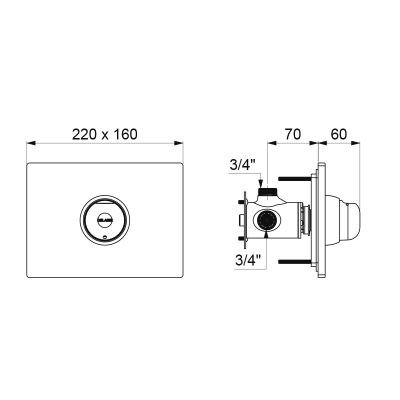

TECHNICAL CHARACTERISTICS
TEMPOMIX time flow shower mixer
Ref. 790218| Connector | 3/4" |
| Technology | Time flow |
| Height | 160mm |
| Depth | 130mm |
| Width | 220mm |
| Flow rate | 12 lpm |
| Finish | Bright polished stainless steel |
| Certificates |
|
| Warranty |
|
Associated products
Recessed waterproof housing for TEMPOMIX shower
Recessed, kit 1/2
Ref. 790BOX
Adjustable height floor trap
For tiles or concrete floors
Ref. 682001UK

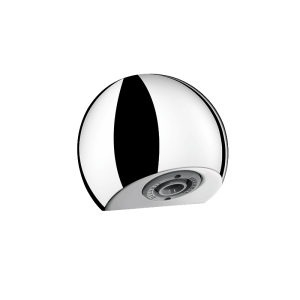

ROUND shower head
