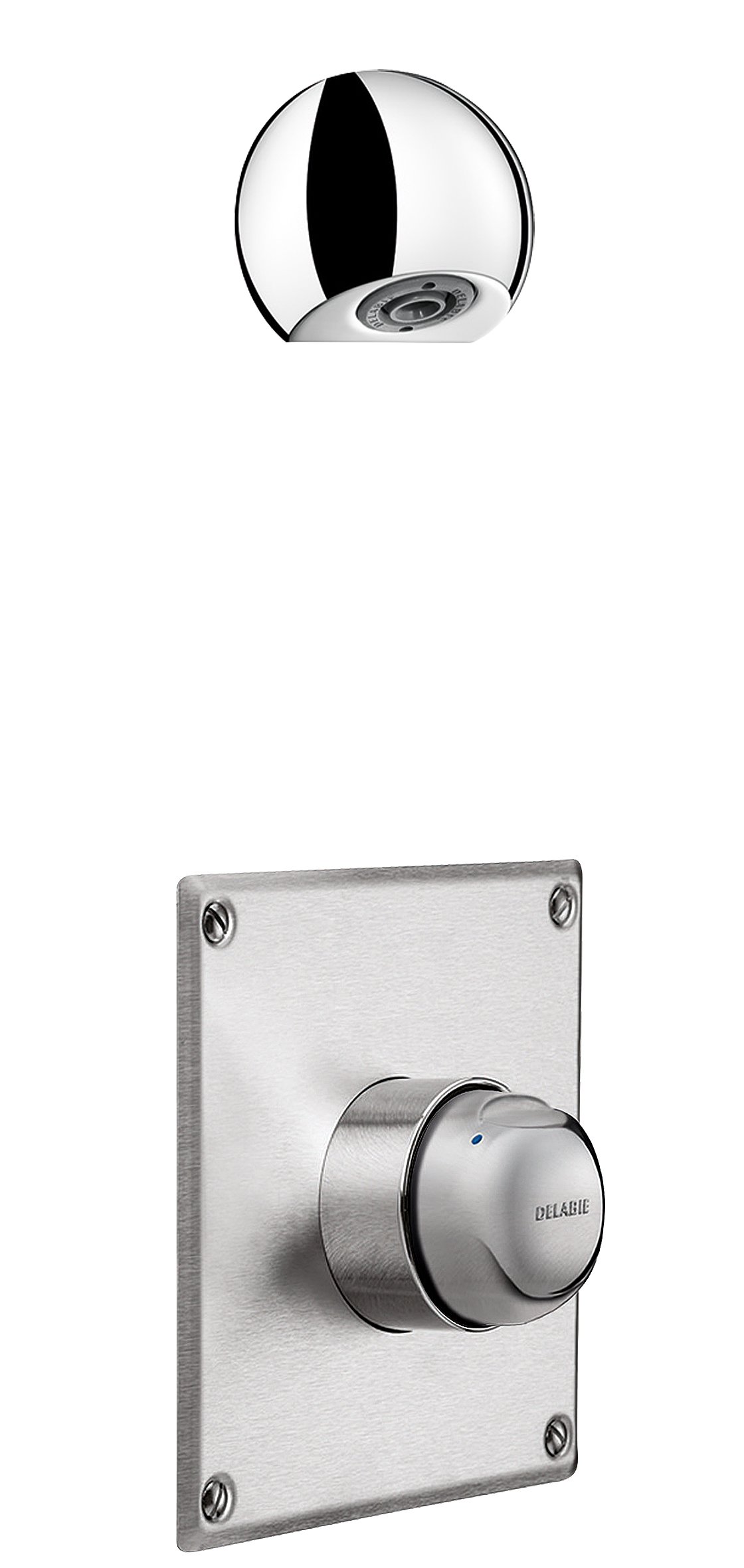

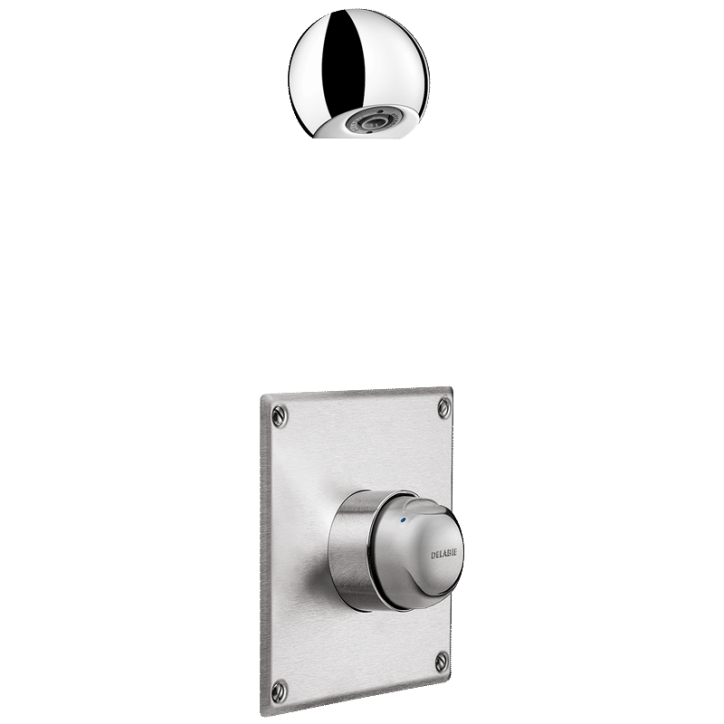

TEMPOMIX time flow shower kit

Ref. 790709

Single control time flow

Ref. 790709

Recessed time flow shower kit:
Stainless steel wall plate 160 x 160mm.
Standard recessing housing.

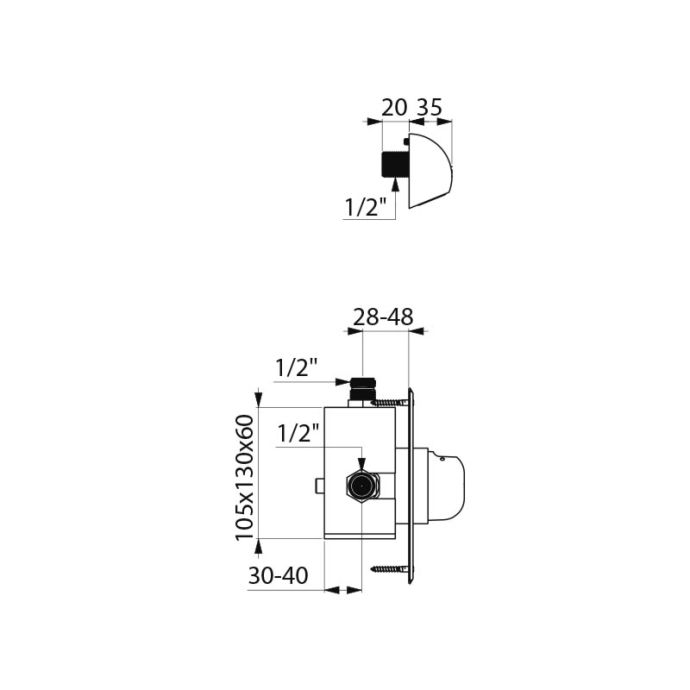

Recessing depth can be adjusted from 28 to 48mm.
TEMPOMIX ¾" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
M½" connections for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal control.
30-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).

Advantages

80% water savings

Wall recessed installation

Time flow system tested to over 500,000 operations

Soft-touch operation

TEMPOMIX time flow shower kit

Ref. 790709

Connector ½"

Technology Time flow

Height 160mm

Width 160mm

Flow rate 6 lpm

Certificates

Warranty

Associated products

Adjustable height floor trap

For tiles or concrete floors

Ref. 682001UK

PREMIX COMPACT Thermostatic mixing valve

For mixed water 30 - 60°C

Ref. 733015

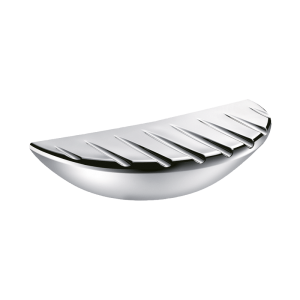

Wall-mounted soap dish
