SECURITHERM shower panel

Presentation

DESCRIPTION

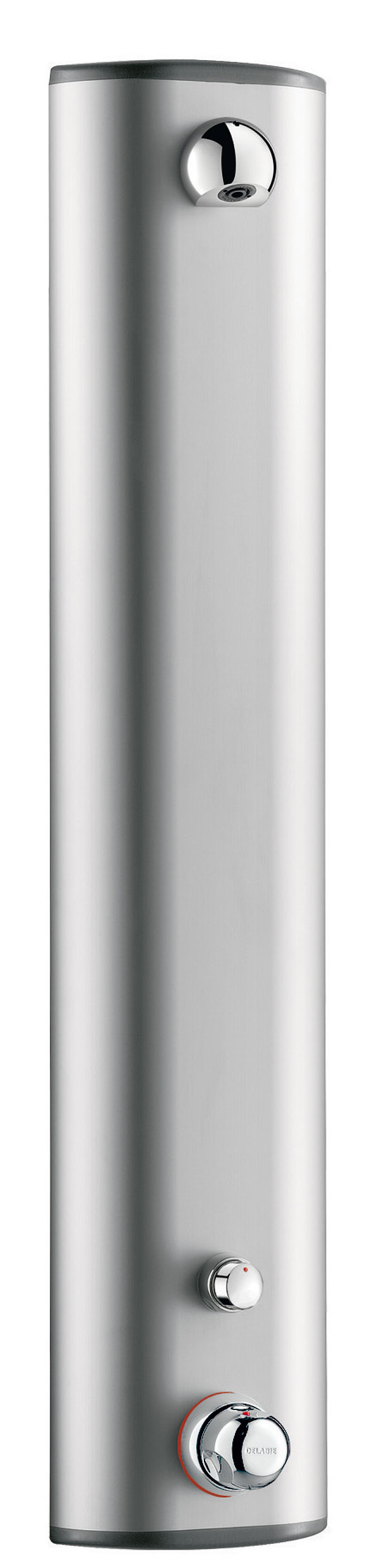

SECURITHERM shower panel

Ref. 792310UK
Thermostatic time flow shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With concealed inlet via flexibles.
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Soft-touch operation.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head and automatic flow rate regulation.
Time flow shower valve ~30 seconds.
Flow rate 6 lpm at 3 bar.
Concealed fixings.
Filters and non-return valves.
Time flow shower panel suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Thermostatic temperature regulation

Sécurité anti-brûlure

Instant shut-off if cold water fails

Economie d'eau

80% water savings

Anti-vandalisme

Aluminium panel, brass controls

Characteristics

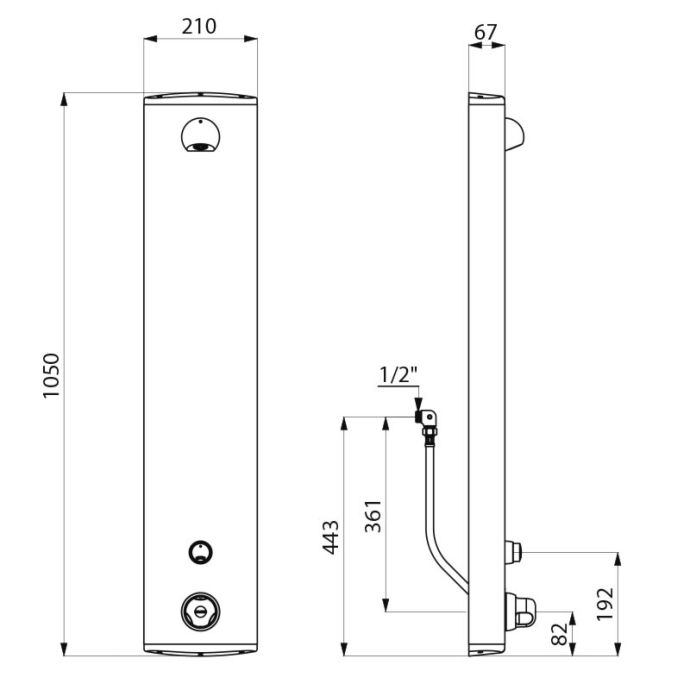

TECHNICAL CHARACTERISTICS

SECURITHERM shower panel

Ref. 792310UK
Connector M½"
Technology Time flow
Height 1050mm
Depth 65mm
Width 210mm
Flow rate 6 lpm
Temperature limiter Thermostatic
Finish Aluminium
Warranty 30-Year
SECURITHERM shower panel
Ref. 792310UK

Downloads

DOWNLOADS

SECURITHERM shower panel

Ref. 792310UK

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

792300 M1/2" top inlet + inline stopcocks
79230015 Top Ø 15mm compression fittings with inline stopcocks
792310 Concealed inlet via M½" flexibles
