DESCRIPTION

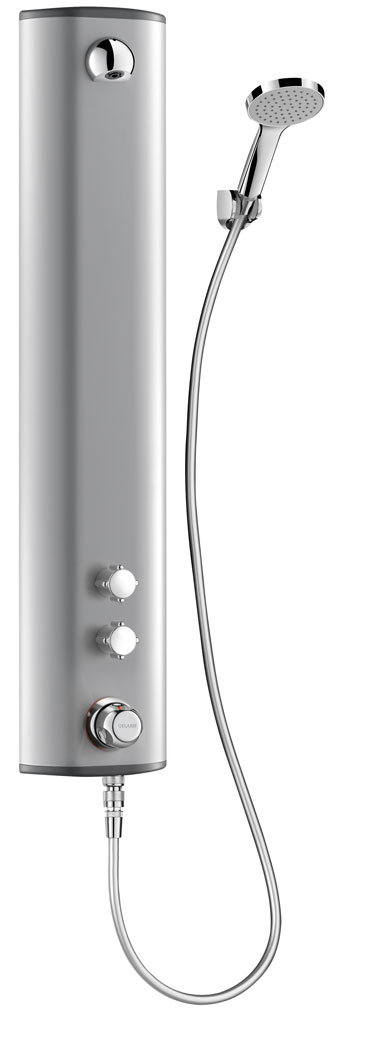

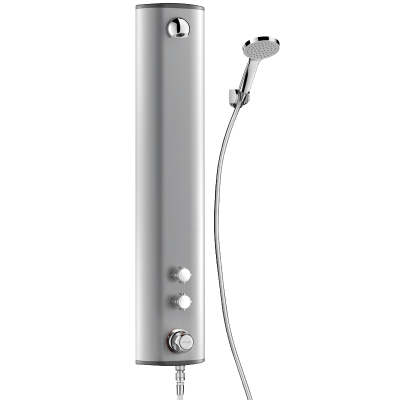

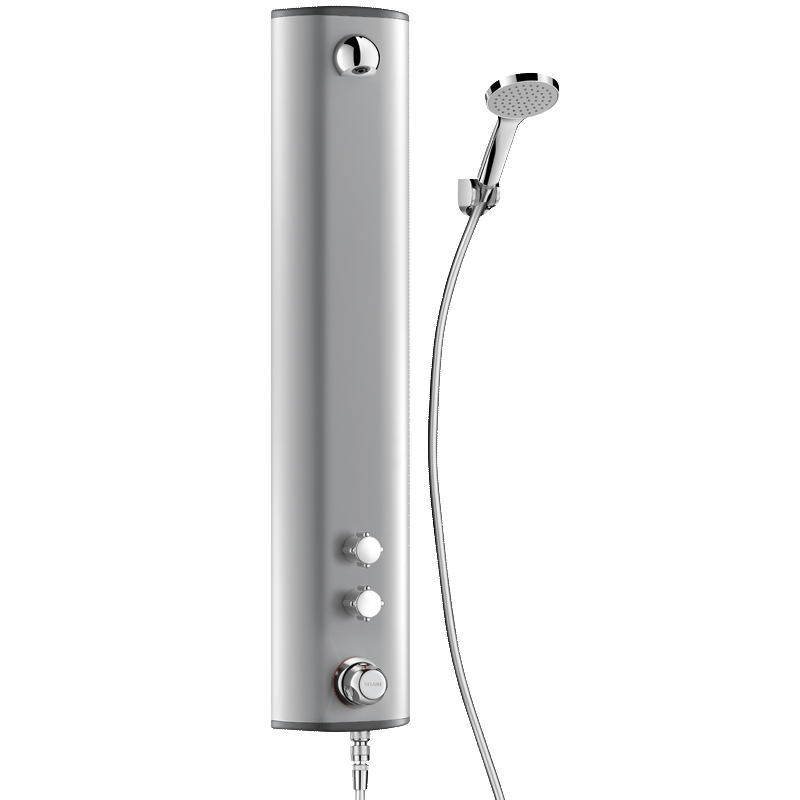

SECURITHERM shower panel
Ref. 792390Dual control thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation set at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector.
2 non-time flow 1/4-turn valves to control fixed shower head and handset on flexible hose (wall support supplied).
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation set at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector.
2 non-time flow 1/4-turn valves to control fixed shower head and handset on flexible hose (wall support supplied).
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES

Themostatic control

Instant shut-off if cold water fails

Fixed shower head or handset

Aluminium panel, brass controls

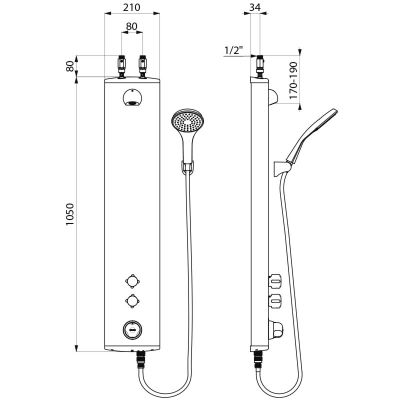

TECHNICAL CHARACTERISTICS
SECURITHERM shower panel
Ref. 792390| Connector | M1/2" |
| Technology | Non-time flow |
| Height | 1050mm |
| Depth | 65mm |
| Width | 210mm |
| Flow rate | 6 lpm |
| Temperature limiter | Thermostatic |
| Finish | Aluminium |
| Certificates |
|
| Warranty | |
VARIANTS
| 79239015 | Top Ø 15mm compression fittings with inline stopcocks | ||
|---|---|---|---|
| 792380 | Concealed inlet via M½" flexibles |
VARIANTS
| 79239015 | Top Ø 15mm compression fittings with inline stopcocks | ||
|---|---|---|---|
| 792380 | Concealed inlet via M½" flexibles |
