Thermostatic mixing valves
New

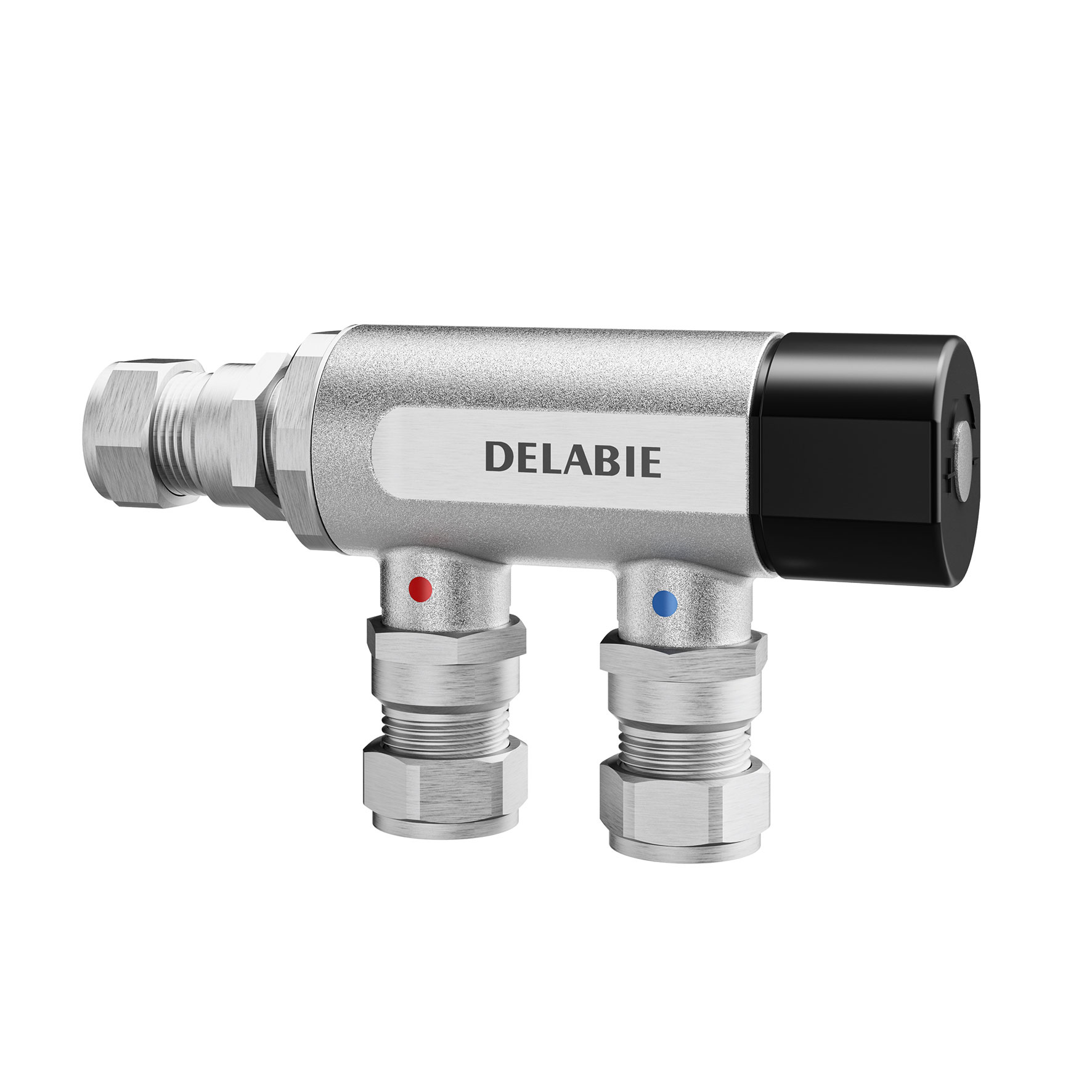

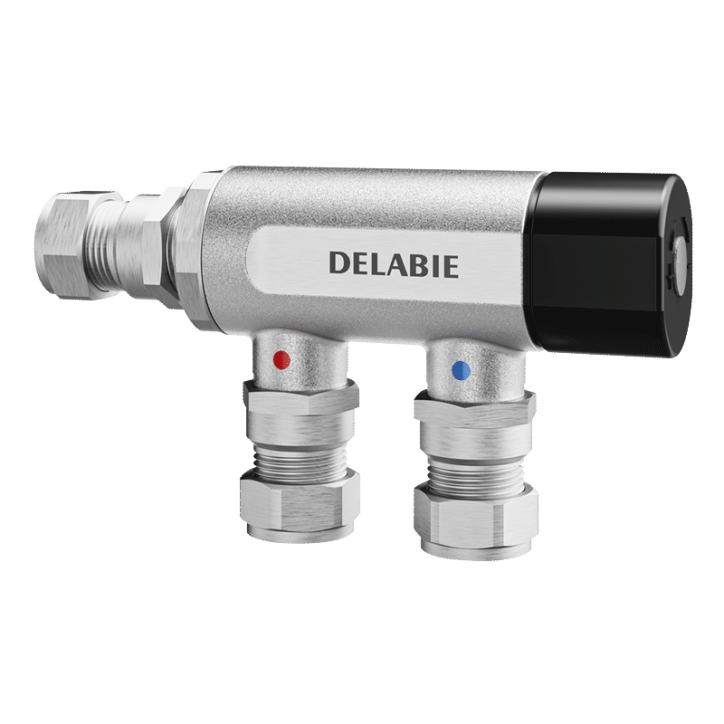

PREMIX COMPACT Thermostatic mixing valve

Ref. 733115

For mixed water 30 - 60 °C

3 variants

733015 - M½" - For 1 to 11 points-of-use - from 5 to 33 lpm
733020 - M¾" - For 1 to 11 points-of-use from 5 to 33 lpm
733116 - M¾" Ø 15mm compression fittings - 25 lpm
PREMIX COMPACT Thermostatic mixing valve

Ref. 733115

Thermostatic mixing valve for mixed water distribution from 30 - 60°C.
To supply 1 to 11 points-of-use (depending on the flow rate).
Anti-scalding safety: shuts off automatically if the cold or hot water supply fails.
Temperature can be adjusted from 30 - 60 °C, can be locked by the installer.
Brass body.
Filters and non-return valves.
Recommended flow rate range: from 5 - 33 lpm.
Thermal shocks are possible.

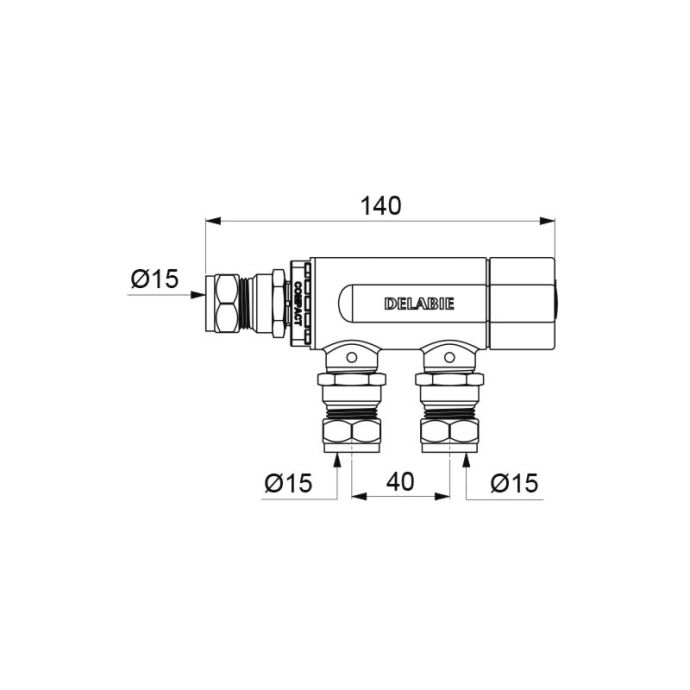

M1/2" Ø 15mm.
Centres: 40mm.
30-year warranty.

Advantages

Sécurité anti-brûlure
Automatic shut-off if hot or cold water fails
Confort - Ergonomie - Déclenchement souple
Stable temperature
Maintenance aisée - Installation aisée
Non-return valves and filters easily accessible
Endurance - Fiabilité
Thermo-reactive cell

Associated products

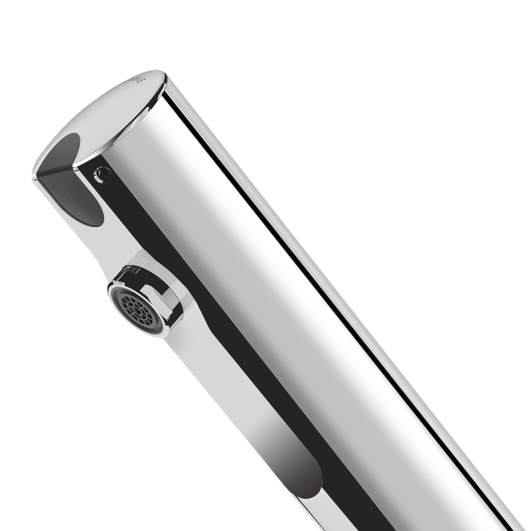

TEMPOMATIC 4 electronic tap

Integrated batteries, stopcock Ø 15mm

Ref. 44000615

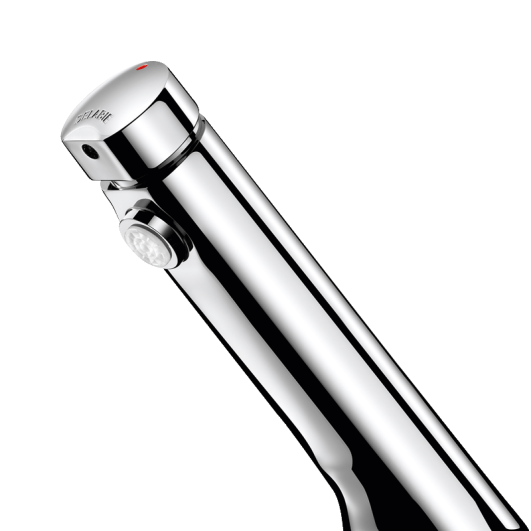

TEMPOSOFT 2 time flow tap
