DESCRIPTION

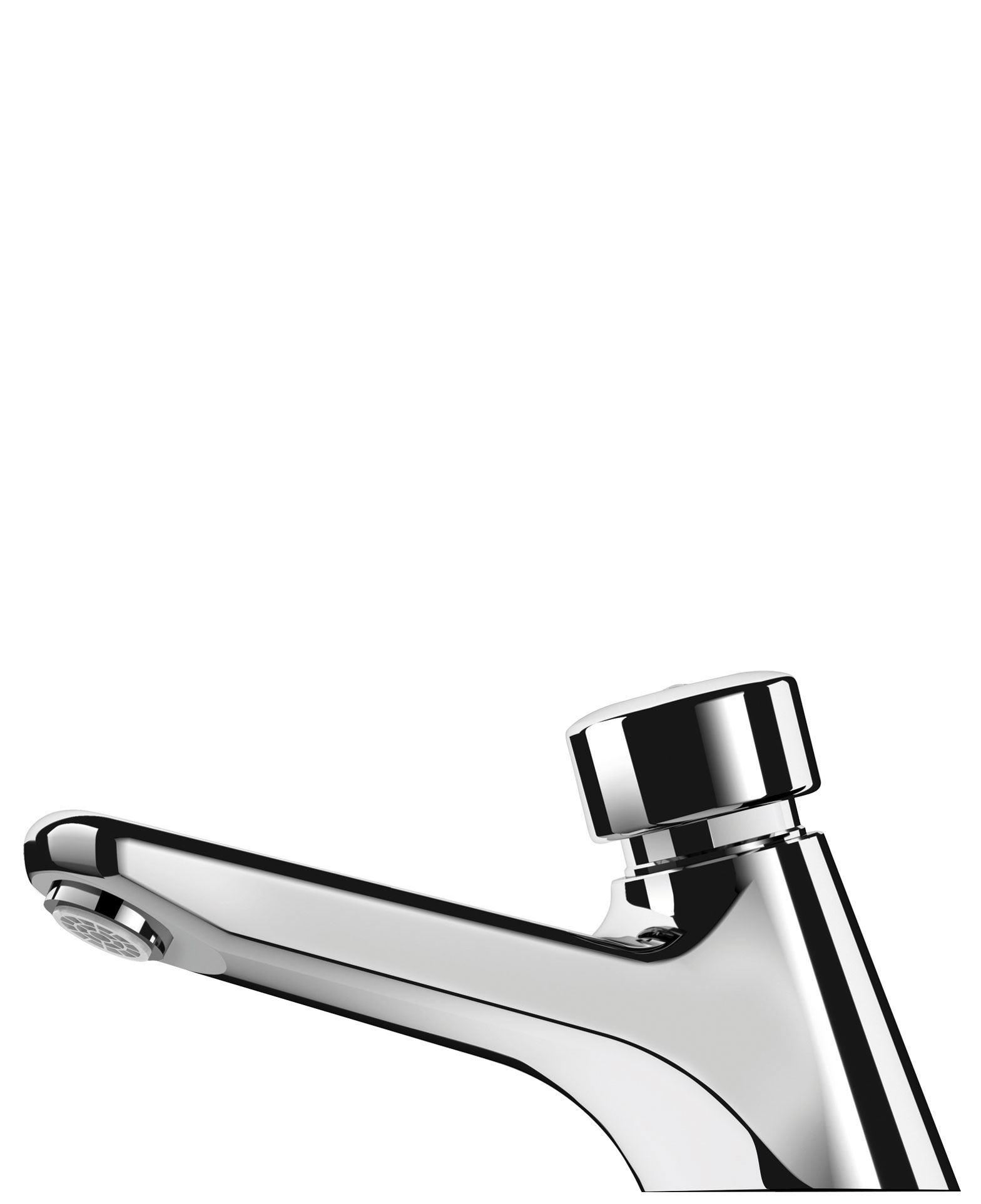

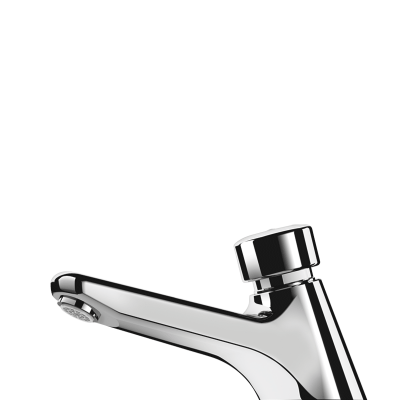

TEMPOSTOP time flow tap
Ref. 745100Deck-mounted time flow basin tap:
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Solid chrome-plated brass body M½".
Fixing with back-nut.
30-year warranty.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Solid chrome-plated brass body M½".
Fixing with back-nut.
30-year warranty.
ADVANTAGES

85% water savings

Chrome-plated solid brass

Maintenance from front without removing the tap
TECHNICAL CHARACTERISTICS
TEMPOSTOP time flow tap

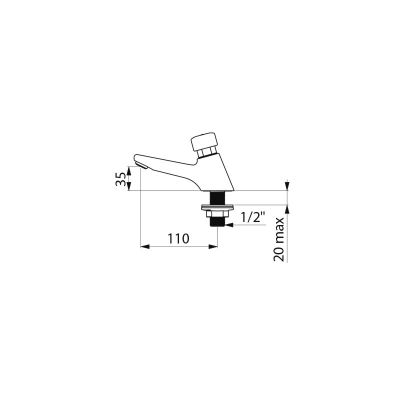

Ref. 745100Connector | M½" |
Technology | Time flow |
Drop height | 35mm |
Spout length | 110mm |
Flow rate | 3 lpm |
Certificates |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts
SPARE PARTS
TEMPOSTOP time flow tap
Ref. 745100
1. | 743005 |
|
Time flow cartridge |
2. | BJ13V |
|
Flow straightener |
VARIANTS
745101 | Fixing reinforced by back-nut - AB system | ||
---|---|---|---|
745300 | Fixing reinforced by 3 stainless steel screws | ||
745301 | Fixing reinforced by back-nut with 3 st. steel screws - AB system |
VARIANTS
745101 | Fixing reinforced by back-nut - AB system | ||
---|---|---|---|
745300 | Fixing reinforced by 3 stainless steel screws | ||
745301 | Fixing reinforced by back-nut with 3 st. steel screws - AB system |
