TEMPOFLUX 2 control plate for WCs

Ref. 578222
Soft-touch operation time flow valve, 3L/6L dual flush

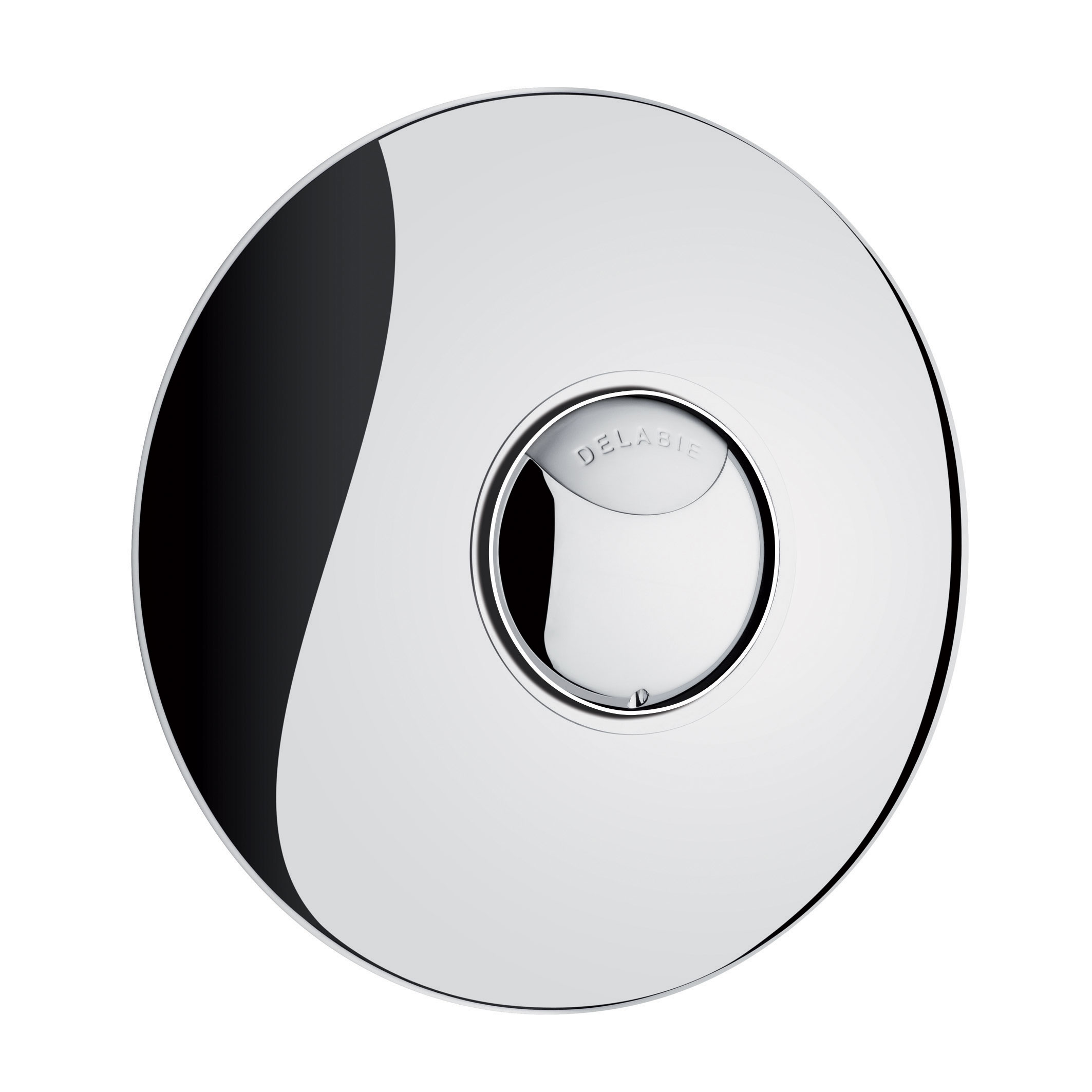

TEMPOFLUX 2 control plate for WCs

Presentation

DESCRIPTION

TEMPOFLUX 2 control plate for WCs

Ref. 578222
Control plate and TEMPOFLUX 2 time flow direct flush valve, kit 2/2:
Flush system without cistern, directly connected to pipework.
Ø 195mm chrome-plated metal wall plate with concealed fixings.
3L/6L dual flush can be adjusted to 2L/4L.
Soft-touch operation.
Vacuum breaker.
Stopcock and flow rate/volume adjuster.
Solid brass body and shock-resistant, scale-resistant mechanism.
In-line inlet M¾".
Compatible with rain water.
For walls 10 - 35mm.
Complies with European standard EN 12541 class II.
10-year warranty.

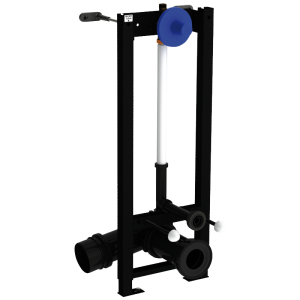

Order with frame system references 578305DE, 578300DE, 578405DE or 578400DE.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Hygiène - Anti-bactérien - BIOSAFE

Direct flush: no water stagnation

Endurance - Fiabilité

Flush is instantly available

Economie d'eau

3L/6L dual flush, can be adjusted to 2L/4L

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOFLUX 2 control plate for WCs

Ref. 578222
Connector ¾"
Technology Time flow
Depth Walls from 10 to 35mm
Flow rate 3L/6L or 2L/4L
Diameter Ø 195mm
Finish Chrome-plated metal
Certificates Logo DoP
Warranty Garantie 10 ans

Downloads

DOWNLOADS

TEMPOFLUX 2 control plate for WCs

Ref. 578222

To download one or several documents linked to this product, please select the type of file you require :

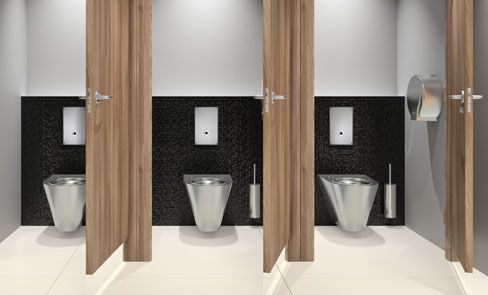

Discover the advantages of direct flush WC
Discover the advantages of direct flush WC
WC direct flush system, a public revolution
WC direct flush system, a public revolution
