Pre-rinse set with mixer

Ref. 5630
Without bib tap

Presentation

DESCRIPTION

Pre-rinse set with mixer

Ref. 5630

Complete pre-rinse set without bib tap suitable for intensive use in professional kitchens.
Deck-mounted single hole mixer with:
- valve heads with reinforced mechanisms and ergonomic control levers.
- F3/8" flexibles and non-return valves.
- reinforced fixing via 2 threaded rods with back-nuts.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" stainless steel column.
Adjustable wall bracket.
Stainless steel spring guide.
Pre-rinse set with 30-year warranty.

ADVANTAGES

Anti-torsion rotating nuts and PVC sheath

Comfort: ergonomic controls

Hygiene: PVC flexible, scale-resistant spray

Increased resistance: high quality flexible

Characteristics

TECHNICAL CHARACTERISTICS

Pre-rinse set with mixer

Ref. 5630

Connector	F3/8"
Height	1080 - 1200mm
Drop height	435-555mm
Flow rate	9 lpm via the hand spray
Width to the wall	35 - 162mm
Finish	Stainless steel
Certificates
Warranty
Repairability

Downloads

DOWNLOADS

Pre-rinse set with mixer

Ref. 5630

To download one or several documents linked to this product, please select the type of file you require :

Product file

Specification description

Lo-res JPG image

Hi-res EPS image

Line drawing

Line drawing AutoCAD DWG

BIM files

Installation guide

Certificates

Spare parts

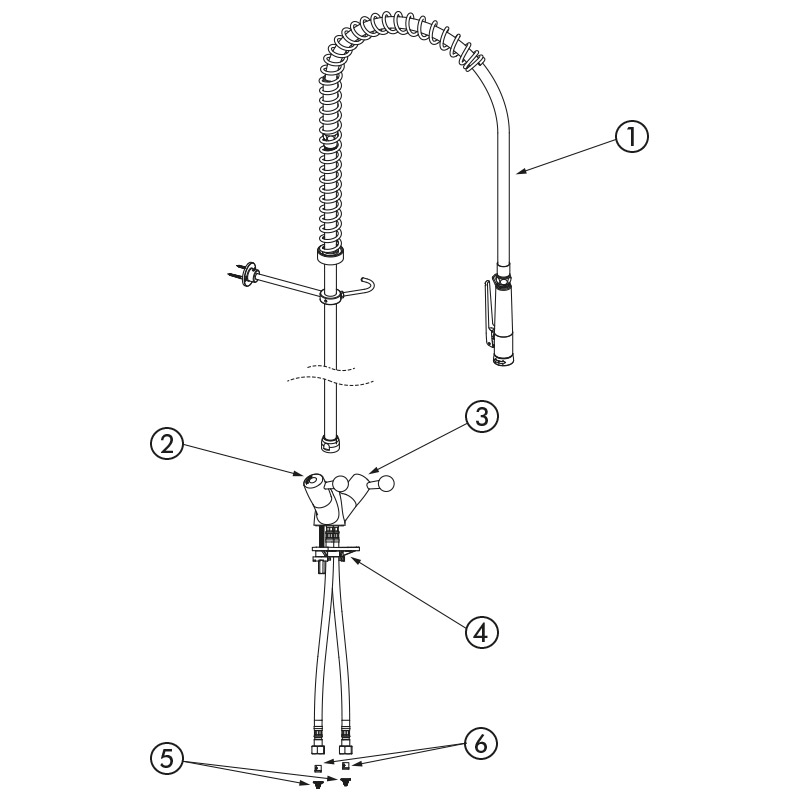

SPARE PARTS

Pre-rinse set with mixer

Ref. 5630

1.	433720	Black pre-rinse set with no valve
2.	P271AA85	Valve head 1/4 left turn
3.	P272AA85	Valve head 1/4 right turn
4.	256P	Fixing plate
5.	60438.10P	Conical filter
6.	900010	Non-return valve
