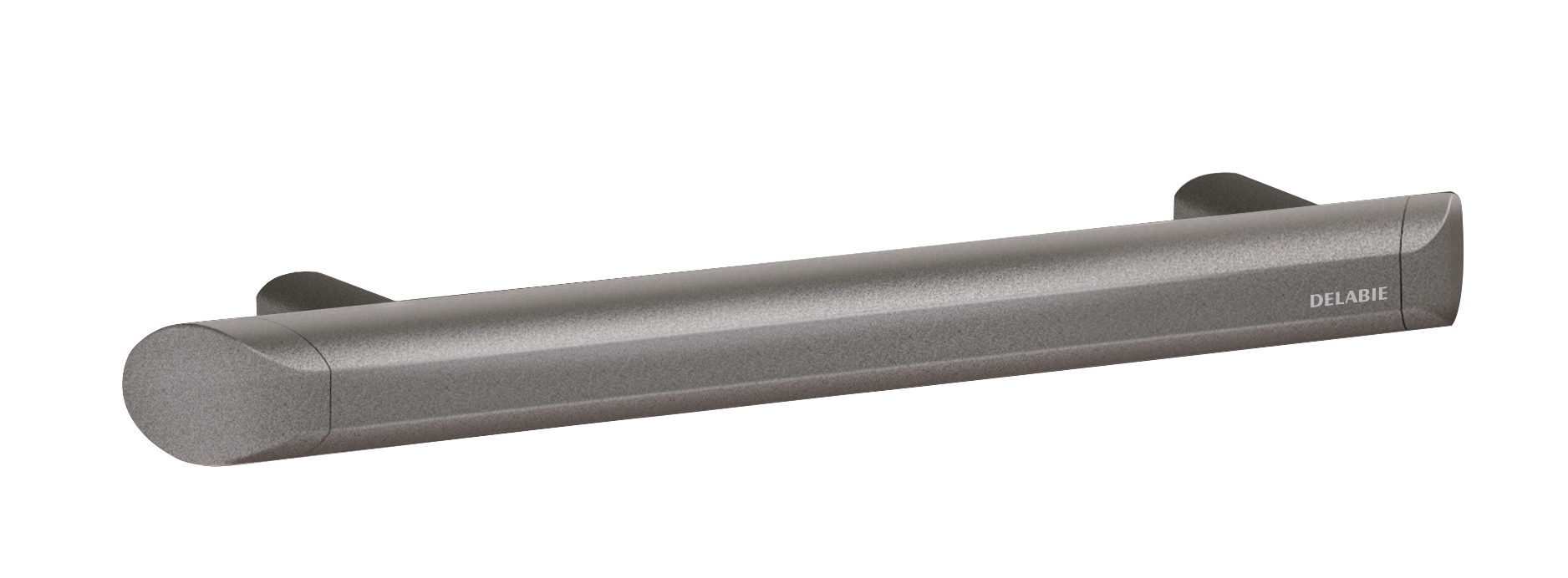

Be-Line® anthracite straight grab bar Ø 35mm, L. 400mm
Ref. 511904C
Metallised anthracite powder-coated aluminium
Metallised anthracite powder-coated aluminium
DESCRIPTION
Be-Line® anthracite straight grab bar Ø 35mm, L. 400mm
Ref. 511904CBe-Line® grab bar Ø 35mm, for people with reduced mobility.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
400mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
400mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
ADVANTAGES
Innovative design suitable for all users
Comfort: ergonomic anti-rotation surface
Tested to over 200kg
38mm gap between bar and wall: space saving
TECHNICAL CHARACTERISTICS
Be-Line® anthracite straight grab bar Ø 35mm, L. 400mm
Ref. 511904CLength | 400mm |
Diameter | Ø 35mm |
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Metallised anthracite powder-coated aluminium |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
Be-Line® anthracite straight grab bar Ø 35mm, L. 400mm
Ref. 511904C1. | 5119FIX |
|
Mounting kit for Be-Line® grab bars |
VARIANTS
511903C | Metallised anthracite powder-coated aluminium - 300mm | ||
---|---|---|---|
511905C | Metallised anthracite powder-coated aluminium - 500mm | ||
511906C | Metallised anthracite powder-coated aluminium - 600mm | ||
511909C | Metallised anthracite powder-coated aluminium - 900mm | ||
511903BK | Matte black powder-coated aluminium - 300mm | ||
511904BK | Matte black powder-coated aluminium - 400mm | ||
511905BK | Matte black powder-coated aluminium - 500mm | ||
511906BK | Matte black powder-coated aluminium - 600mm | ||
511909BK | Matte black powder-coated aluminium - 900mm | ||
511903W | Matte white powder-coated aluminium - 300mm | ||
511904W | Matte white powder-coated aluminium - 400mm | ||
511905W | Matte white powder-coated aluminium - 500mm | ||
511906W | Matte white powder-coated aluminium - 600mm | ||
511909W | Matte white powder-coated aluminium - 900mm |
VARIANTS
511903C | Metallised anthracite powder-coated aluminium - 300mm | ||
---|---|---|---|
511905C | Metallised anthracite powder-coated aluminium - 500mm | ||
511906C | Metallised anthracite powder-coated aluminium - 600mm | ||
511909C | Metallised anthracite powder-coated aluminium - 900mm | ||
511903BK | Matte black powder-coated aluminium - 300mm | ||
511904BK | Matte black powder-coated aluminium - 400mm | ||
511905BK | Matte black powder-coated aluminium - 500mm | ||
511906BK | Matte black powder-coated aluminium - 600mm | ||
511909BK | Matte black powder-coated aluminium - 900mm | ||
511903W | Matte white powder-coated aluminium - 300mm | ||
511904W | Matte white powder-coated aluminium - 400mm | ||
511905W | Matte white powder-coated aluminium - 500mm | ||
511906W | Matte white powder-coated aluminium - 600mm | ||
511909W | Matte white powder-coated aluminium - 900mm |
