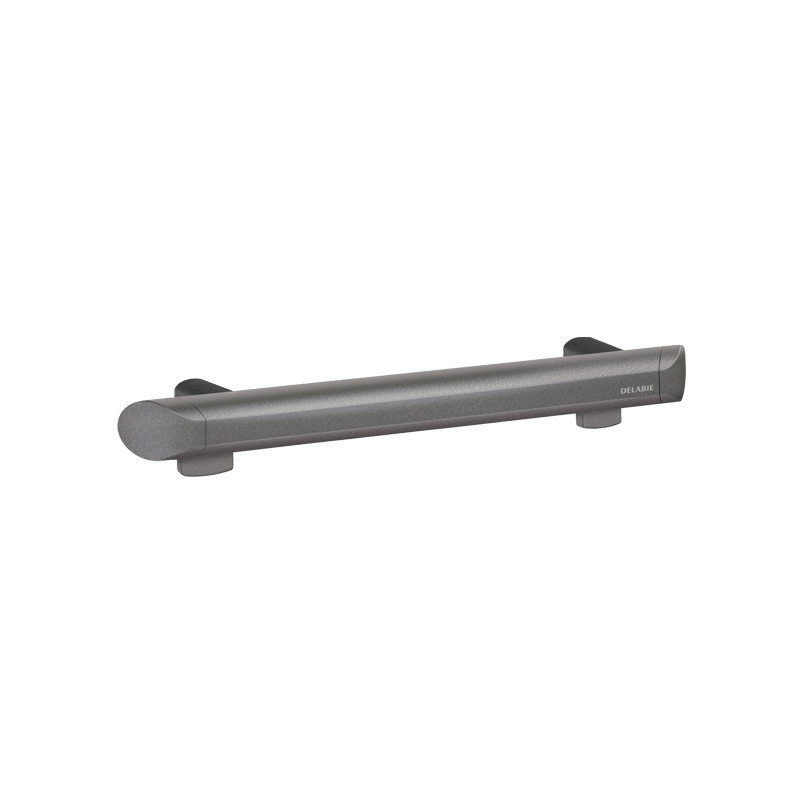

Be-Line® DOC M grab bar anthracite, 450mm

Ref. 511904MC
Metallised anthracite powder-coated aluminium
Be-Line® DOC M grab bar anthracite, 450mm

Presentation

DESCRIPTION

Be-Line® DOC M grab bar anthracite, 450mm

Ref. 511904MC
Be-Line® DOC M grab bar Ø 35mm, for people with reduced mobility.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface is easy to clean and maintain.
60mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
450mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
DOC M compliant.

ADVANTAGES

Design

Innovative design for all

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic anti-rotation surface

Sécurité

Tested to over 200kg

Universel

DOC M compliant

Characteristics

TECHNICAL CHARACTERISTICS

Be-Line® DOC M grab bar anthracite, 450mm

Ref. 511904MC
Length 450mm
Diameter Ø 35mm
Width to the wall 60mm
Thickness 3mm
Finish Metallised anthracite powder-coated aluminium
Warranty 30-Year

Downloads

DOWNLOADS

Be-Line® DOC M grab bar anthracite, 450mm

Ref. 511904MC

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

511904MW Matte white powder-coated aluminium - 450mm
511906MC Metallised anthracite powder-coated aluminium - 600mm
511906MW Matte white powder-coated aluminium - 600mm
