DESCRIPTION

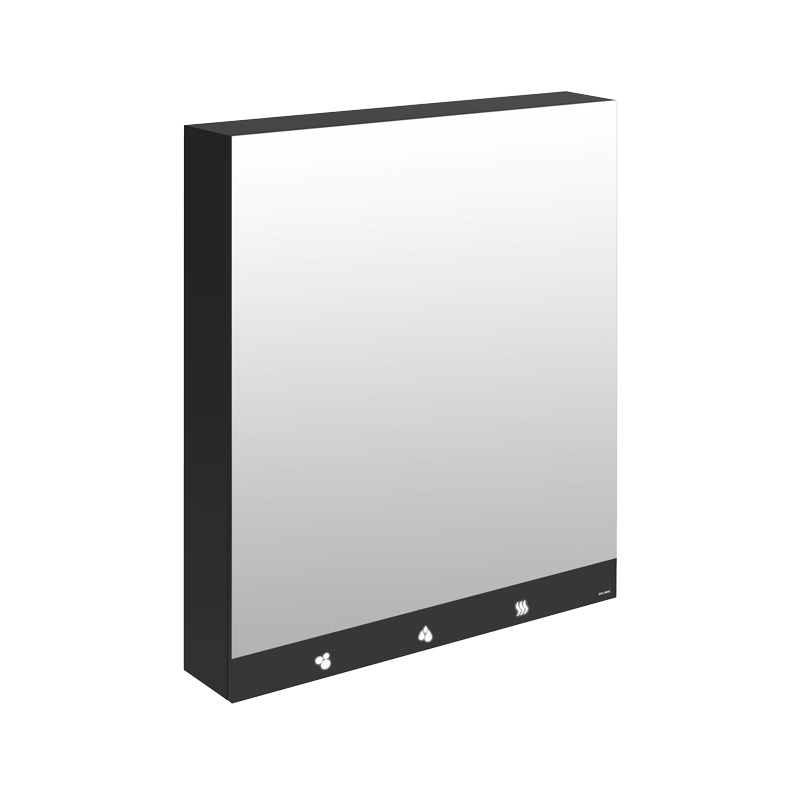

Mirror cabinet with 4 functions
Ref. 510204Mirror cabinet with 4 functions: mirror, electronic tap, soap dispenser and electrical hand dryer.
304 stainless steel designer cabinet with a matte black melamine finish.
Touch-free for improved hygiene: soap dispenser, tap and hand dryer are activated automatically when hands are detected by infrared sensor.
Quick and easy to install:
- A single electrical connection for all the elements: mains supply with 230V / 50-60Hz.
- Connects to the water supply from the top or from inside the cabinet.
- Water connection in M3/8".
- Concealed fixings. Mirror cabinet supplied with stainless steel screws for concrete or reinforced wood.
- Adjustable hinges.
Unit with 4 functions:
4mm thick glass mirror and black glass strip with illuminated pictograms.
Automatic soap dispenser:
- No-waste pump dispenser
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specific foam soap.
Electronic basin tap*:
- Reduced stagnation solenoid valve.
- Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
- Scale-resistant flow straightener.
- Duty flush (~60 seconds every 24 hours after the last use).
- Stopcock.
Air-pulse hand dryer:
- High speed: dries in 10 - 12 seconds.
- Pulsed air at 360km/h. Airflow: 36 l/second.
- Low energy consumption: 704W.
- Noise level: 74 dBA.
- Class I, IP23.
- 3-year warranty.
Basin lit by the LED strip.
Vandal-resistant model with standard DELABIE key.
Anti-blocking: stops automatically if used continuously.
Internal storage shelf.
Several cabinets can be installed side-by-side to create a mirror wall: linking screws are provided.
Dimensions: 800 x 223 x 1,000mm.
Weight: 39kg.
Mirror cabinet with 30-year warranty.
CE marked.
* We recommend a PREMIX mixer.
304 stainless steel designer cabinet with a matte black melamine finish.
Touch-free for improved hygiene: soap dispenser, tap and hand dryer are activated automatically when hands are detected by infrared sensor.
Quick and easy to install:
- A single electrical connection for all the elements: mains supply with 230V / 50-60Hz.
- Connects to the water supply from the top or from inside the cabinet.
- Water connection in M3/8".
- Concealed fixings. Mirror cabinet supplied with stainless steel screws for concrete or reinforced wood.
- Adjustable hinges.
Unit with 4 functions:
4mm thick glass mirror and black glass strip with illuminated pictograms.
Automatic soap dispenser:
- No-waste pump dispenser
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specific foam soap.
Electronic basin tap*:
- Reduced stagnation solenoid valve.
- Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
- Scale-resistant flow straightener.
- Duty flush (~60 seconds every 24 hours after the last use).
- Stopcock.
Air-pulse hand dryer:
- High speed: dries in 10 - 12 seconds.
- Pulsed air at 360km/h. Airflow: 36 l/second.
- Low energy consumption: 704W.
- Noise level: 74 dBA.
- Class I, IP23.
- 3-year warranty.
Basin lit by the LED strip.
Vandal-resistant model with standard DELABIE key.
Anti-blocking: stops automatically if used continuously.
Internal storage shelf.
Several cabinets can be installed side-by-side to create a mirror wall: linking screws are provided.
Dimensions: 800 x 223 x 1,000mm.
Weight: 39kg.
Mirror cabinet with 30-year warranty.
CE marked.
* We recommend a PREMIX mixer.
ADVANTAGES
4 functions
Matte black and 304 st. steel designer cabinet
Hygiene: touch-free
One single electrical supply for all elements
TECHNICAL CHARACTERISTICS
Mirror cabinet with 4 functions
Ref. 510204Supply | Mains: 230V / 50-60Hz |
Connector | M3/8" |
Technology | Electronic |
Height | 1,000mm |
Depth | 223mm |
Width | 800mm |
Flow rate | Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 9 lpm |
Thickness | Glass mirror: 4mm |
Finish | 304 stainless steel with a matte black melamine finish |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
Mirror cabinet with 4 functions
Ref. 5102041. | 222429 |
|
Service key |
2. | 495606 |
|
Solenoid valve |
3. | SER5102V |
|
Lock with key |
VARIANTS
510206 | With paper towel dispenser - 800mm |
---|
VARIANTS
510206 | With paper towel dispenser - 800mm |
---|
