Mirror cabinet with 3 functions

Ref. 510210
Mirror, electronic soap dispenser and paper towel dispenser

Presentation

DESCRIPTION

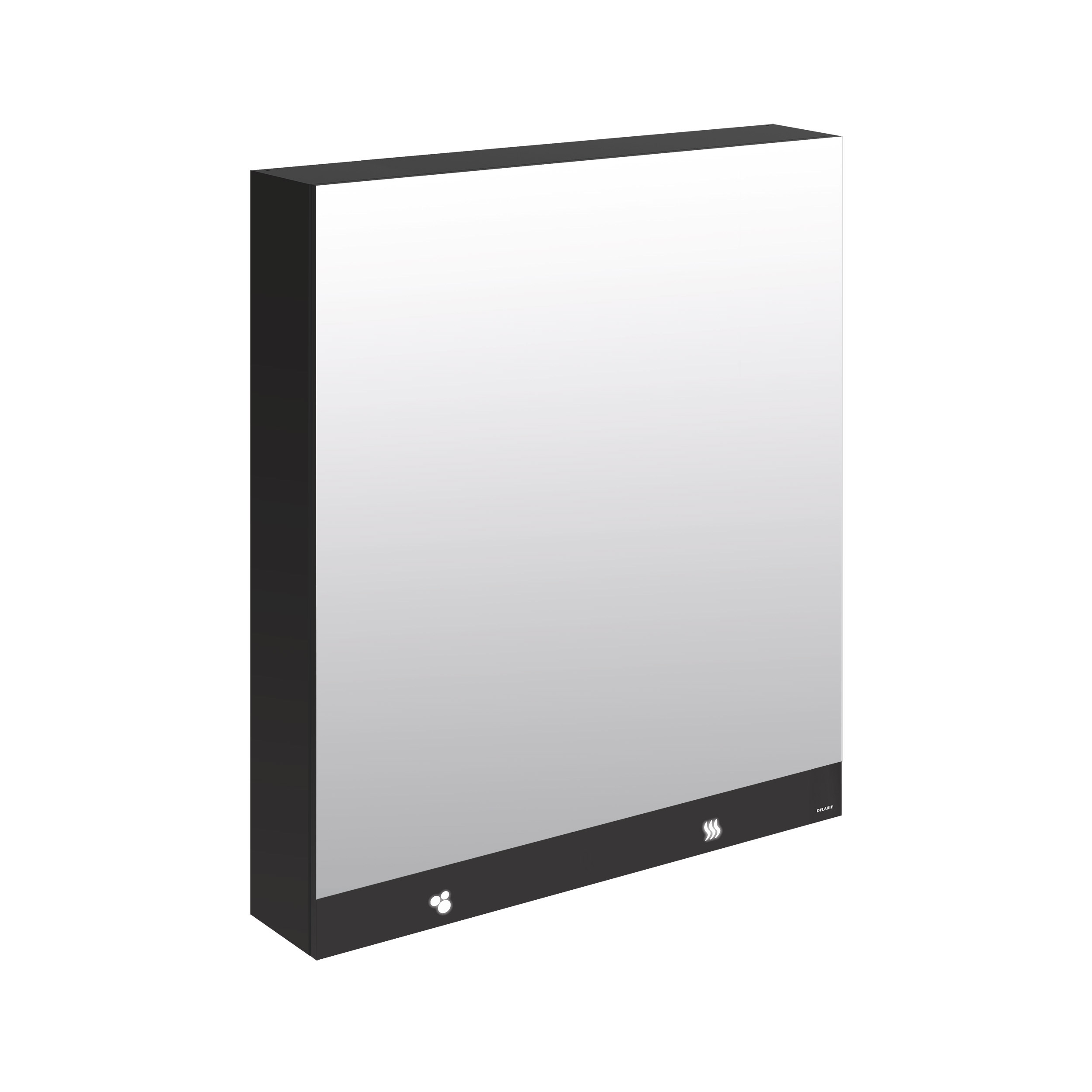

Mirror cabinet with 3 functions

Ref. 510210
Mirror cabinet with 3 functions: mirror, electronic soap dispenser and paper towel dispenser.
Designer cabinet with a matte black melamine and 304 stainless steel finish.
Touch-free for improved hygiene: electronic soap dispenser.
Quick and easy to install:
- A single electrical connection for all the elements: mains supply with 230V / 50-60Hz.
- Concealed fixings. Mirror cabinet supplied with stainless steel screws for concrete or reinforced wood.
- Adjustable hinges.
Unit with 3 functions:
4mm thick glass mirror and black glass strip with illuminated pictograms.
Automatic soap dispenser:
- No-waste pump dispenser.
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specific foam soap.
Paper towel dispenser:
- Dispenses one sheet at a time.
- Dimensions: 120 x 275 x 360mm.
- Contents: 500 sheets.
Basin lit by the LED strip.
Vandal-resistant model with standard DELABIE key.
Anti-blocking: stops automatically if used continuously.
Internal storage shelf.

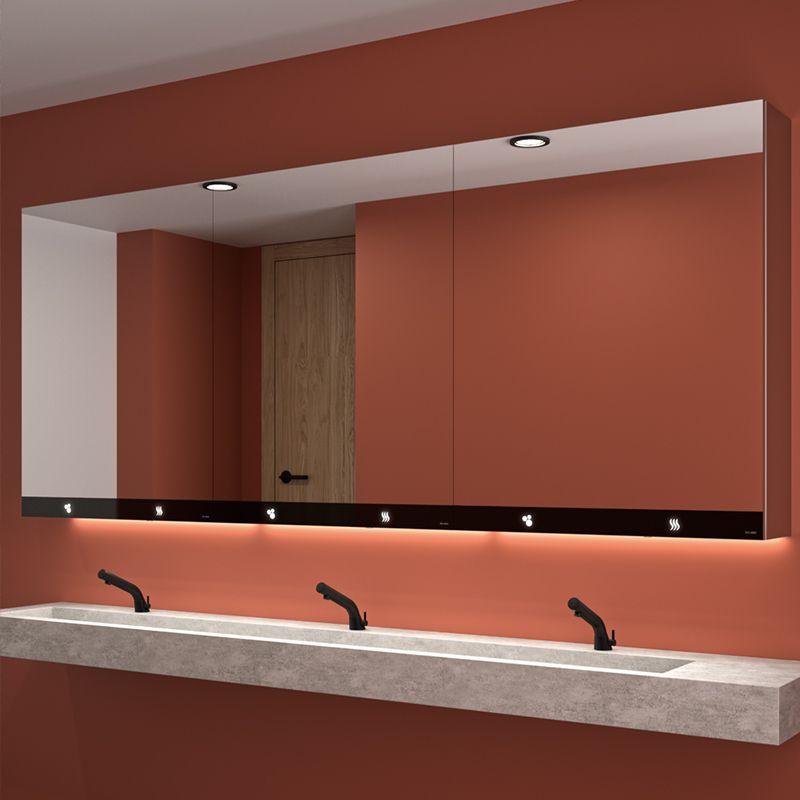

Several cabinets can be installed side-by-side to create a mirror wall: linking screws are provided.

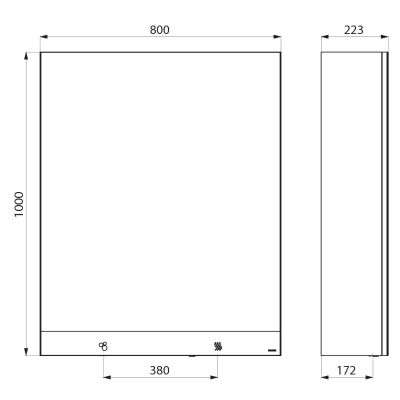

Dimensions: 800 x 223 x 1,000mm.
Weight: 38.5kg.
Mirror cabinet with 30-year warranty.
CE marked.

ADVANTAGES

Universel

3 functions

Design

Design: matte black and 304 st. steel finish

Sans contact manuel

Hygiene: touch-free

Secteur

One single electrical supply for all elements

Characteristics

TECHNICAL CHARACTERISTICS

Mirror cabinet with 3 functions

Ref. 510210
Supply Mains: 230V / 50-60Hz
Technology Electonic
Height 1000mm
Depth 223mm
Width 800mm
Thickness Glass mirror: 4mm
Finish Matte black melamine and 304 stainless steel
Certificates CE
Warranty 30-Year

Downloads

DOWNLOADS

Mirror cabinet with 3 functions

Ref. 510210

To download one or several documents linked to this product, please select the type of file you require :
