Ref. 50509S
UltraSatin polished satin stainless steel
14 variants
5050P2 -
Bright polished stainless steel UltraPolish - Ø 32, 300mm centres
50504P2 -
Bright polished stainless steel UltraPolish - Ø 32, 400mm centres
50505P2 -
Bright polished stainless steel UltraPolish - Ø 32, 500mm centres
50506P2 -
Bright polished stainless steel UltraPolish - Ø 32, 600mm centres
50509P2 -
Bright polished stainless steel UltraPolish - Ø 32, 900mm centres
5050S -
Polished satin stainless steel UltraSatin - Ø 32, 300mm centres
50504S -
Polished satin stainless steel UltraSatin - Ø 32, 400mm centres
50505S -
Polished satin stainless steel UltraSatin - Ø 32, 500mm centres
50506S -
Polished satin stainless steel UltraSatin - Ø 32, 600mm centres
50510S -
Polished satin stainless steel UltraSatin - Ø 32, 1,050mm centres
5055P2 -
Bright polished stainless steel UltraPolish - Ø 25, 300mm centres
5057P2 -
Bright polished stainless steel UltraPolish - Ø 25, 500mm centres
5058P2 -
Bright polished stainless steel UltraPolish - Ø 25, 600mm centres
5059P2 -
Bright polished stainless steel UltraPolish - Ø 25, 900mm centres

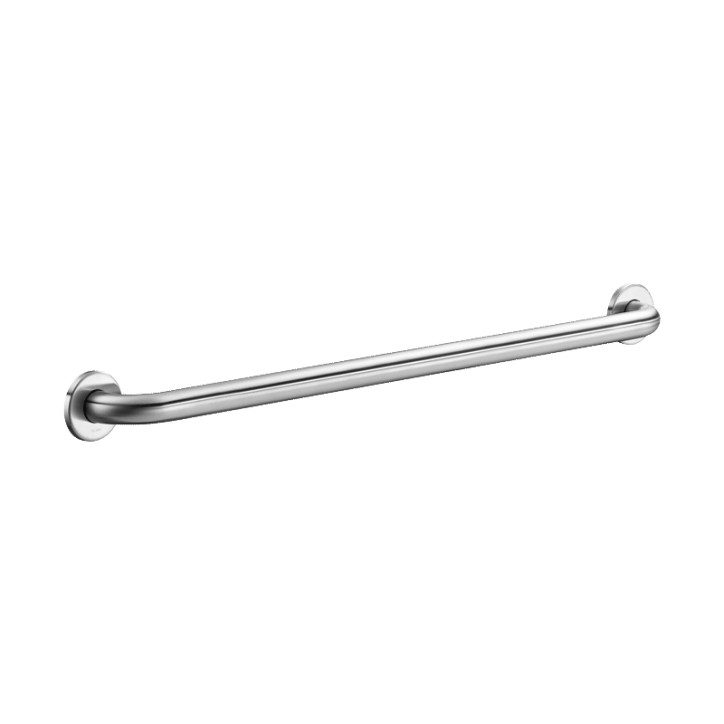

Straight stainless steel grab bar, satin, Ø 32mm, 900mm
Ref. 50509S
Straight grab bar for people with reduced mobility.
Tube Ø 32mm, 900mm centres.
For use as a handrail and grab or support bar for WCs, showers or baths.
Straight grab bar made from bacteriostatic 304 stainless steel tube.
UltraSatin polished satin stainless steel, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit").
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings, secured to wall by a 3-hole, 304 stainless steel plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
Tube Ø 32mm, 900mm centres.
For use as a handrail and grab or support bar for WCs, showers or baths.
Straight grab bar made from bacteriostatic 304 stainless steel tube.
UltraSatin polished satin stainless steel, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit").
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings, secured to wall by a 3-hole, 304 stainless steel plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
Advantages
Straight stainless steel grab bar, satin, Ø 32mm, 900mm
Ref. 50509S

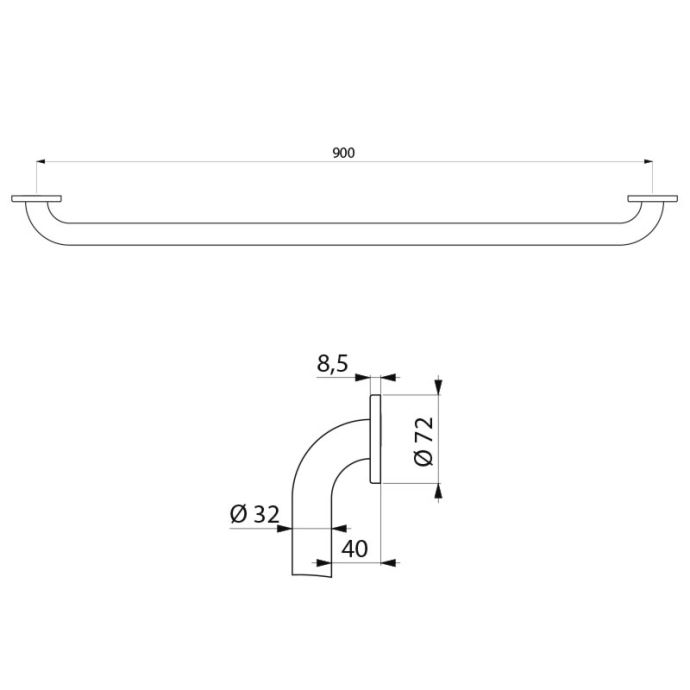

Length
900mm
Diameter 32mm
Width to the wall 40mm
Finish 304 stainless steel UltraSatin polished satin
Certificates
Warranty
Diameter 32mm
Width to the wall 40mm
Finish 304 stainless steel UltraSatin polished satin
Certificates
Warranty
Straight stainless steel grab bar, satin, Ø 32mm, 900mm
Ref. 50509S
To download one or several documents linked to this product, please select the type of file you require

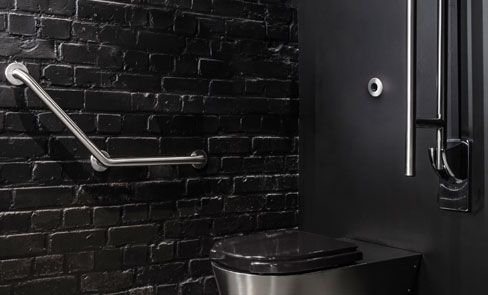

Standards and regulations for disabled toilets
