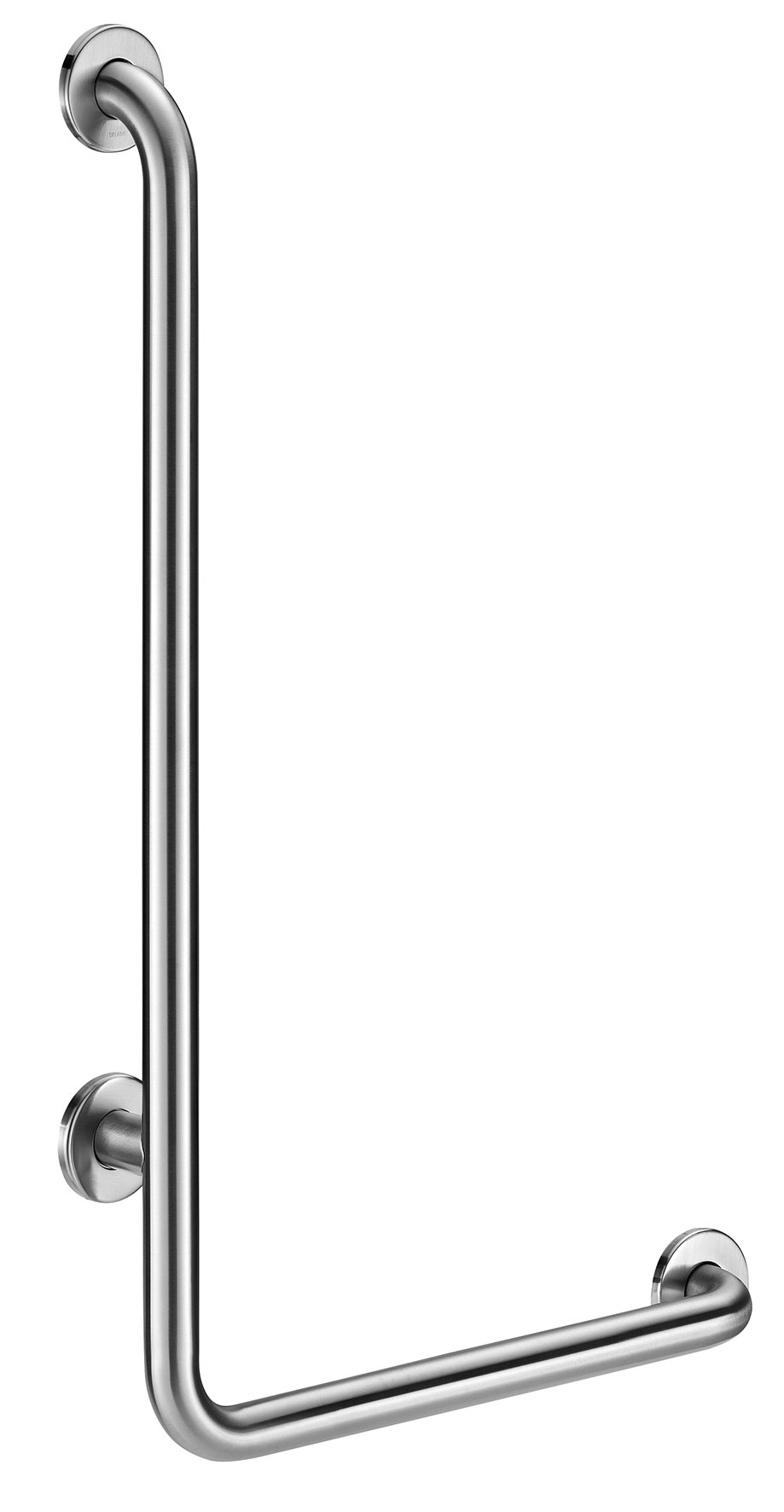

L-shaped stainless steel grab bar, satin, H. 750mm
                        Ref.  5070DS

UltraSatin polished satin stainless steel, right model
                    UltraSatin polished satin stainless steel, right model
DESCRIPTION
L-shaped stainless steel grab bar, satin, H. 750mm
Ref. 5070DSL-shaped grab bar Ø 32mm, for PRM, right model.
Helps the user stand and secures movement in the bath or shower.
Can be used as a shower rail by adding a shower head holder and/or soap dish.
Dimensions: 750 x 450mm.
Tube thickness: 1.5mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit”).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Fixings concealed by a 3-hole cover plate, 304 stainless steel, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
Bar comes with 30-year warranty. CE marked.
            Helps the user stand and secures movement in the bath or shower.
Can be used as a shower rail by adding a shower head holder and/or soap dish.
Dimensions: 750 x 450mm.
Tube thickness: 1.5mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit”).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Fixings concealed by a 3-hole cover plate, 304 stainless steel, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
Bar comes with 30-year warranty. CE marked.
ADVANTAGES

304 stainless steel: reduces bacterial development

Tested to over 200kg

40mm gap between bar and wall: minimal space

UltraSatin: smooth surface is easy to clean
TECHNICAL CHARACTERISTICS
L-shaped stainless steel grab bar, satin, H. 750mm
Ref. 5070DS| Height | 750mm |
| Length | 450mm |
| Diameter | Ø 32mm |
| Width to the wall | 40mm |
| Finish | 304 stainless steel UltraSatin polished satin |
| Certificates |     |
| Warranty |   |
VARIANTS
| 5070DP2 | Bright polished stainless steel UltraPolish - On the right, H.750mm | ||
|---|---|---|---|
| 5070GP2 | Bright polished stainless steel UltraPolish - On the left, H.750mm | ||
| 5070GS | Polished satin stainless steel UltraSatin - On the left, H.750mm | ||
| 5071DP2 | Bright polished stainless steel UltraPolish - On the right, H.1,150mm | ||
| 5071GP2 | Bright polished stainless steel UltraPolish - On the left, H.1,150mm | ||
| 5071DS | Polished satin stainless steel UltraSatin - On the right, H.1,150mm | ||
| 5071GS | Polished satin stainless steel UltraSatin - On the left, H.1,150mm |
VARIANTS
| 5070DP2 | Bright polished stainless steel UltraPolish - On the right, H.750mm | ||
|---|---|---|---|
| 5070GP2 | Bright polished stainless steel UltraPolish - On the left, H.750mm | ||
| 5070GS | Polished satin stainless steel UltraSatin - On the left, H.750mm | ||
| 5071DP2 | Bright polished stainless steel UltraPolish - On the right, H.1,150mm | ||
| 5071GP2 | Bright polished stainless steel UltraPolish - On the left, H.1,150mm | ||
| 5071DS | Polished satin stainless steel UltraSatin - On the right, H.1,150mm | ||
| 5071GS | Polished satin stainless steel UltraSatin - On the left, H.1,150mm |
