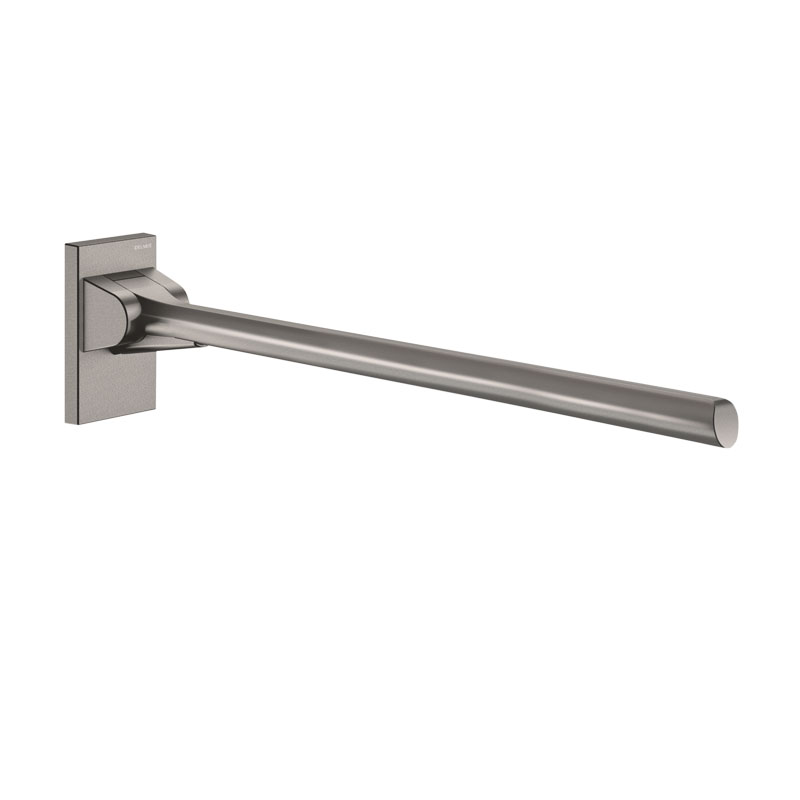

Be-Line drop-down support rail, L. 650mm, anthracite

Ref. 511960C
Powder-coated metallised anthracite
Be-Line drop-down support rail, L. 650mm, anthracite

Presentation

DESCRIPTION

Be-Line drop-down support rail, L. 650mm, anthracite

Ref. 511960C
Provisional availability 2nd half
2020
.
Please contact the sales office to check availability.
Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCS or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Slowed down descent. Retained in upright position.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 650 x 210 x 120mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
10-year warranty.
CE marked.

ADVANTAGES

Design

Innovative design suitable for all users

Universel

Removable: easy to unclip

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic flat face prevents rotation

Sécurité

Tested to over 200kg

Characteristics

TECHNICAL CHARACTERISTICS

Be-Line drop-down support rail, L. 650mm, anthracite

Ref. 511960C
Height 210mm
Length 650mm
Width 120mm
Finish Powder-coated metallised anthracite aluminium
Certificates Logo CE
Warranty Garantie 10 ans

Downloads

DOWNLOADS

Be-Line drop-down support rail, L. 650mm, anthracite

Ref. 511960C

To download one or several documents linked to this product, please select the type of file you require :
