TEMPOMATIC 4 deck-mounted electronic soap dispenser

Ref. 512531P
Liquid or foam soap or hydroalcoholic gel dispenser
See variants See variants
TEMPOMATIC 4 deck-mounted electronic soap dispenser

Presentation

DESCRIPTION

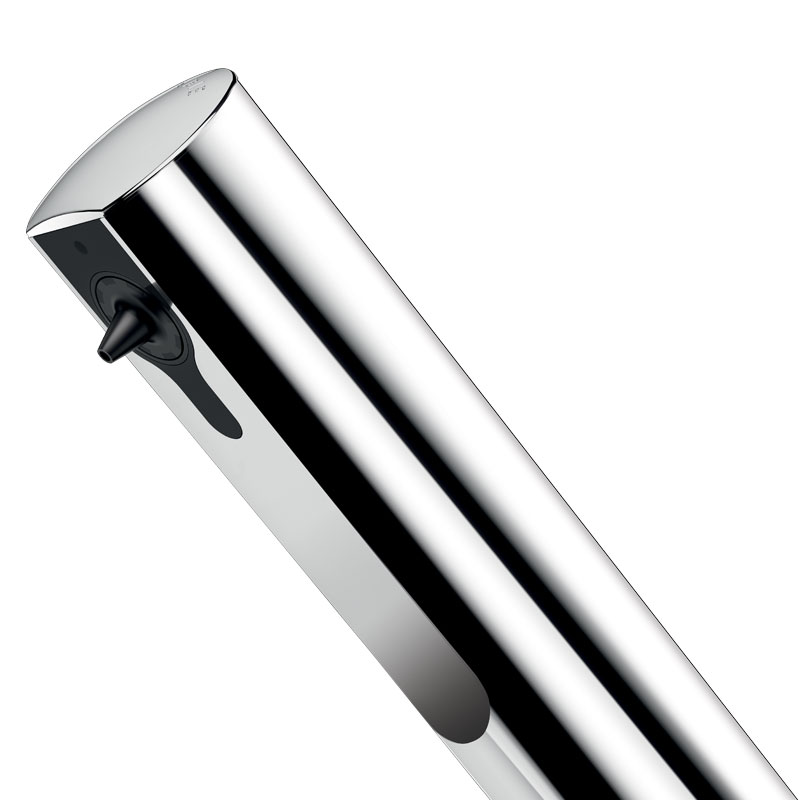

TEMPOMATIC 4 deck-mounted electronic soap dispenser

Ref. 512531P
Deck-mounted electronic soap dispenser.
Liquid soap, foam soap or hydroalcoholic gel dispenser.
No manual contact: hands are automatically detected by infrared cell.
Chrome-plated 304 stainless steel spout.
No-waste pump dispenser.
Removable, separate electronic unit and tank for installation beneath the counter top.
Automatic soap dispenser: mains supply with 230/6V transformer.
For vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or special foam soap.
Compatible with hydroalcoholic gel.
Spout length: 111 mm.
Supplied with 0.5 litre tank.
30-year warranty.
CE marked.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

Total hygiene: no manual contact

Sans contact manuel

Comfort: automatic soap dispenser

Economie d'eau

No waste pump dispenser

Universel

Liquid or foam soap or gel dispenser

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMATIC 4 deck-mounted electronic soap dispenser

Ref. 512531P
Supply 230/6V mains supply
Technology Infrared sensor
Drop height 76mm
Spout length 111mm
Volume 0.5 litre tank
Certificates Logo CE Logo PZH
Warranty 30-Year
Repairability
TEMPOMATIC 4 deck-mounted electronic soap dispenser
Ref. 512531P

Downloads

DOWNLOADS

TEMPOMATIC 4 deck-mounted electronic soap dispenser

Ref. 512531P

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

TEMPOMATIC 4 deck-mounted electronic soap dispenser

Ref. 512531P
1. 222429
Service key
2. 512BC
Electronic control unit
3. 490240
Power supply

VARIANTS

512031P Mains supply - With 1 litre tank
512131P Mains supply - With 1.2m flexible tube for remote tank
512036P Battery-operated - With 1L tank
512136P Battery-operated - With 1.20m flexible tube for remote tank
