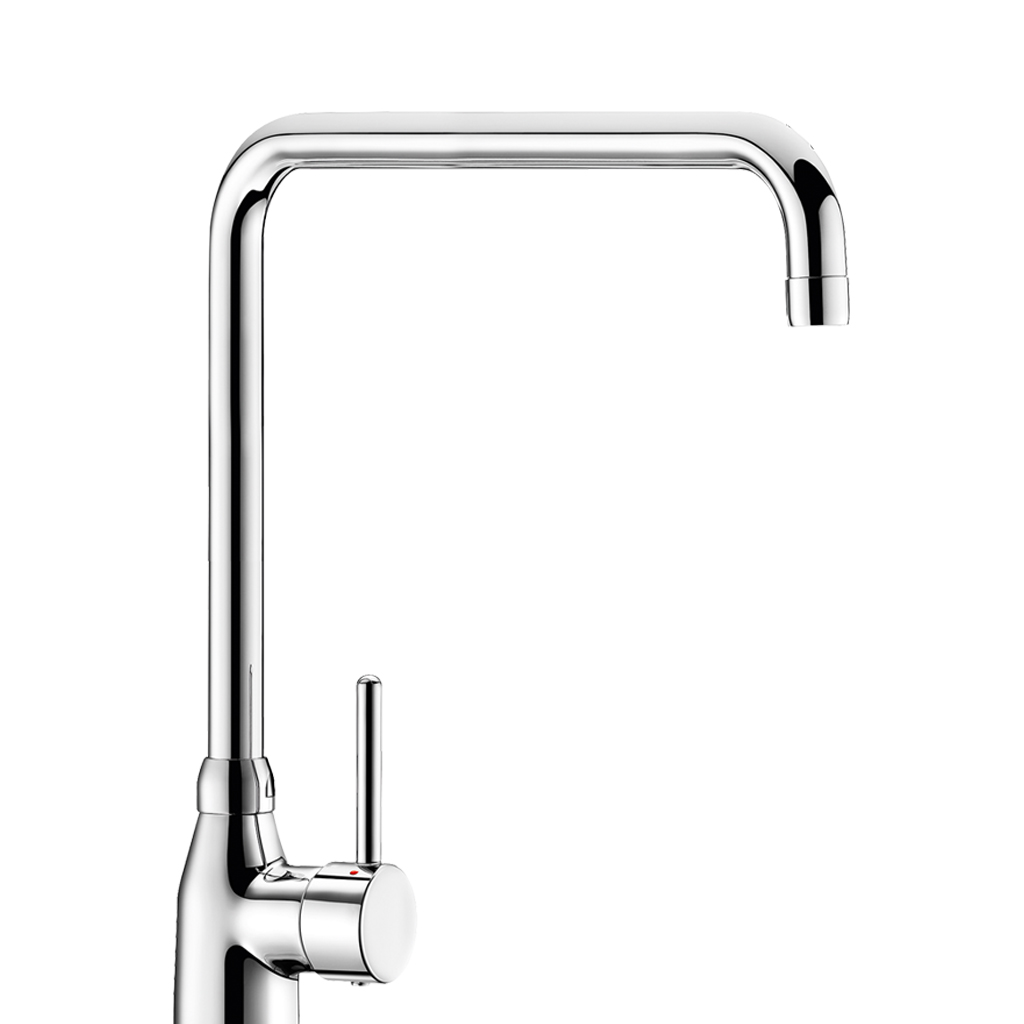

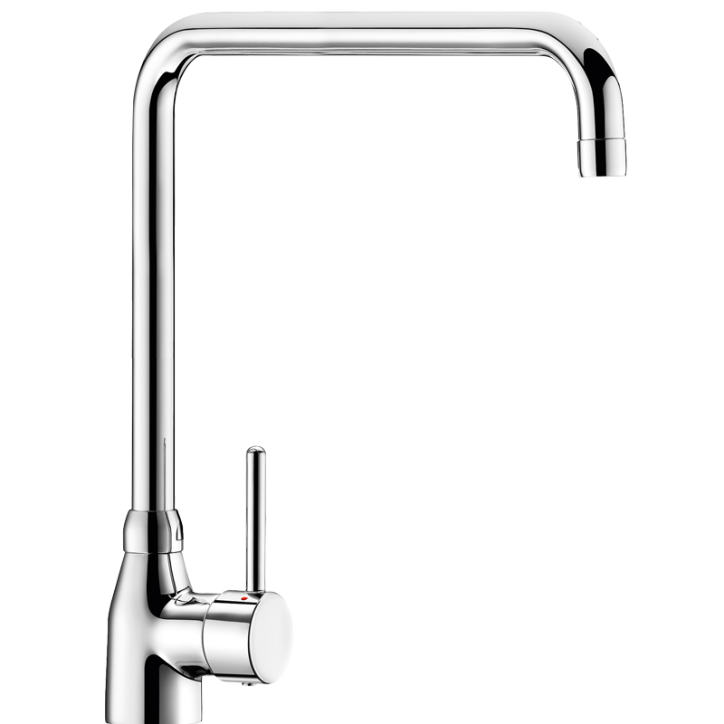

Ref. 2506T3
Swivelling tubular over spout L. 300mm H. 315mm
Deck-mounted single hole mixer - 20 lpm
Ref. 2506T3
Deck-mounted single hole mixer with swivelling, tubular spout H. 315mm L. 300mm.
Star-shaped flow straightener.
Ceramic cartridge Ø 35mm.
Flow rate 20 lpm at 3 bar.
Spout with smooth interior.
Slimline control lever.
Chrome-plated body and spout with reinforced fixing via two stainless steel rods and back-nuts.
Without pop-up waste.
Supplied with stainless steel braided PEX flexibles F3/8".
30-year warranty.
Star-shaped flow straightener.
Ceramic cartridge Ø 35mm.
Flow rate 20 lpm at 3 bar.
Spout with smooth interior.
Slimline control lever.
Chrome-plated body and spout with reinforced fixing via two stainless steel rods and back-nuts.
Without pop-up waste.
Supplied with stainless steel braided PEX flexibles F3/8".
30-year warranty.
Advantages
Deck-mounted single hole mixer - 20 lpm
Ref. 2506T3
Connector
F3/8"

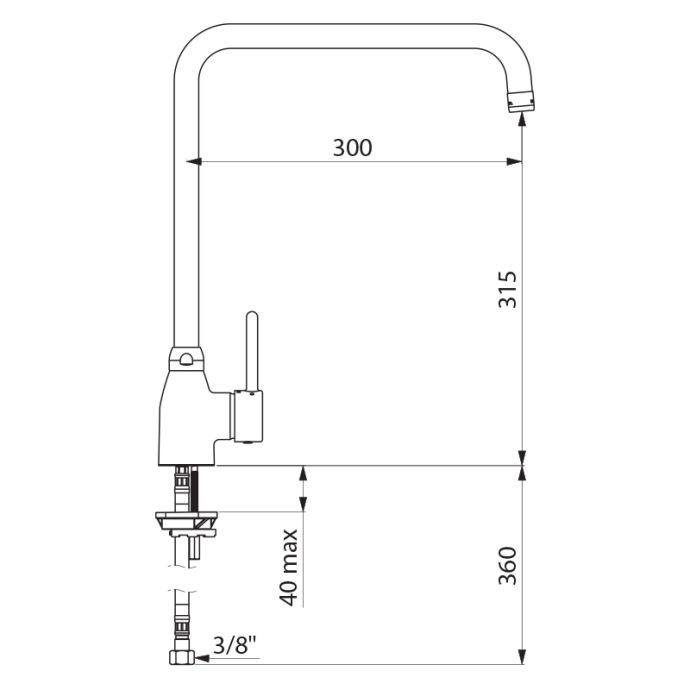

Height 380mm
Drop height 315mm
Spout length 300mm
Flow rate 20 lpm
Finish Chrome-plated brass
Certificates
Warranty
Repairability
Height 380mm
Drop height 315mm
Spout length 300mm
Flow rate 20 lpm
Finish Chrome-plated brass
Certificates
Warranty
Repairability
Deck-mounted single hole mixer - 20 lpm
Ref. 2506T3
