Ref. 39801515
Mains supply, Ø 15mm compression fittings
7 variants
388015 -
Mains supply - Spout H. 170mm - M3/8"
38801515 -
Mains supply - Spout H. 170mm - Ø15mm compression fittings
398015 -
Mains supply - Spout H. 250mm - M3/8"
488015 -
Battery operated - Spout H. 170mm - M3/8"
48801515 -
Battery operated - Spout H. 170mm - Ø15mm compression fittings
498015 -
Battery operated - Spout H. 250mm - M3/8"
49801515 -
Battery operated - Spout H.250mm - Ø15mm compression fittings

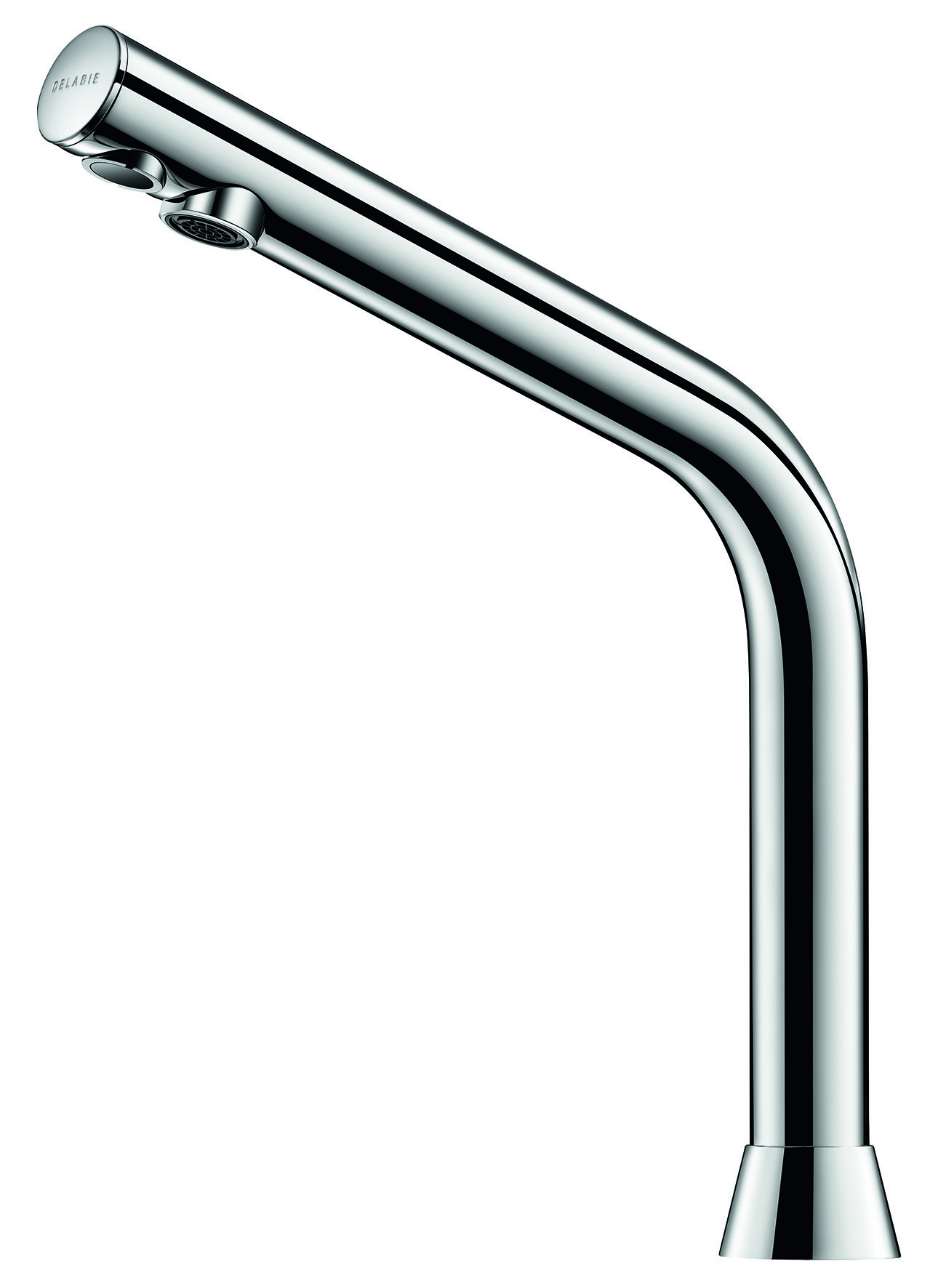

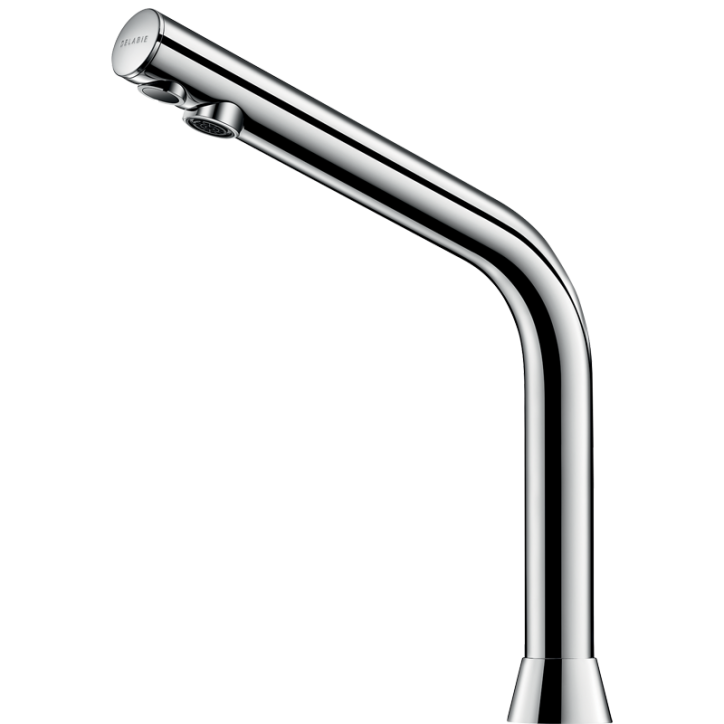

BINOPTIC electronic tap
Ref. 39801515
Deck-mounted electronic basin tap:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexible with filter and solenoid valve Ø 15mm.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Drop height: 250mm for countertop wasbasins.
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexible with filter and solenoid valve Ø 15mm.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Drop height: 250mm for countertop wasbasins.
Suitable for people with reduced mobility.
30-year warranty.
Advantages
BINOPTIC electronic tap
Ref. 39801515

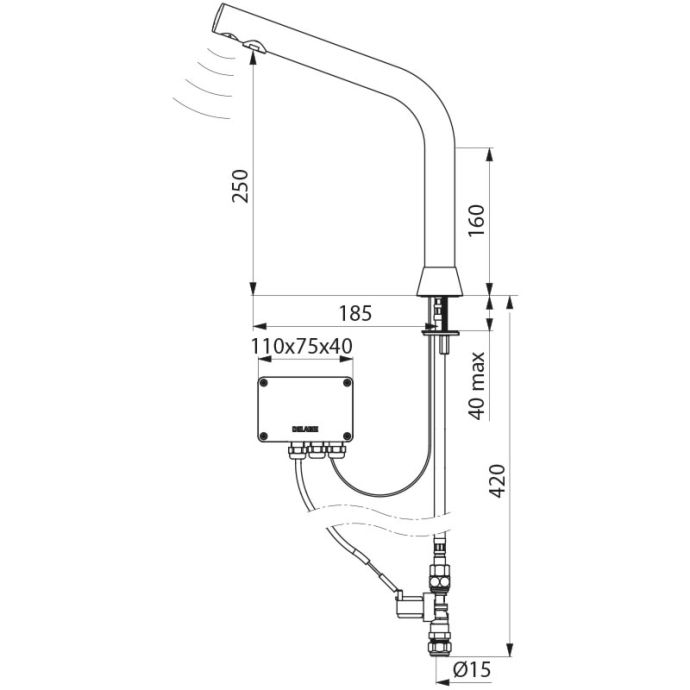

Supply
230/12V mains supply
Connector M1/2'' Ø 15
Technology Electronic
Drop height 250mm
Spout length 185mm
Flow rate 3 lpm
Certificates
Warranty
Connector M1/2'' Ø 15
Technology Electronic
Drop height 250mm
Spout length 185mm
Flow rate 3 lpm
Certificates
Warranty
BINOPTIC electronic tap
Ref. 39801515
To download one or several documents linked to this product, please select the type of file you require
Winner of the German Design Award 2019
Over 90% water savings with the BINOPTIC
