Ref. 488015
Battery-operated
7 variants
388015 -
Mains supply - Spout H. 170mm - M3/8"
38801515 -
Mains supply - Spout H. 170mm - Ø15mm compression fittings
398015 -
Mains supply - Spout H. 250mm - M3/8"
39801515 -
Mains supply - Spout H. 250mm - Ø15mm compression fittings
48801515 -
Battery operated - Spout H. 170mm - Ø15mm compression fittings
498015 -
Battery operated - Spout H. 250mm - M3/8"
49801515 -
Battery operated - Spout H.250mm - Ø15mm compression fittings

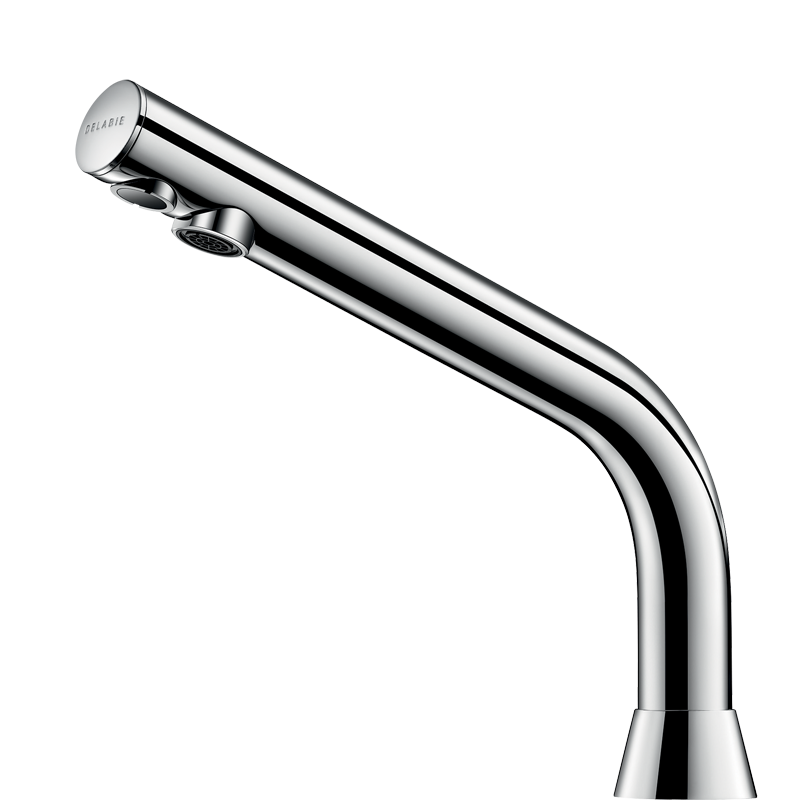

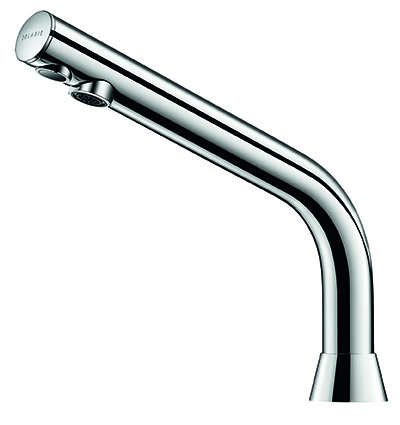

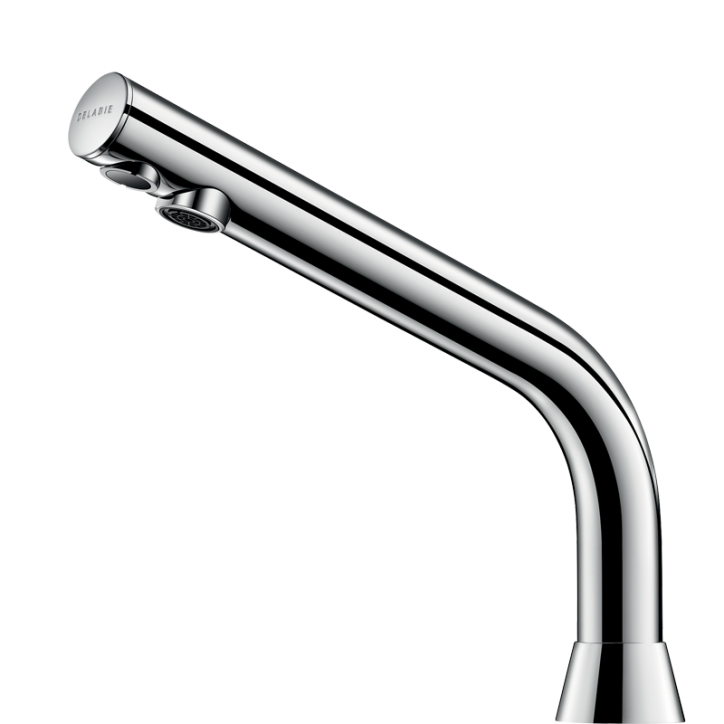

BINOPTIC electronic tap
Ref. 488015
Deck-mounted electronic basin tap:
Independent IP65 electronic control unit.
123 6V Lithium batteries.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexible with filter and solenoid valve M⅜".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Drop height: 170mm for semi-recessed washbasins.
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
123 6V Lithium batteries.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexible with filter and solenoid valve M⅜".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Drop height: 170mm for semi-recessed washbasins.
Suitable for people with reduced mobility.
30-year warranty.
Advantages
BINOPTIC electronic tap
Ref. 488015
Supply
6V battery
Connector M3/8"
Technology Electronic

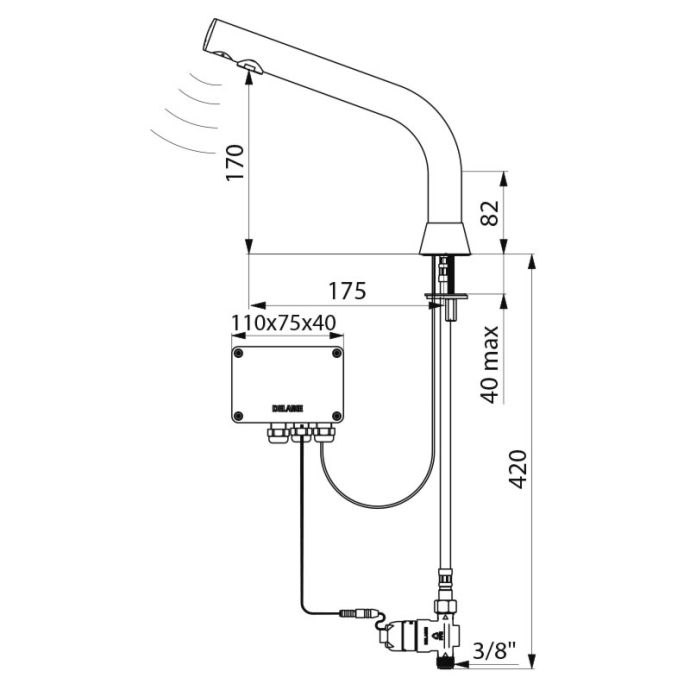

Drop height 170mm
Spout length 175mm
Flow rate 3 lpm
Certificates
Warranty
Repairability
Connector M3/8"
Technology Electronic
Drop height 170mm
Spout length 175mm
Flow rate 3 lpm
Certificates
Warranty
Repairability
BINOPTIC electronic tap
Ref. 488015
To download one or several documents linked to this product, please select the type of file you require
BINOPTIC electronic tap
Ref. 488015
Winner of the German Design Award 2019
Over 90% water savings with the BINOPTIC
