Black pre-rinse set with no valve

Ref. 433620
Without bib tap
Black pre-rinse set with no valve

Presentation

DESCRIPTION

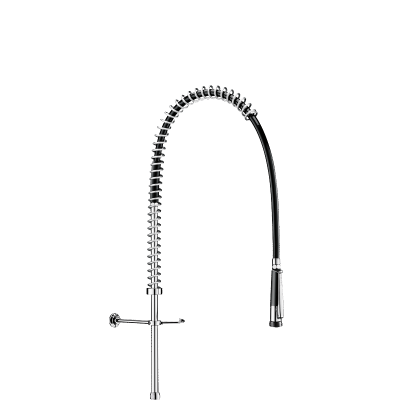

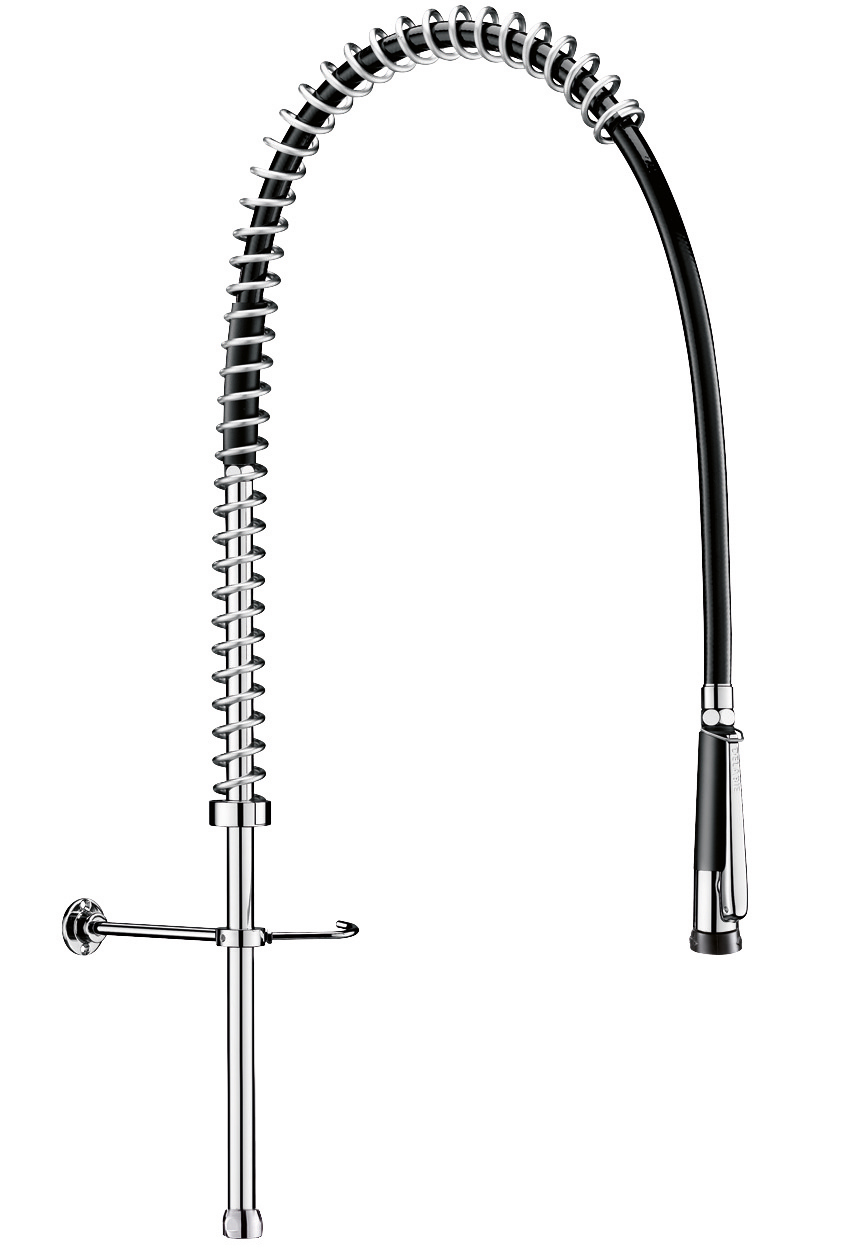

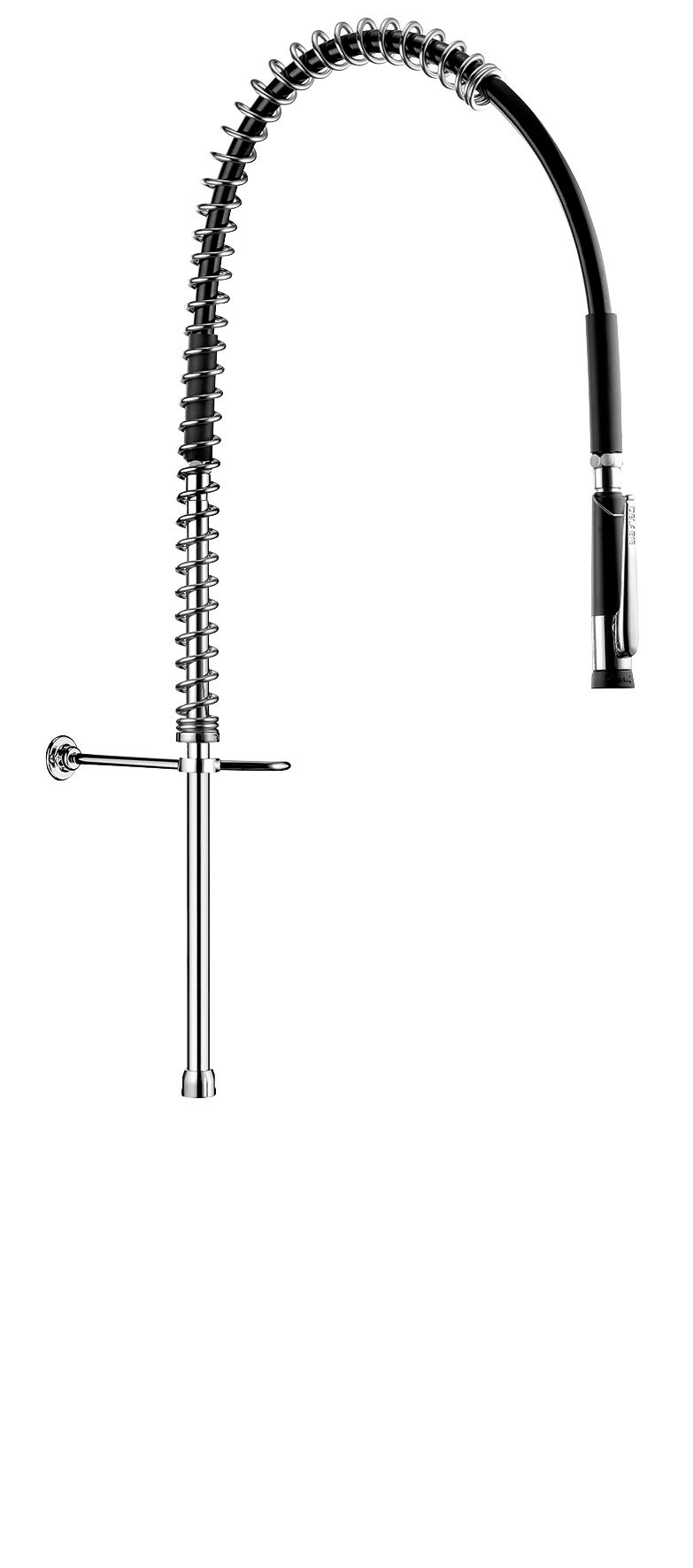

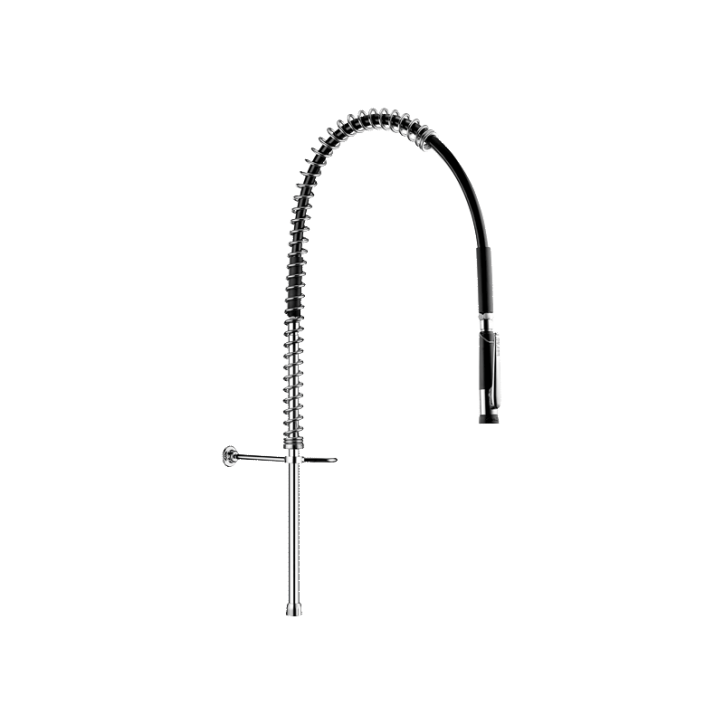

Black pre-rinse set with no valve

Ref. 433620
Black pre-rinse set without valve suitable for intensive use in professional kitchens.
Without bib tap.

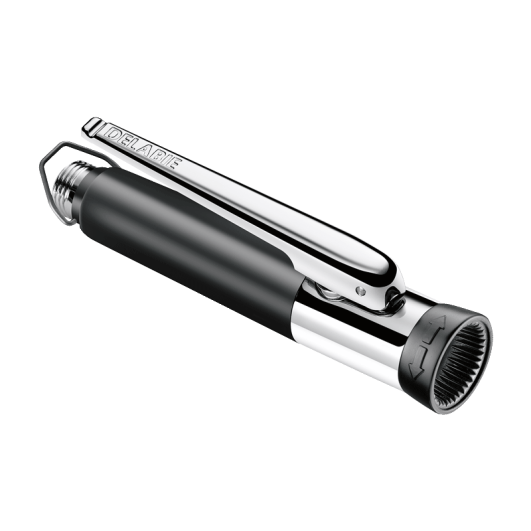

Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.

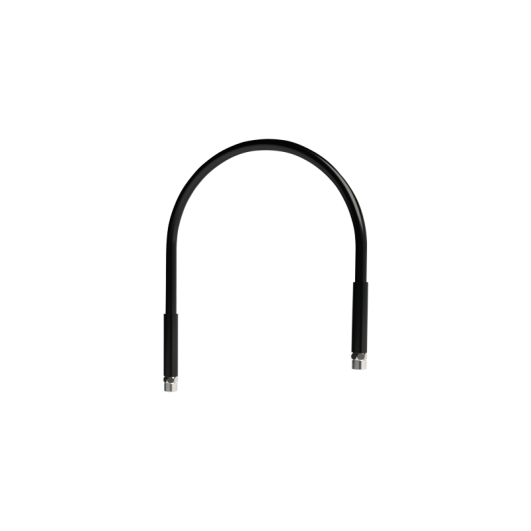

Black reinforced food-grade flexible hose L. 0.95m.
3/4" short brass column for wall-mounted water control valve.
Adjustable wall bracket.
Stainless steel spring guide.
10-year warranty.
This pre-rinse set, with no water control valve, comprises spare parts for repairing pre-rinse sets.

ADVANTAGES

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: hand spray with adjustable jet

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: Hytrel flexible, scale-resistant spray

Anti-vandalisme

Increased resistance: high quality flexible

Characteristics

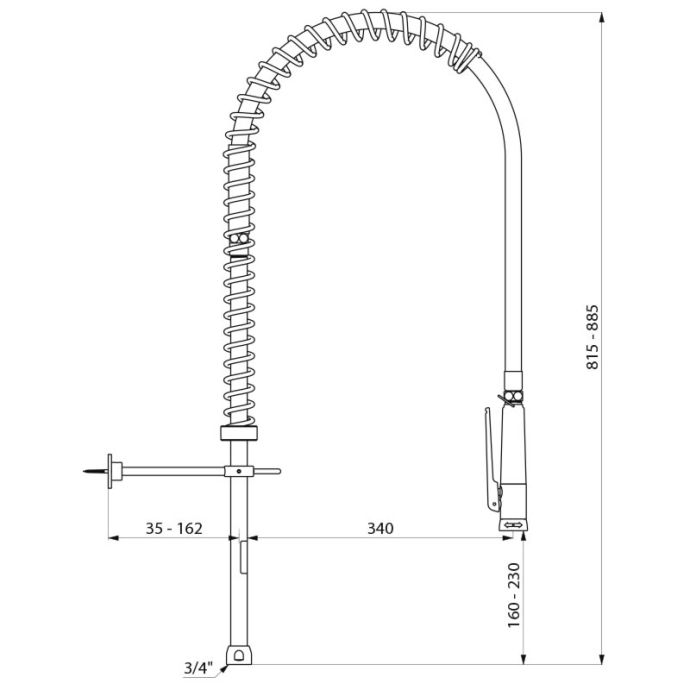

TECHNICAL CHARACTERISTICS

Black pre-rinse set with no valve

Ref. 433620
Connector 3/4"
Height 815 - 885 mm
Drop height 160 - 230mm
Flow rate depends on the valve
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates Logo ACS
Warranty Garantie 10 ans

Downloads

DOWNLOADS

Black pre-rinse set with no valve

Ref. 433620

To download one or several documents linked to this product, please select the type of file you require :
