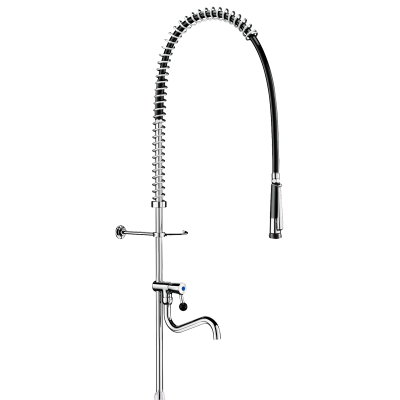

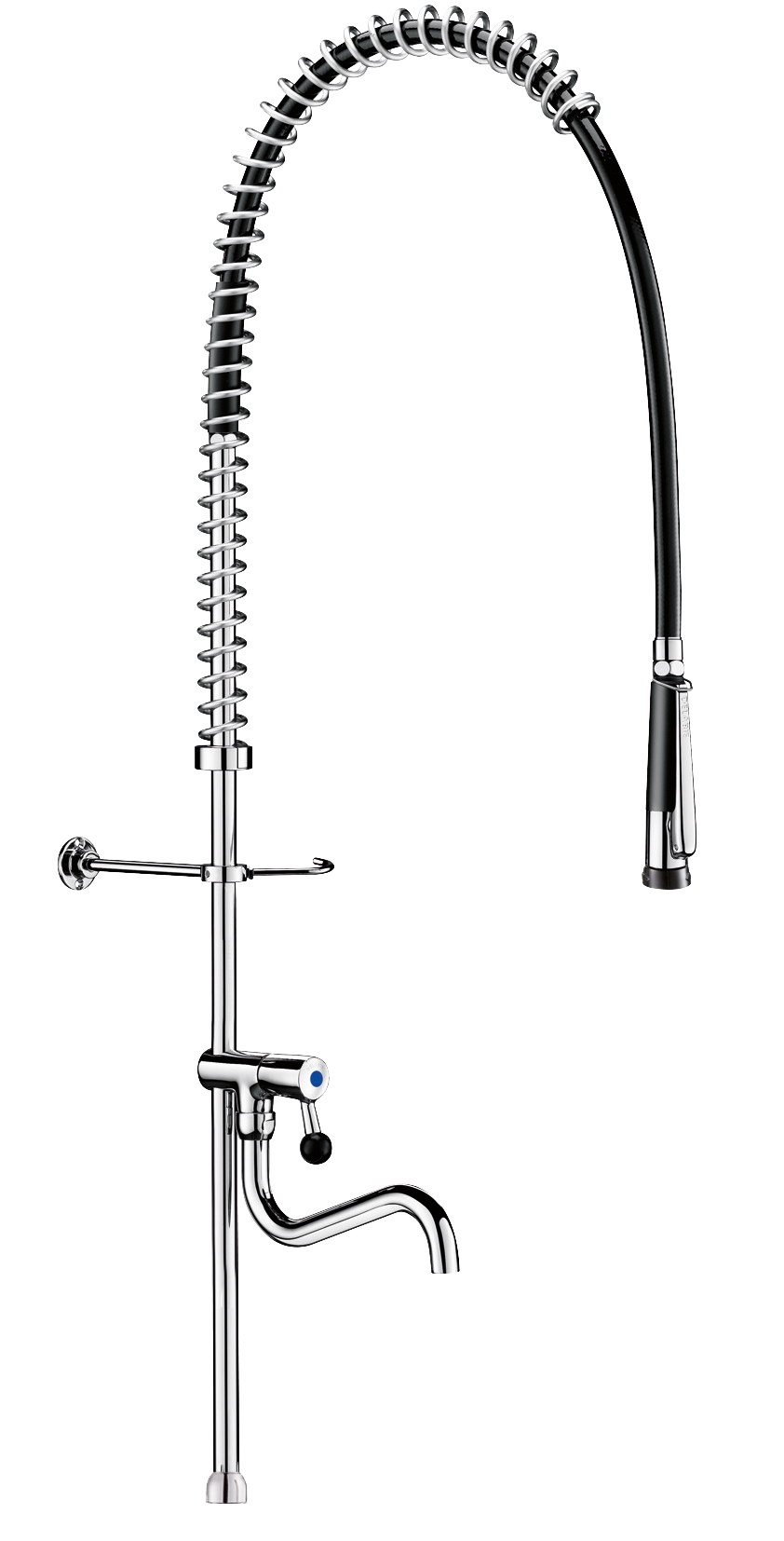

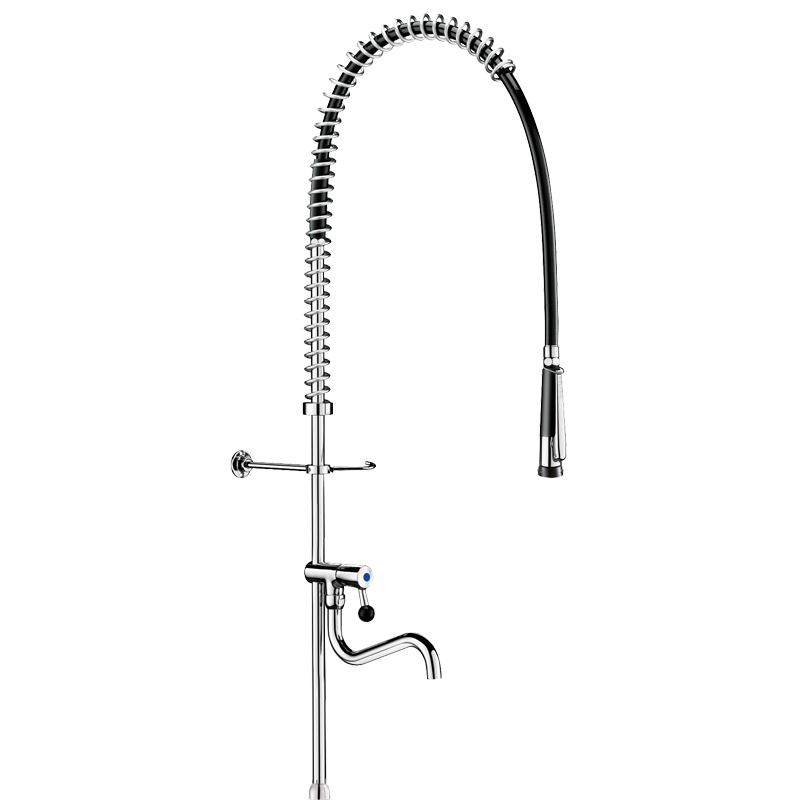

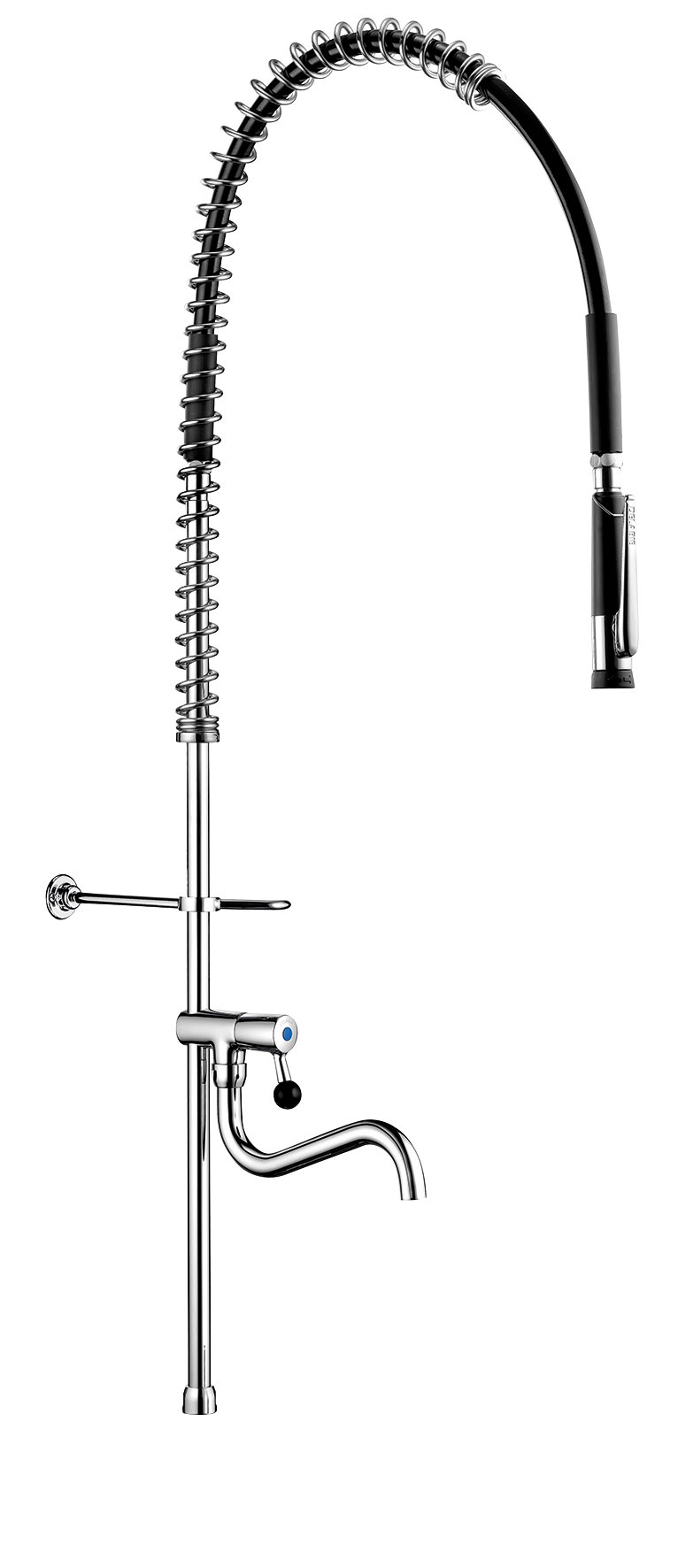

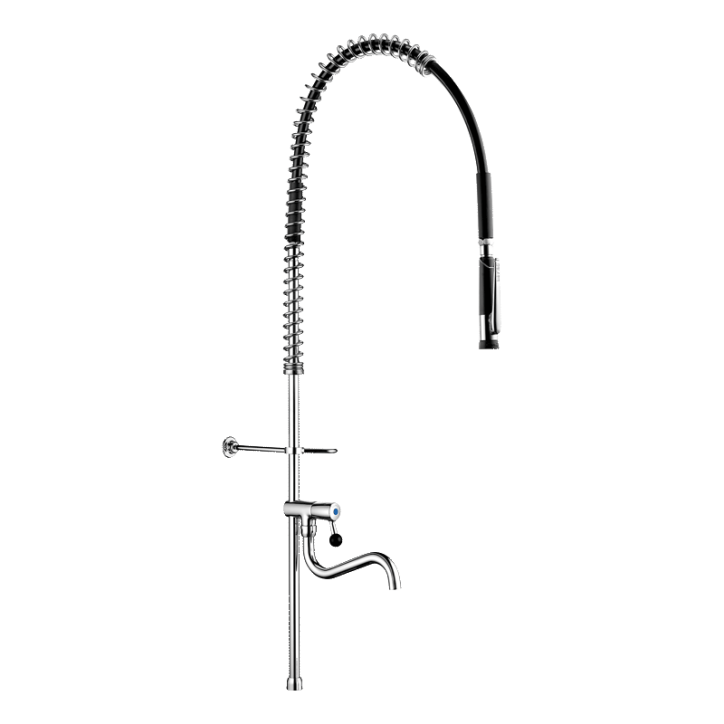

Black pre-rinse set with no valve

Ref. 433722
With bib tap and swivelling telescopic spout
Black pre-rinse set with no valve

Presentation

DESCRIPTION

Black pre-rinse set with no valve

Ref. 433722

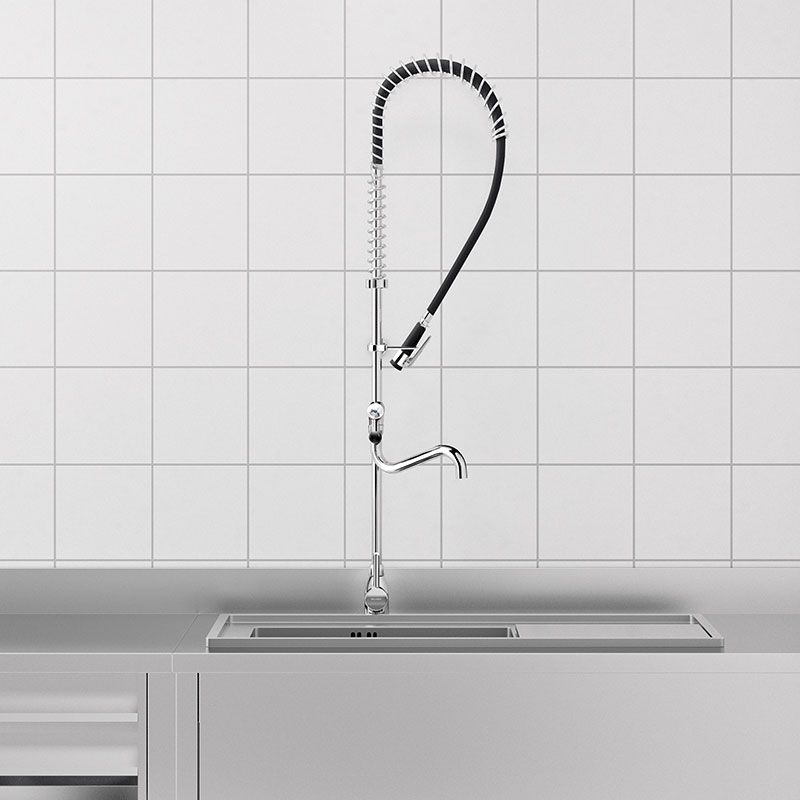

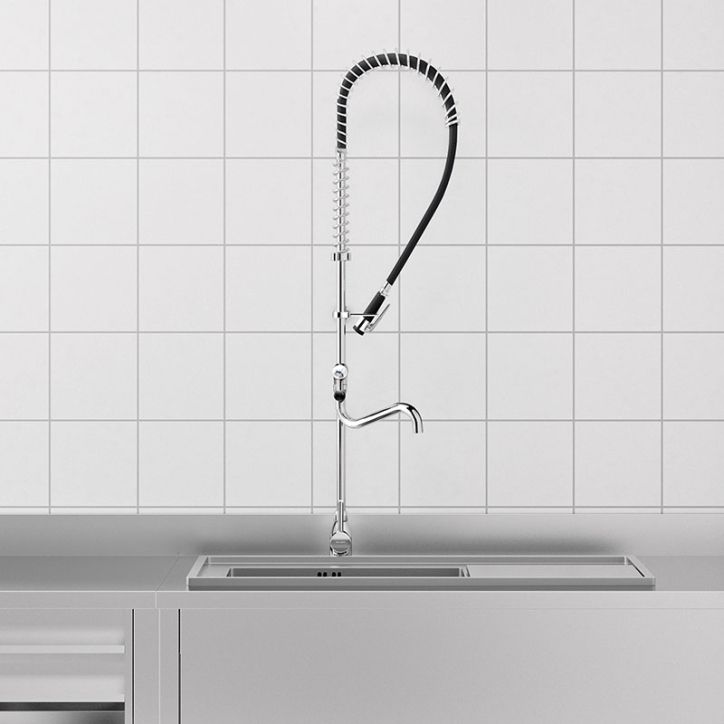

Black pre-rinse set without valve suitable for intensive use in professional kitchens.
Bib tap with swivelling, tubular spout L. 200mm.
- full flow rate within 1/4-turn.
- valve head with reinforced mechanism with ergonomic control.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Black reinforced food-grade flexible hose L. 0.95m.
3/4" long brass column.
Adjustable wall bracket.
Stainless steel spring guide.
10-year warranty.

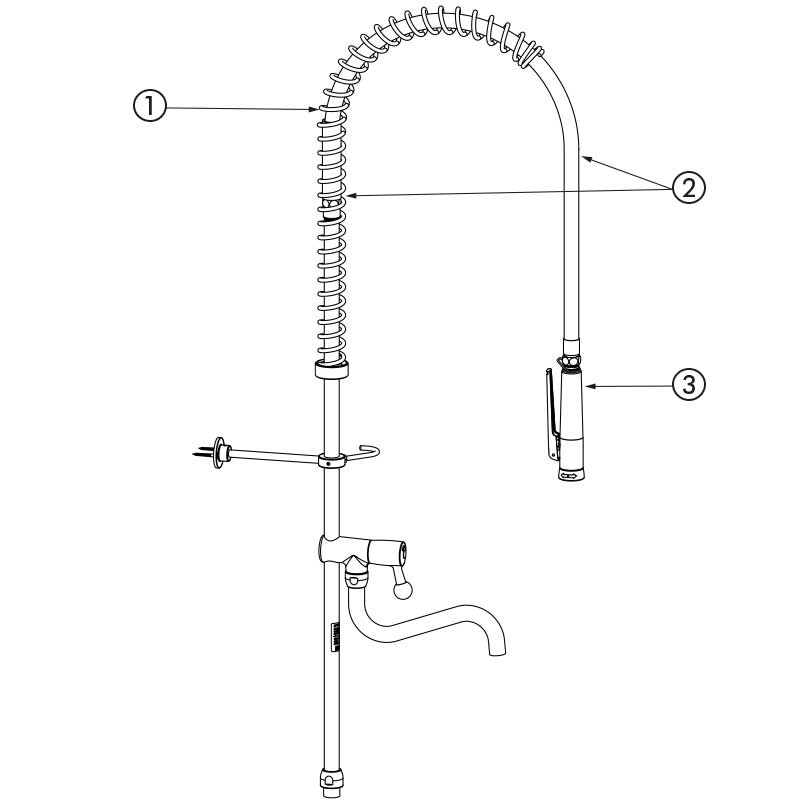

This pre-rinse set, with no water control valve, comprises spare parts for repairing pre-rinse sets.

ADVANTAGES

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic control, swivelling spout

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: Hytrel flexible, scale-resistant spray

Anti-vandalisme

Increased resistance: high quality flexible

Characteristics

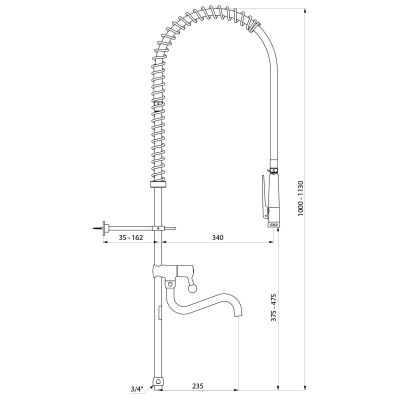

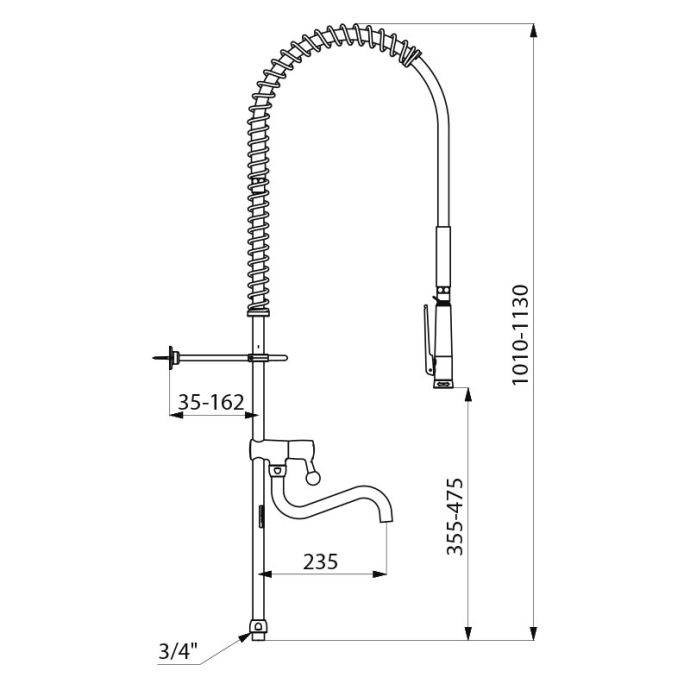

TECHNICAL CHARACTERISTICS

Black pre-rinse set with no valve

Ref. 433722
Connector 3/4"
Height 1000 - 1130mm
Drop height 375 - 475mm
Flow rate depends on the valve
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates Logo ACS
Warranty Garantie 10 ans
