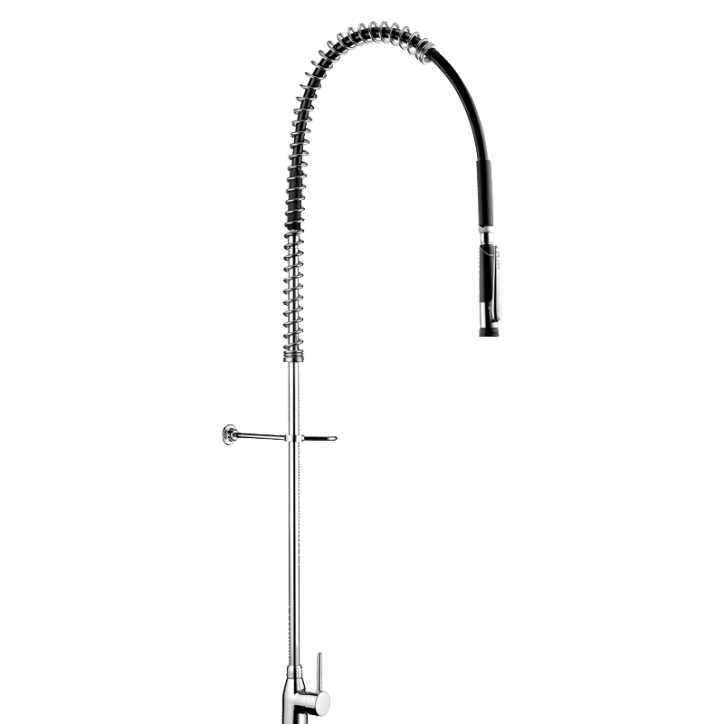

Pre-rinse set with mixer

Ref. 5626
Without bib tap
Pre-rinse set with mixer

Presentation

DESCRIPTION

Pre-rinse set with mixer

Ref. 5626
Complete pre-rinse set without bib tap.
Single hole deck-mounted mixer with slimline control lever.
Supplied with F3/8" flexible hoses and non-return valves.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Reinforced, food-grade black flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
10-year warranty.

ADVANTAGES

Endurance - Fiabilité

High performance flexible hose

Anti-vandalisme

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Ergonomic controls

Characteristics

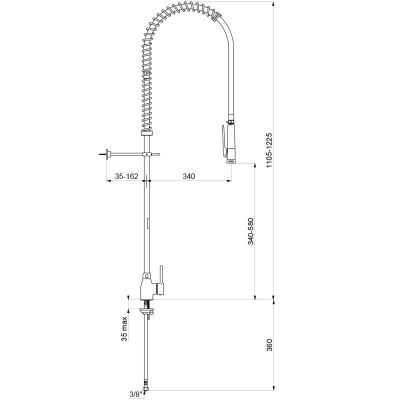

TECHNICAL CHARACTERISTICS

Pre-rinse set with mixer

Ref. 5626
Connector F3/8"
Height 1105-1225mm
Drop height 340 - 580mm
Flow rate 9 lpm
Width to the wall 35-162mm
Finish Chrome-plated brass
Certificates Logo ACS Logo Belgaqua Logo PZH
Warranty Garantie 10 ans

Downloads

DOWNLOADS

Pre-rinse set with mixer

Ref. 5626

To download one or several documents linked to this product, please select the type of file you require :
