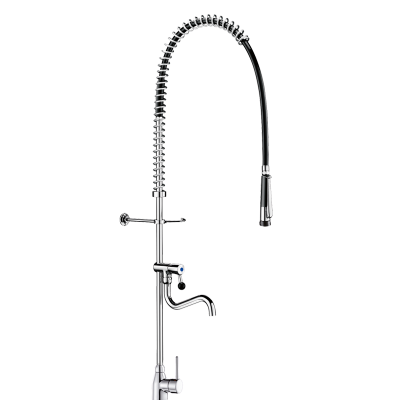

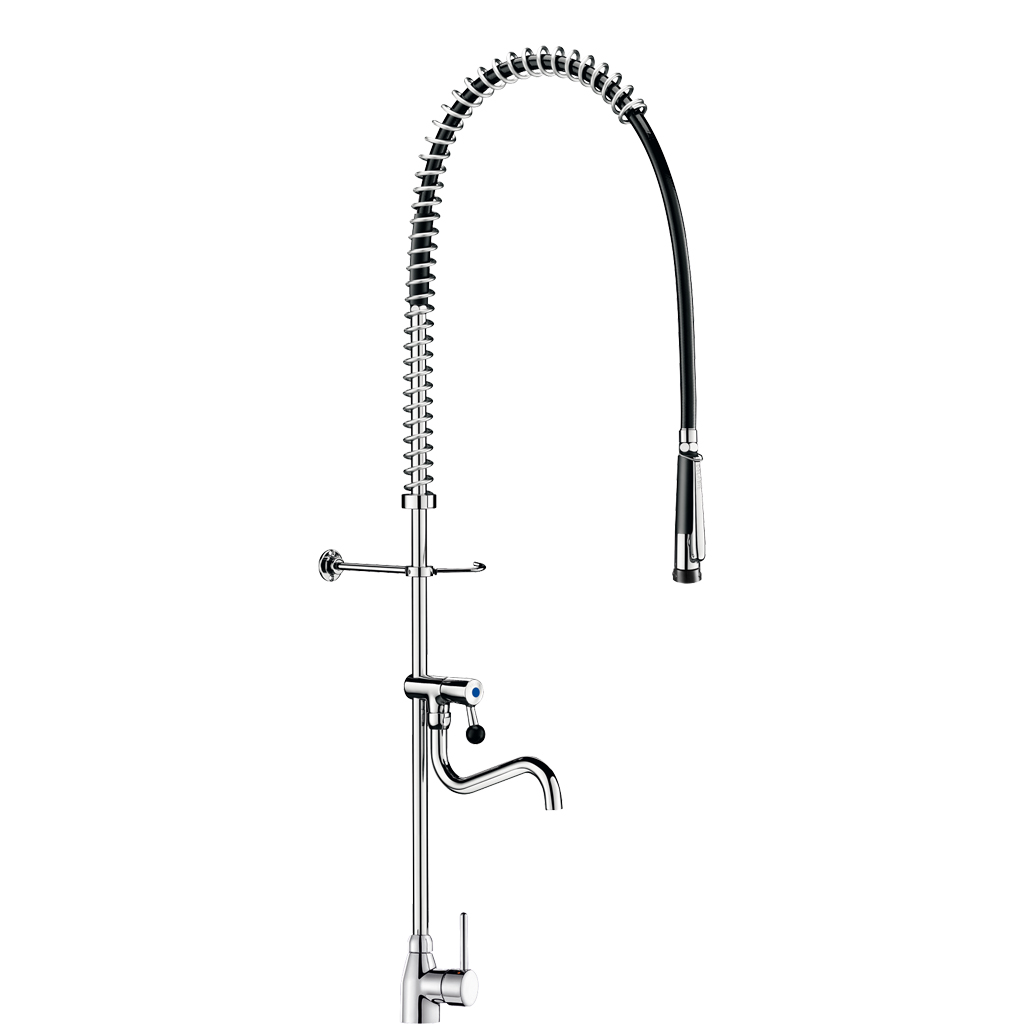

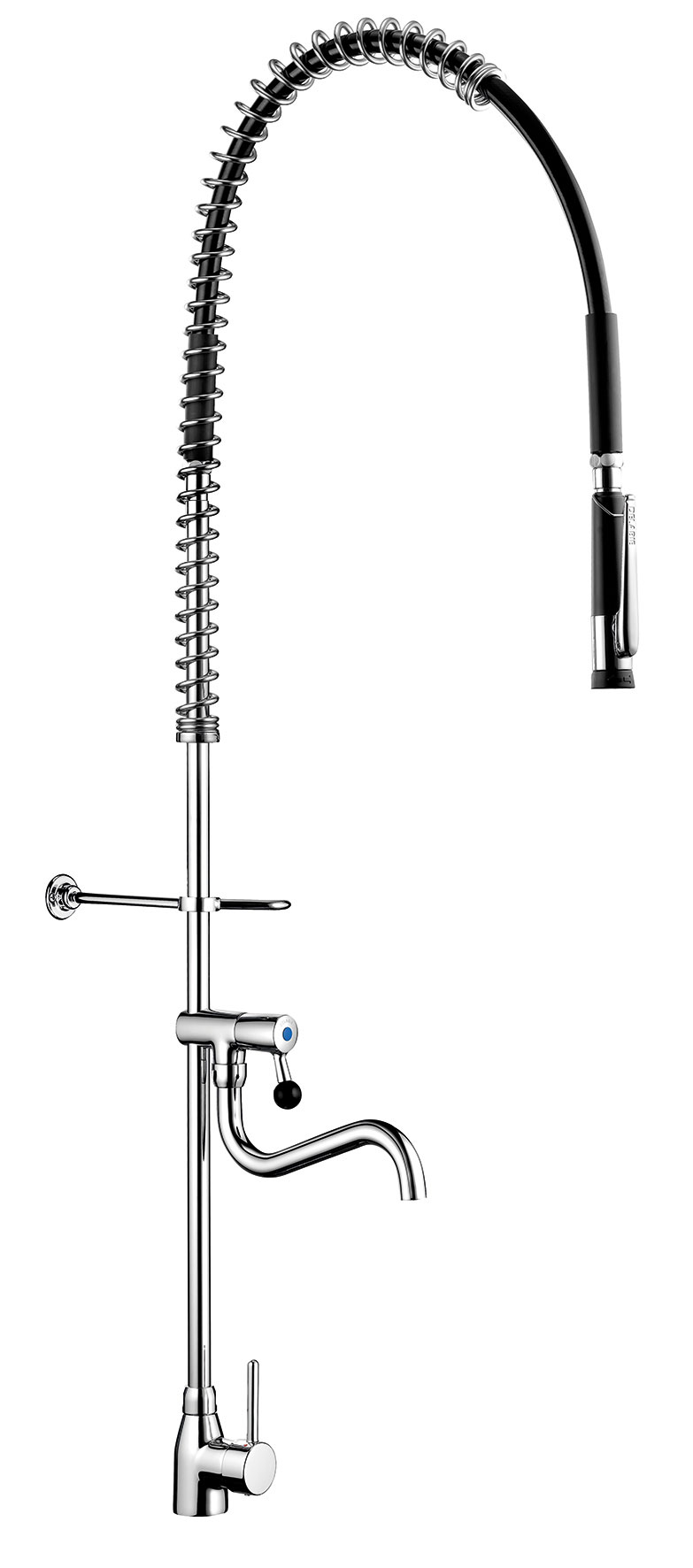

Pre-rinse set with mixer

Ref. 5625
With bib tap and swivelling telescopic spout
Pre-rinse set with mixer

Presentation

DESCRIPTION

Pre-rinse set with mixer

Ref. 5625

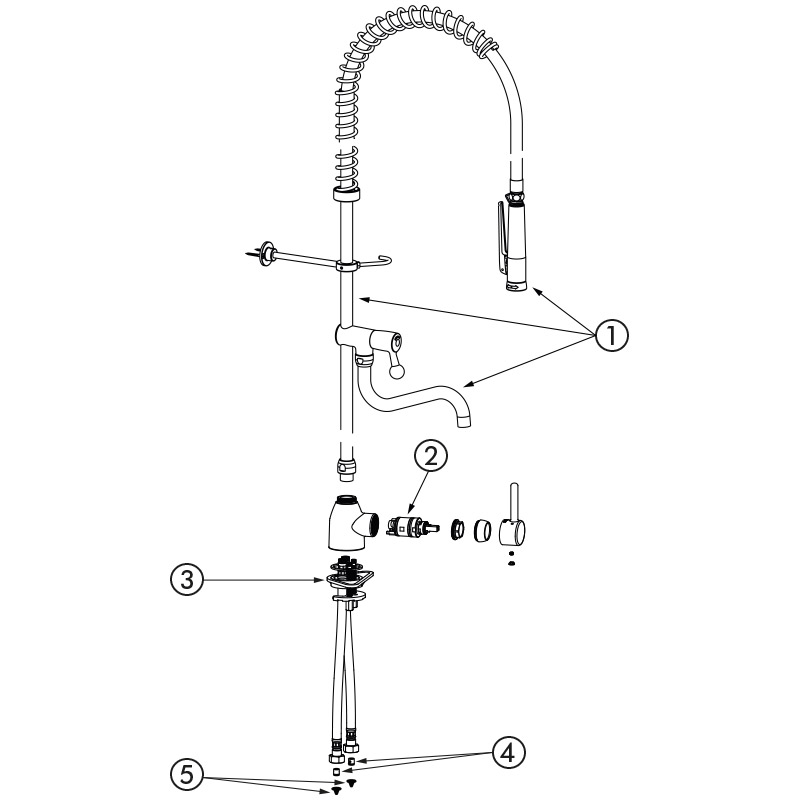

Complete pre-rinse set with bib tap.
Single hole deck-mounted mixer with slimline control lever.

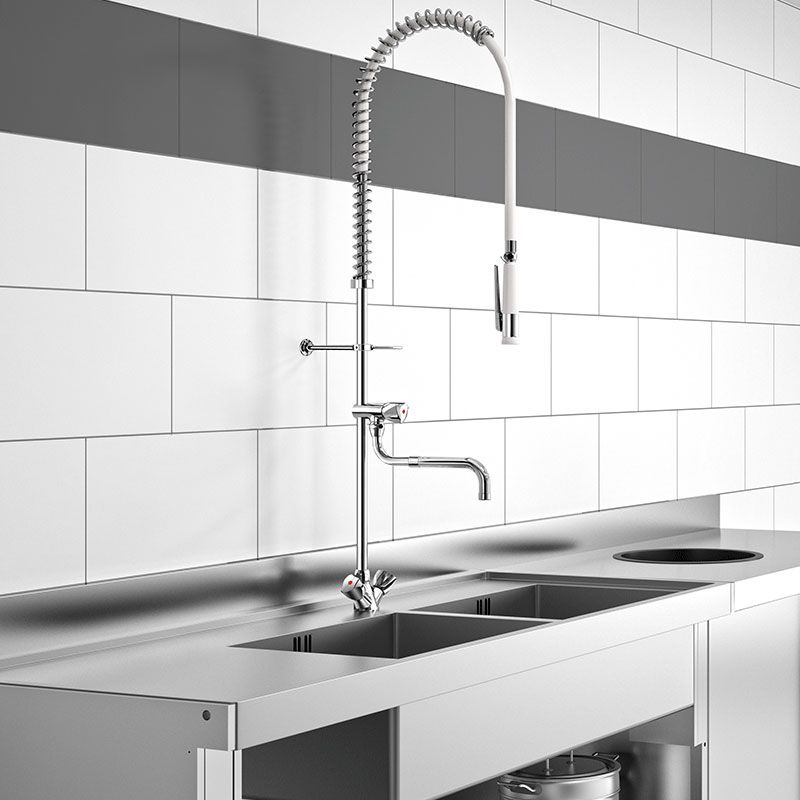

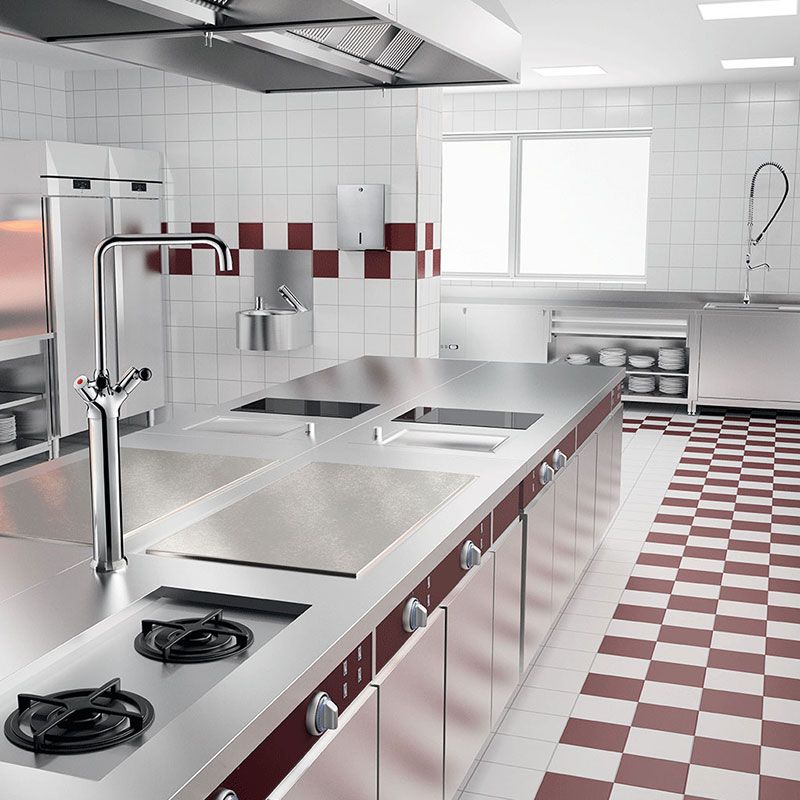

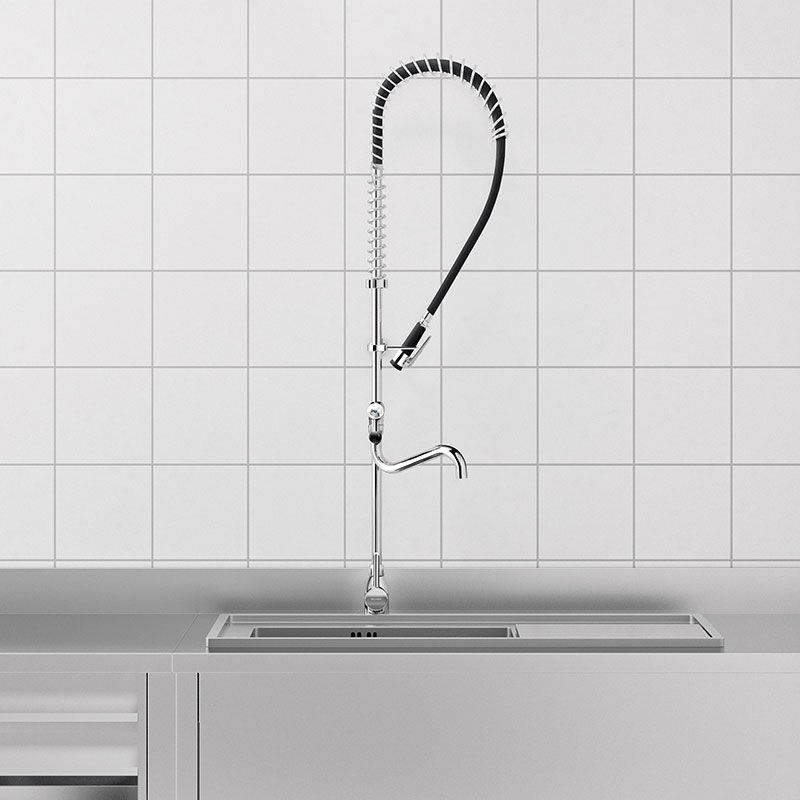

Suitable for intensive use in professional kitchens.
Supplied with F3/8" flexible hoses and non-return valves.
Bib tap with swivelling, tubular spout L. 200mm.
- 16 lpm full flow rate achieved within 90° turn.
- valve head with reinforced mechanism and ergonomic control.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Reinforced, food-grade black flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
10-year warranty.

ADVANTAGES

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic control, swivelling spout

Remplissage rapide

Rapid-fill: full flow rate within the first 90°

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: PVC flexible, scale-resistant spray

Characteristics

TECHNICAL CHARACTERISTICS

Pre-rinse set with mixer

Ref. 5625

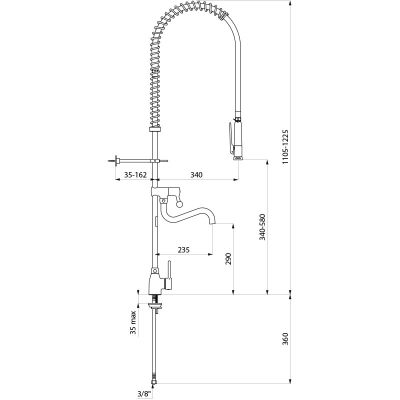

Connector F3/8"
Height 1105 - 1225mm
Drop height 340 - 580mm
Flow rate Bib tap 16 lpm; 9 lpm via the hand spray
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates Logo ACS Logo Belgaqua Logo PZH
Warranty Garantie 10 ans
