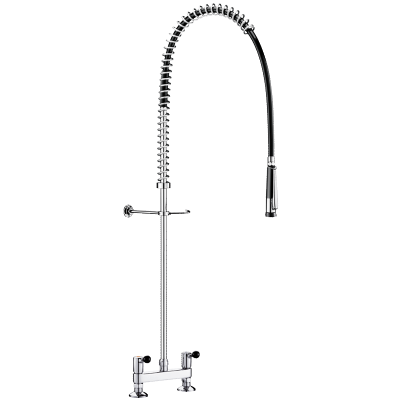

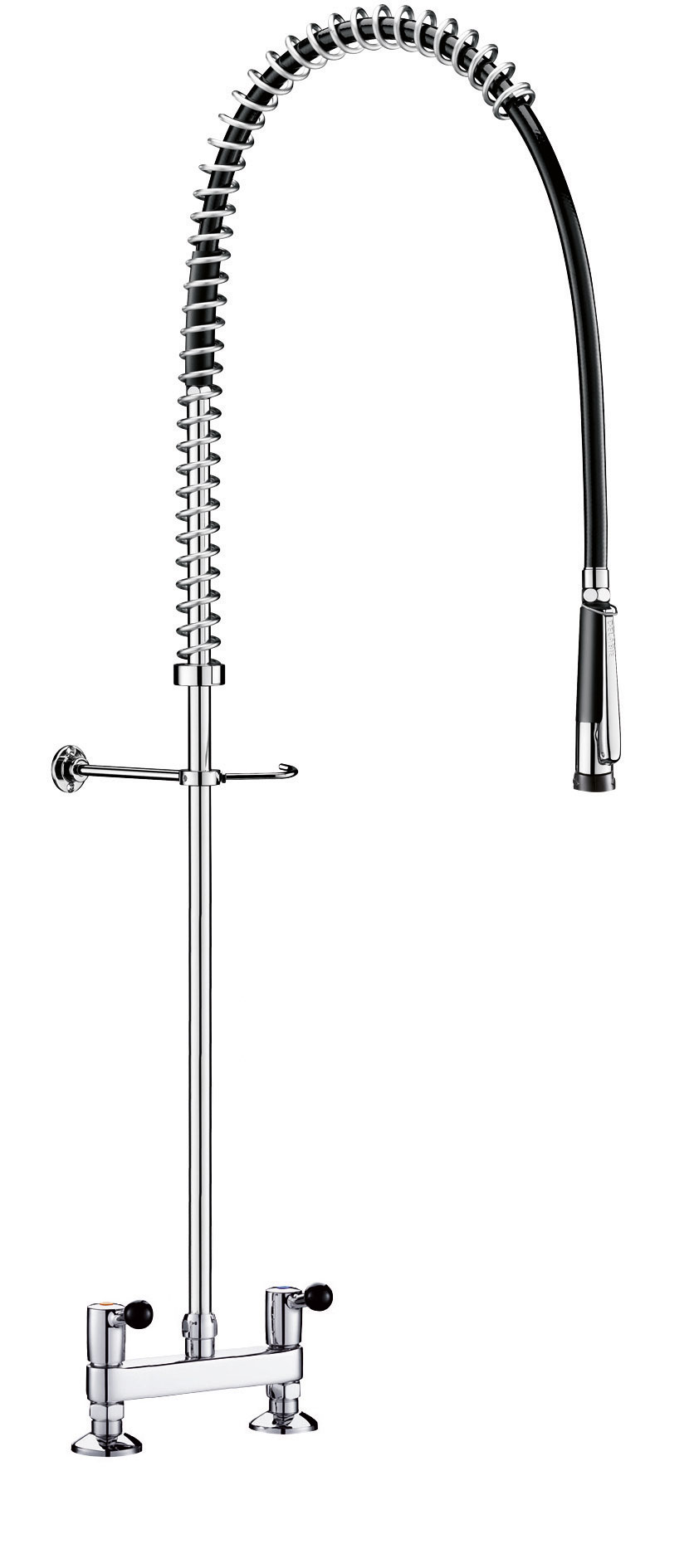

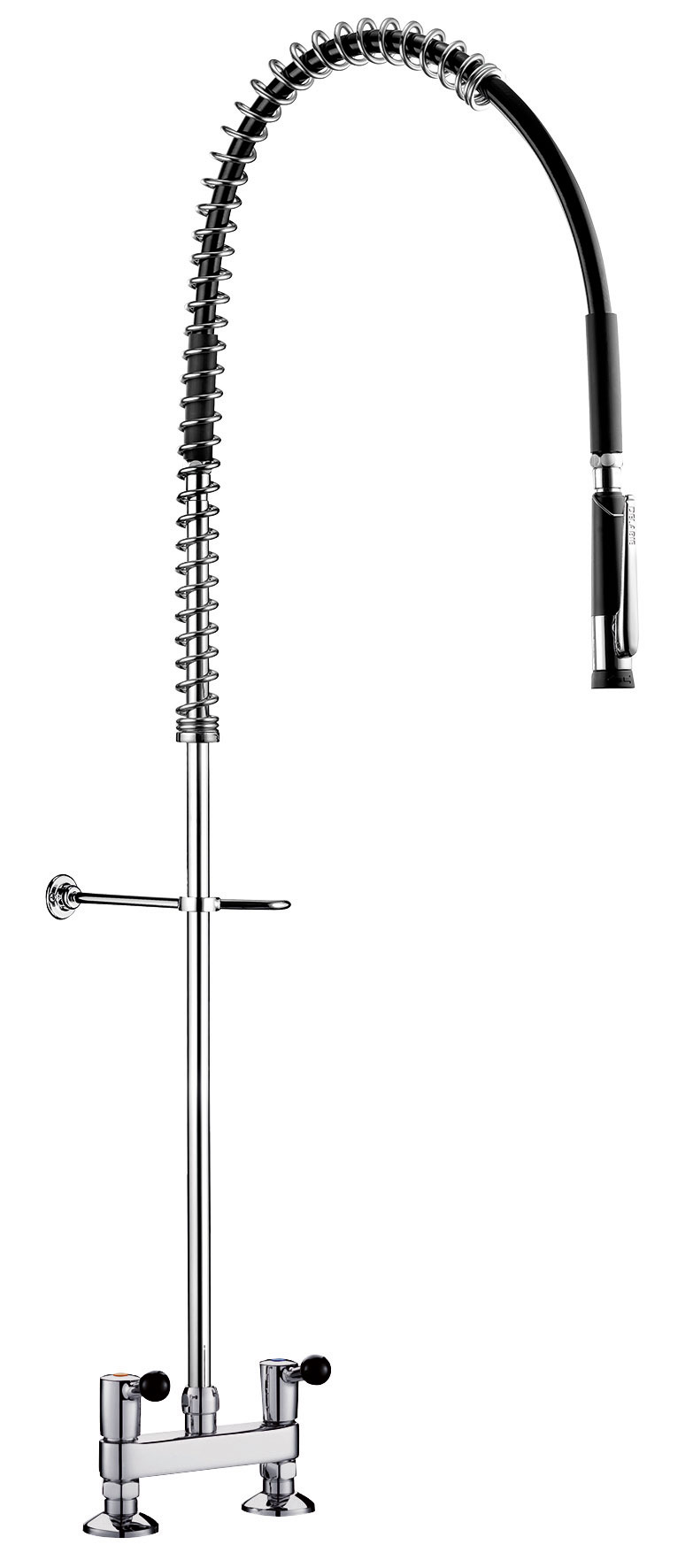

Twin hole pre-rinse set with mixer

Ref. 5680UK
Without bib tap
Twin hole pre-rinse set with mixer

Presentation

DESCRIPTION

Twin hole pre-rinse set with mixer

Ref. 5680UK
Complete pre-rinse set without bib tap.
Deck-mounted twin hole mixer with 180mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
These pre-rinse models can be installed close to the splashback.

ADVANTAGES

Endurance - Fiabilité

Increased resistance: high performance hose

Anti-vandalisme

Anti-torsion rotating nut and PVC sheath

Endurance - Fiabilité

Shock-resistant control levers for intensive use

Confort - Ergonomie - Déclenchement souple

Ergonomic control levers

Characteristics

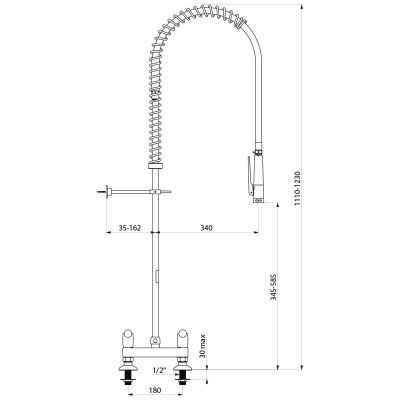

TECHNICAL CHARACTERISTICS

Twin hole pre-rinse set with mixer

Ref. 5680UK
Connector M1/2"
Height 1110 - 1230mm
Drop height 345 - 585mm
Flow rate 9 lpm
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Warranty 30-Year
