DELTA wall-hung urinal

Ref. 134170

Polished satin 304 stainless steel - Top water inlet

3 variants

134770 - Recessed inlet - Polished satin finish

134772 - Recessed inlet - Dual finish

134710 - Exposed inlet - Recessed or exposed waste

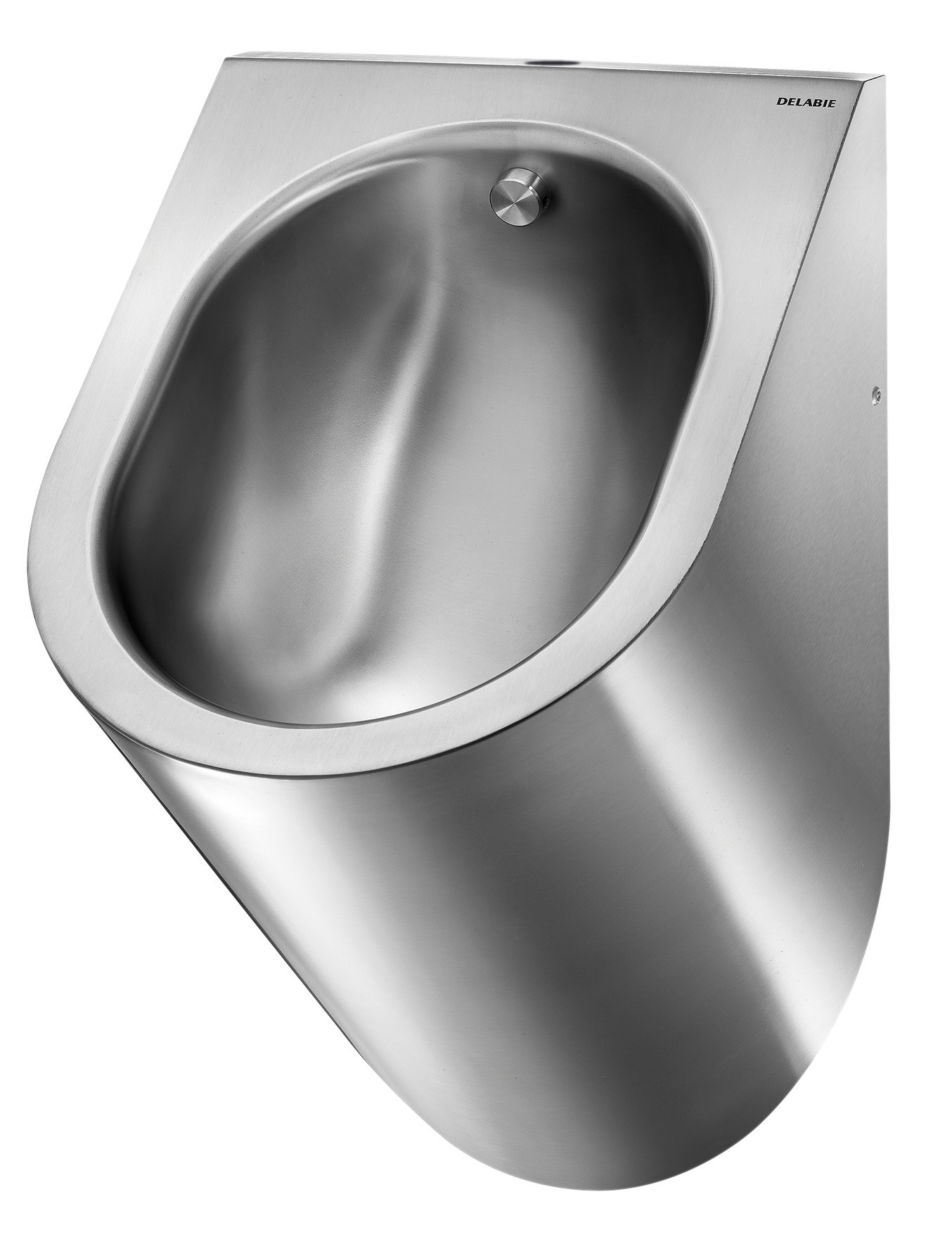

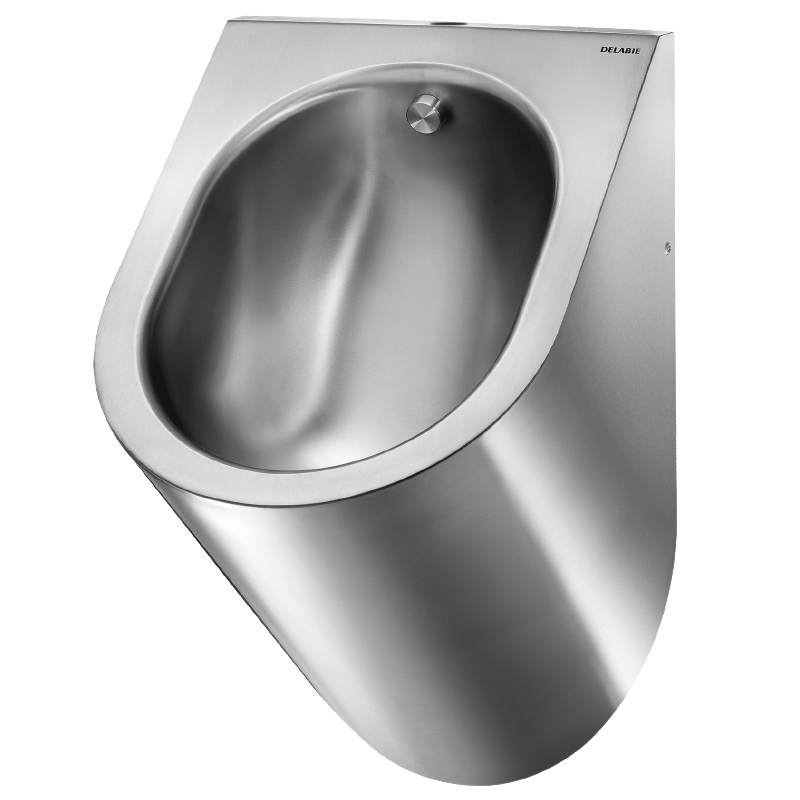

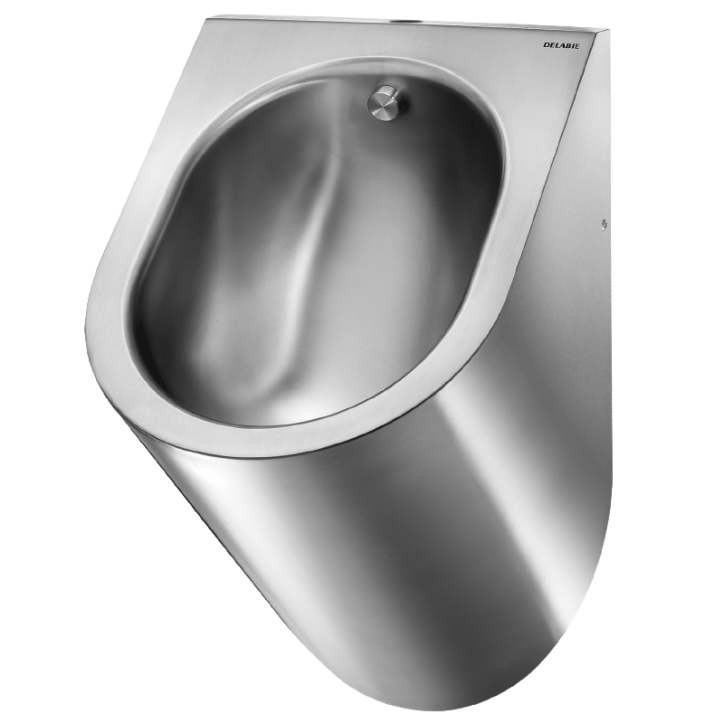

DELTA wall-hung urinal

Ref. 134170

Wall-hung individual rimless urinal.
Compatible with all standard frame systems on the market.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Top (exposed) water inlet.
Recessed waste outlet. Concealed trap.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with 1½" P trap, fixing elements and theft prevention TORX security screws.
CE marked. Complies with European standard EN 13407 for 2L flush.
Weight: 7.5kg.
30-year warranty.

[Formerly ref: 0311160002]

Advantages

Bacteriostatic 304 stainless steel

DELTA wall-hung urinal

Ref. 134170

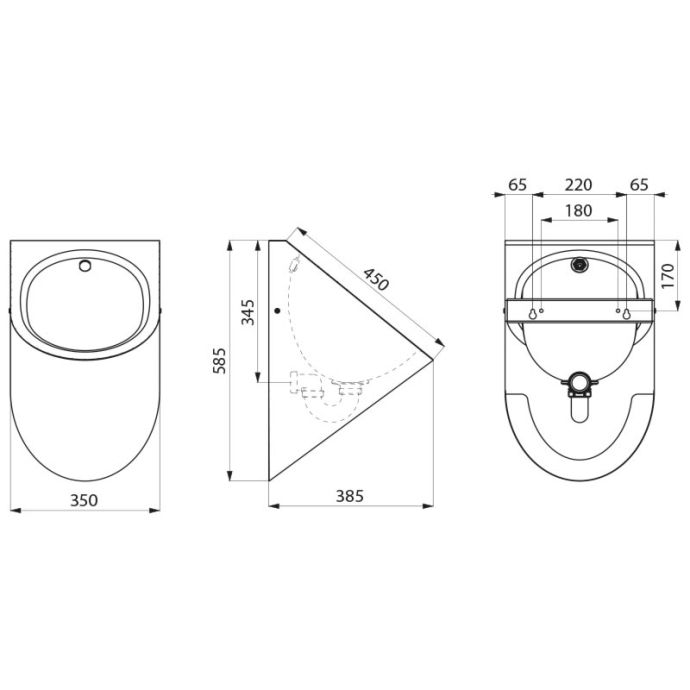

Height 585mm

Length 385mm

Width 350mm

Thickness 1.2mm

Finish 304 polished satin stainless steel

Certificates

Warranty

Discover the hygienic and durable DELTA stainless steel urinal in this video. It will fit right in at any school or stadium.

Associated products

LISO urinal divider for wall-mounting

Polished satin 304 stainless steel - H. 700mm

Ref. 100590

New

FINO wall-hung urinal

Polished satin 304 stainless steel - Top inlet

Ref. 135110

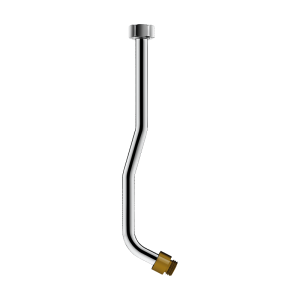

Tube inlet
