Cistern-less direct flush

TEMPOFLUX 2 control plate for WCs

Ref. 578230

Soft-touch operation time flow valve, 3L/6L dual flush

2 variants

578212 - Adjustable single flush - for walls 10 - 60mm or 30 - 60mm, inline inlet M3/4"
578222 - Adjustable dual flush - for walls 10 - 35 and 30 - 60mm, inline inlet M3/4"

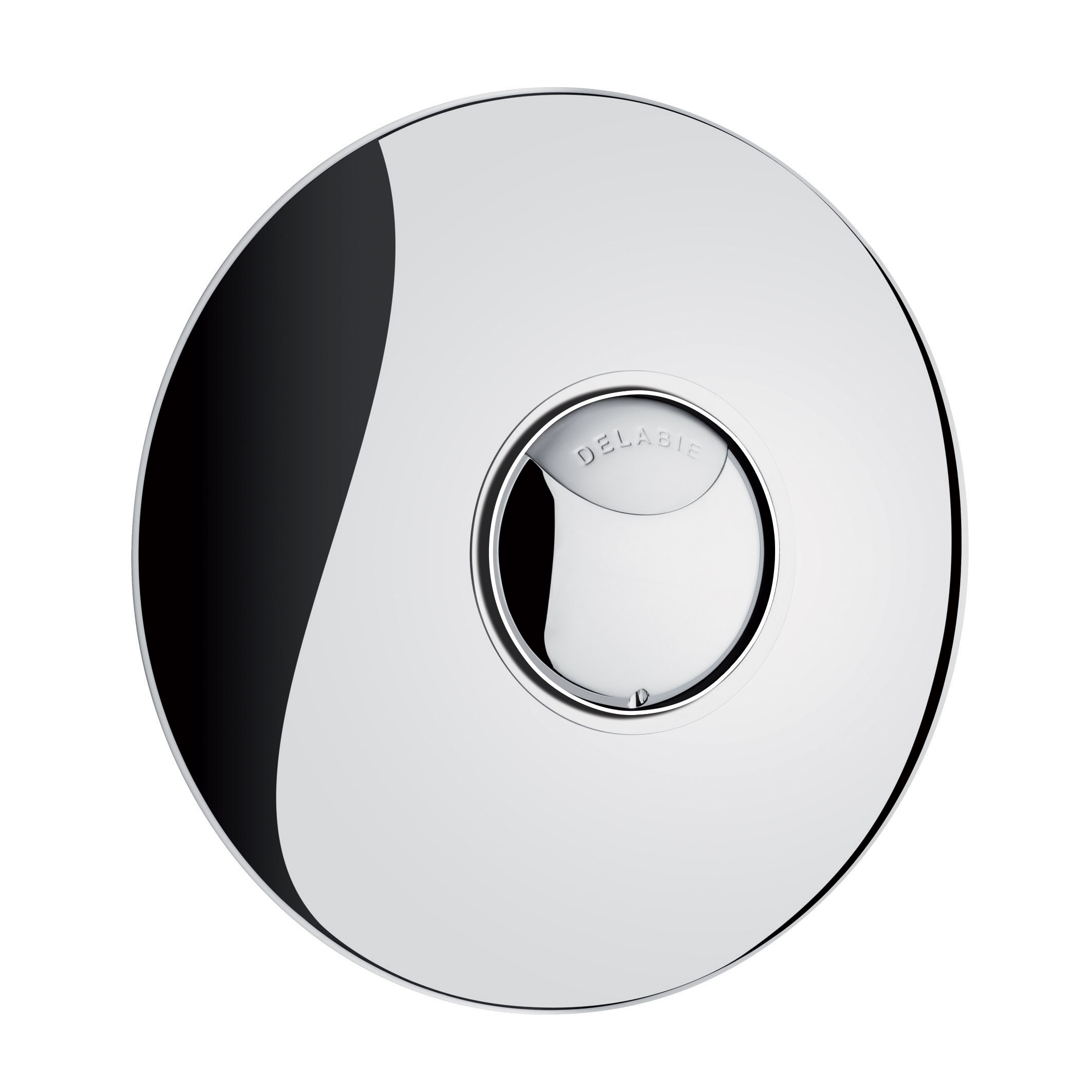

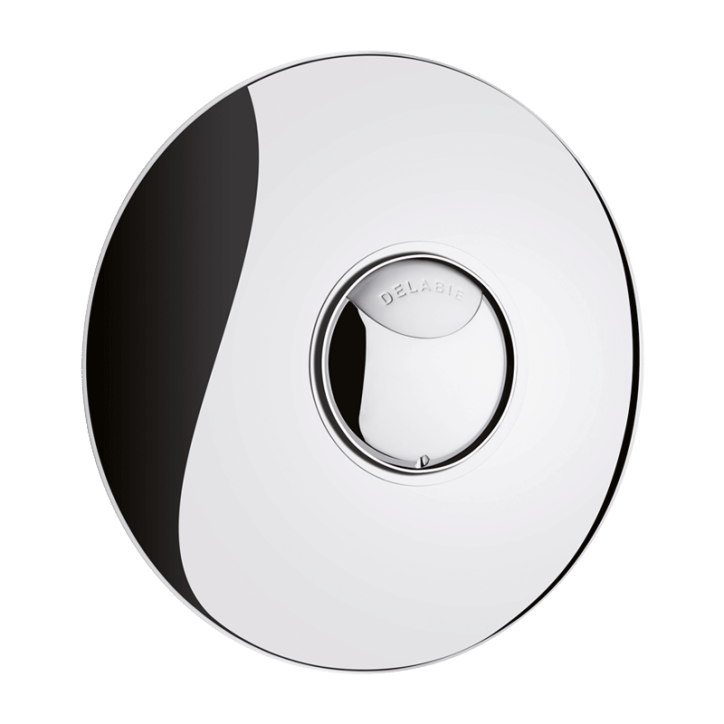

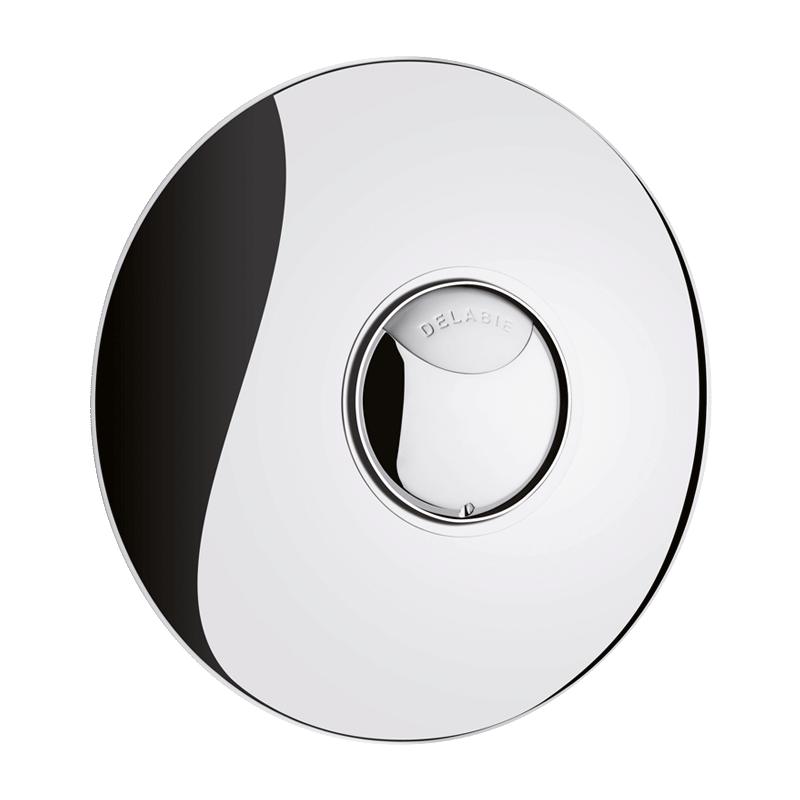

TEMPOFLUX 2 control plate for WCs

Ref. 578230

Control plate for TEMPOFLUX 2 time flow direct flush, kit 2/2:
Flush system without cistern, directly connected to pipework.

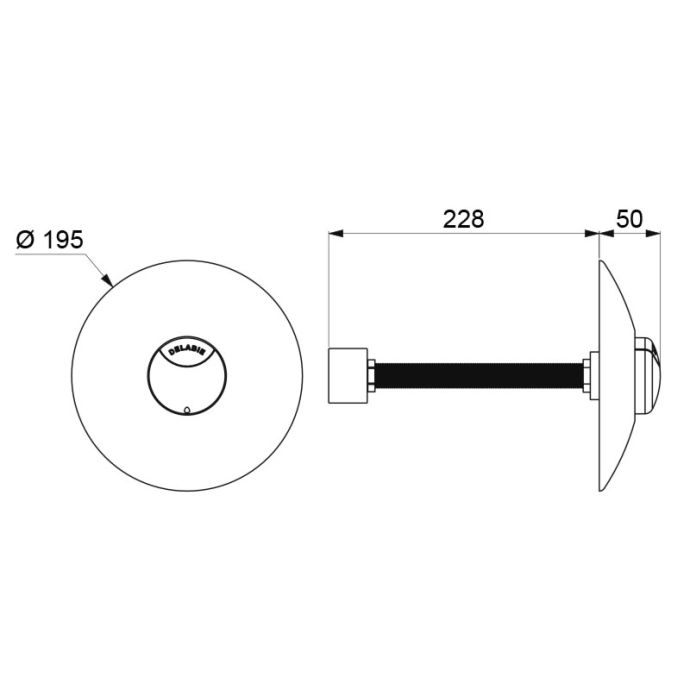

Ø 195mm chrome-plated metal wall plate.
Concealed mechanical fixing of the wall plate.
3L/6L dual flush can be adjusted to 2L/4L.
Soft-touch operation.
For walls 70 - 130mm.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Complies with European standard EN 12541 class II.
30-year warranty.

Order with frame system references 578305DE.

Advantages

Confort - Ergonomie - Déclenchement souple
Soft-touch operation
Hygiène - Anti-bactérien - BIOSAFE
Direct flush: no water stagnation
Endurance - Fiabilité
Flush is instantly available
Economie d'eau
3L/6L dual flush, can be adjusted to 2L/4L
Discover the advantages of direct flush WC
Discover the advantages of direct flush WC

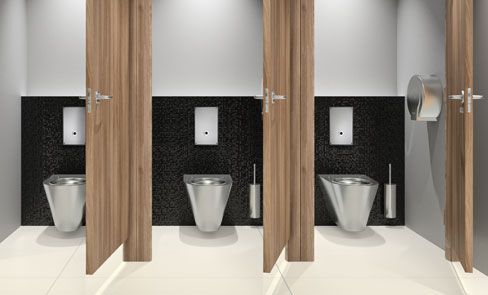

WC direct flush system, a public revolution
WC direct flush system, a public revolution

Associated products

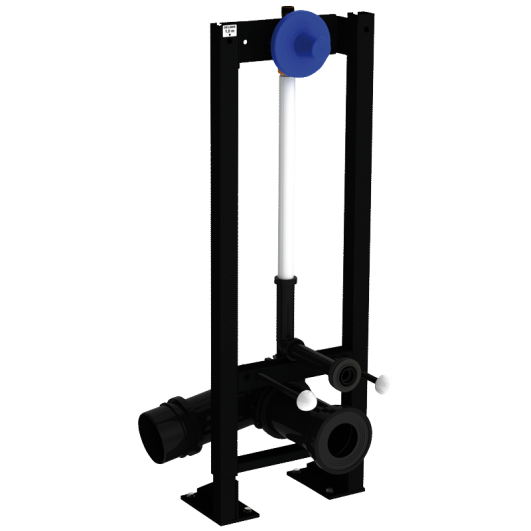

Self-supporting TEMPOFIX 3 frame system for WCs

For TEMPOFLUX 2 time flow valve - Outlet Ø 110mm

Ref. 578305DE

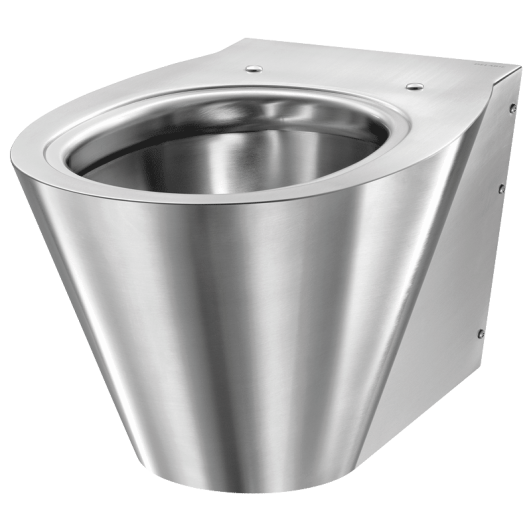

Wall-hung BCN S WC pan

Polished satin 304 stainless steel

Ref. 110110
