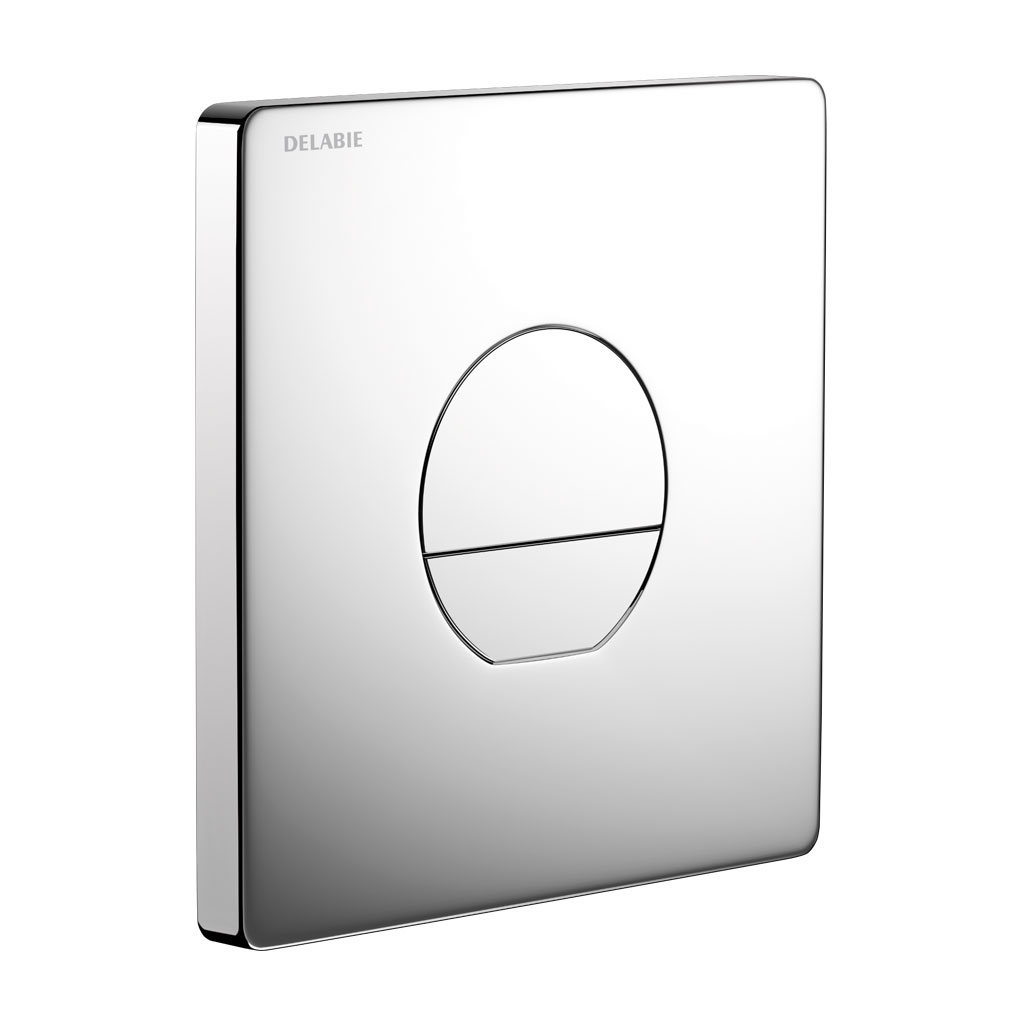

Control plate and recessed time flow direct flush valve TEMPOFLUX 3, kit 2/2:
Flush system without cistern: directly connected to pipework.
Chrome-plated metal plate 170x 170mm.
Control plate is installed manually via hidden fixings.
TEMPOFLUX 3 F¾" valve compatible with rain water.
Soft-touch operation.
AB anti-blocking system: flush only takes place once the push-button is released.
3L/9L dual flush can be adjusted to 2L/4L. Round design.
Complies with European standard EN 12541 (class II acoustic level).
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans and suitable for people with reduced mobility.
30-year warranty.

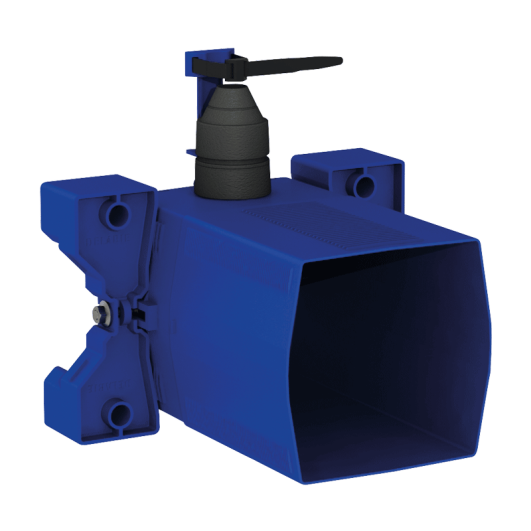

Order with frame system reference 564065DE or 564060DE, or with 763BOX recessed housing.
Advantages
Soft-touch operation
Direct flush: no water stagnation
3L/9L dual flush
Maintenance made easy with front access
TEMPOFLUX 3 control plate for WCs
Ref. 763040
Connector
F¾"
Technology
Time flow
Height
170mm
Width
170mm
Finish
Chrome-plated metal
Certificates
Warranty
TEMPOFLUX 3 control plate for WCs
Ref.
763040
To download one or several documents linked to this product, please select the type of file you require
This direct flush WC valve without a cistern is ideal for public buildings: discover its advantages in this video
