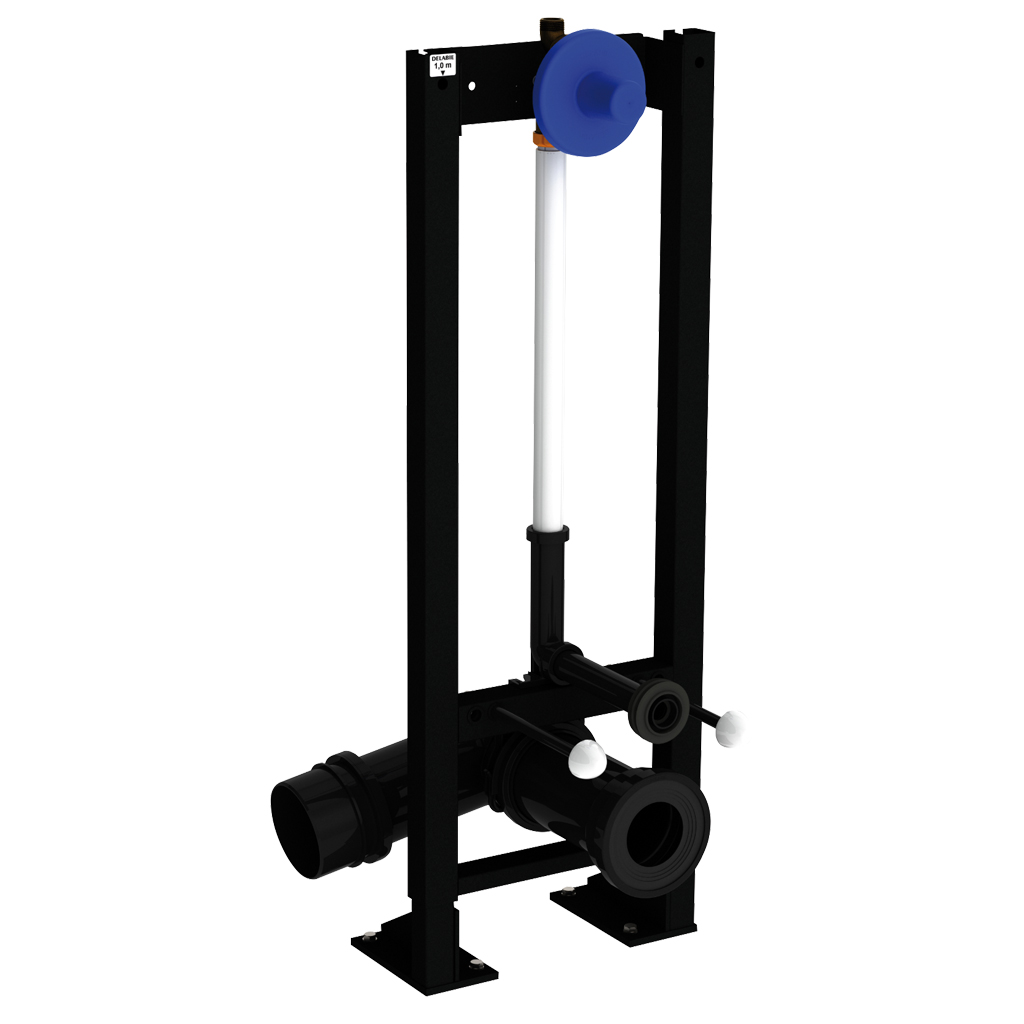

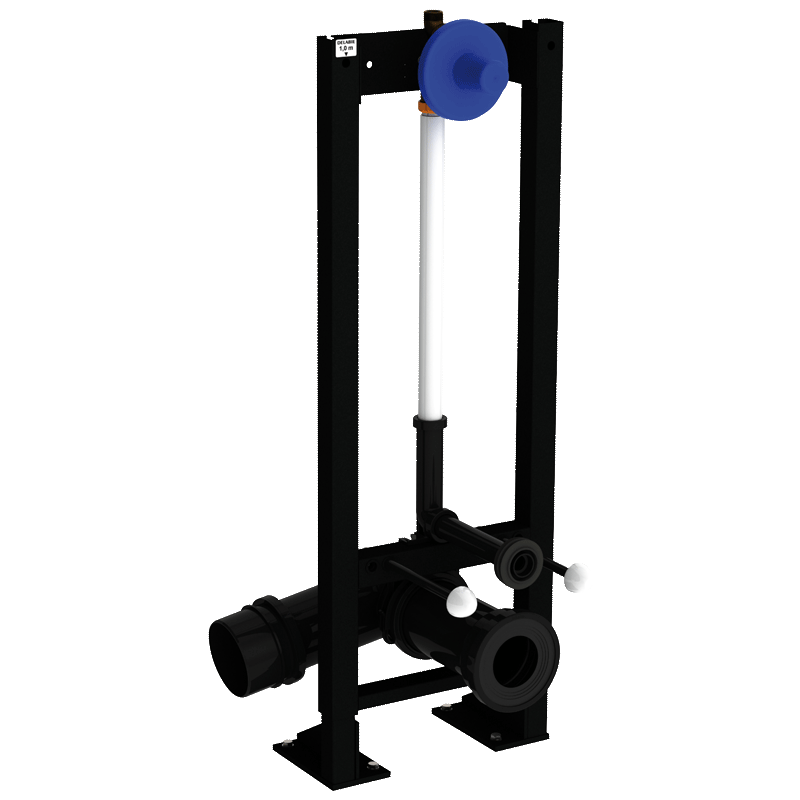

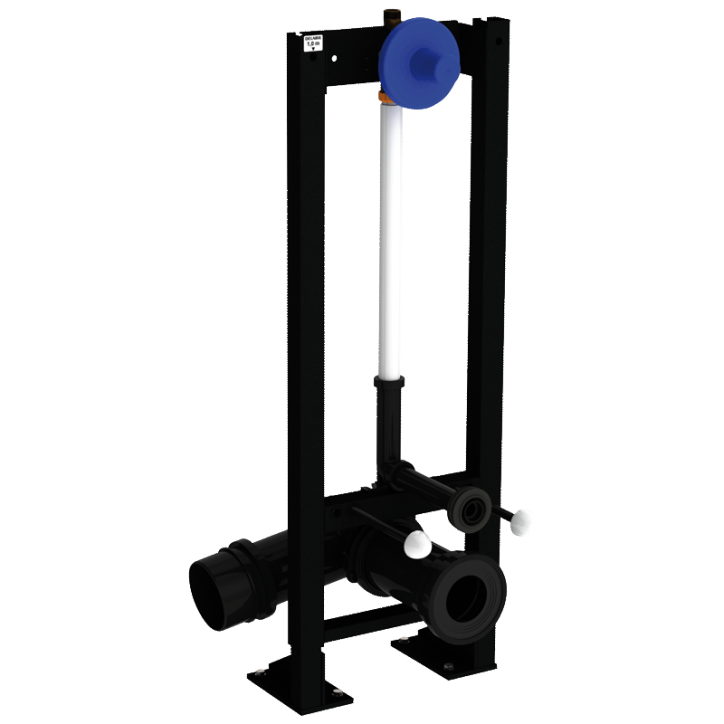

Self-supporting frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- For semi-thick wall finishes from 30 to 60mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 110mm HDPE outlet with waterproof seal, with 2 setting positions.
Fitted with a TEMPOFLUX 2 time flow direct flush:
- Flush system without cistern: directly connected to pipework.
- Vacuum breaker.
- Integrated stopcock and flow rate/volume adjuster.
- Solid brass body and shock-resistant, scale-resistant mechanism.
- In-line inlet M¾".
- Compatible with rain water.
Delivered pre-mounted.
30-year warranty.
Order with control plate references 578222 or 578212.
Advantages
Quick and easy to install: delivered pre-mounted
Space-saving
Adapt to wall thickness
Install behind wall
Self-supporting TEMPOFIX 3 frame system for WCs
Ref. 578405DE
Connector
¾"
Technology
Time flow

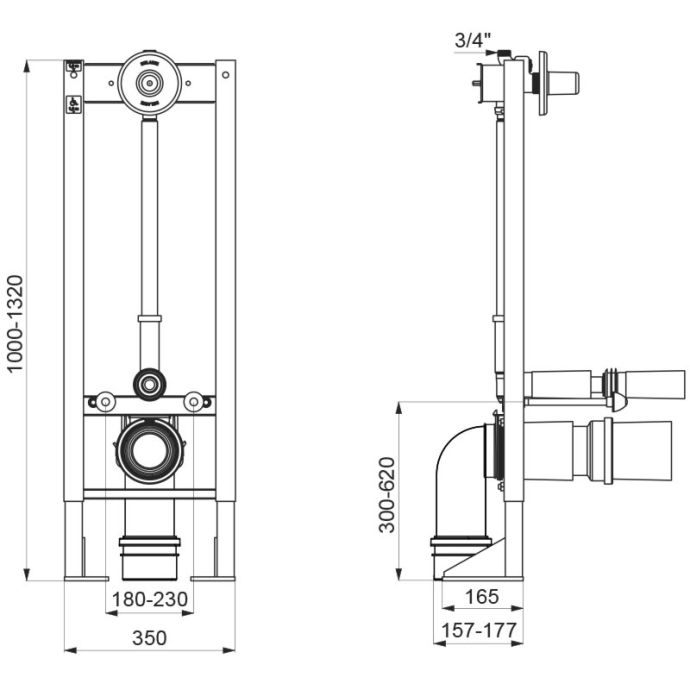

Height
1000 to 1320mm
Depth
157 - 177mm
Width
350mm
Diameter
Ø 110mm outlet
Finish
Black powder-coated steel
Certificates
Warranty
Self-supporting TEMPOFIX 3 frame system for WCs
Ref.
578405DE
