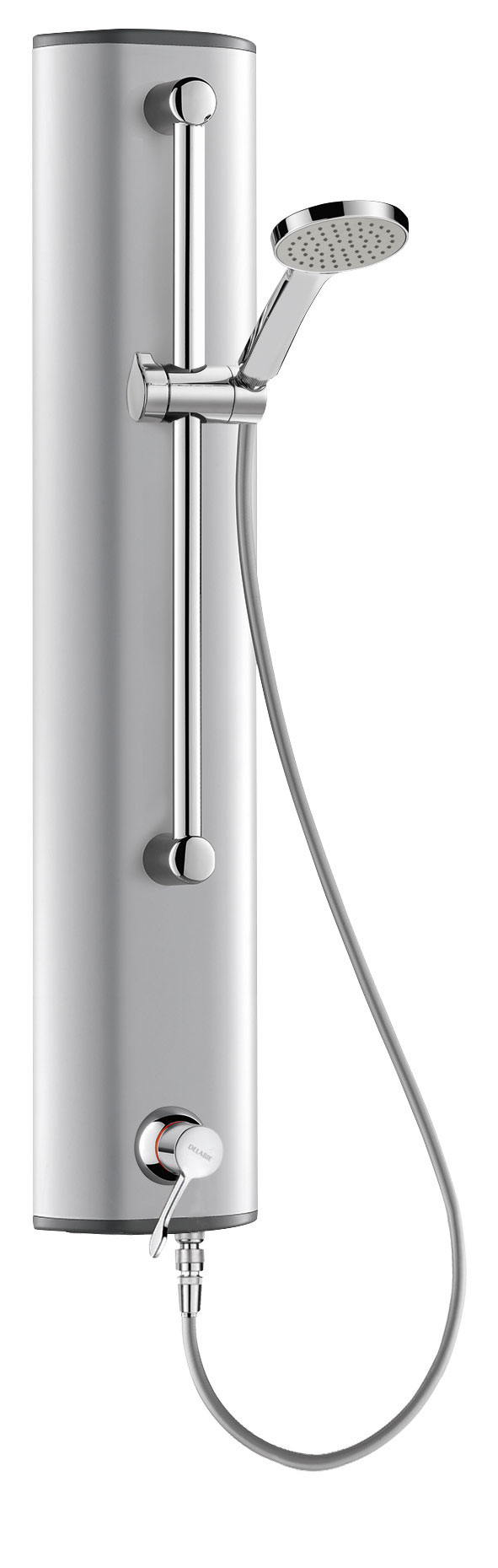

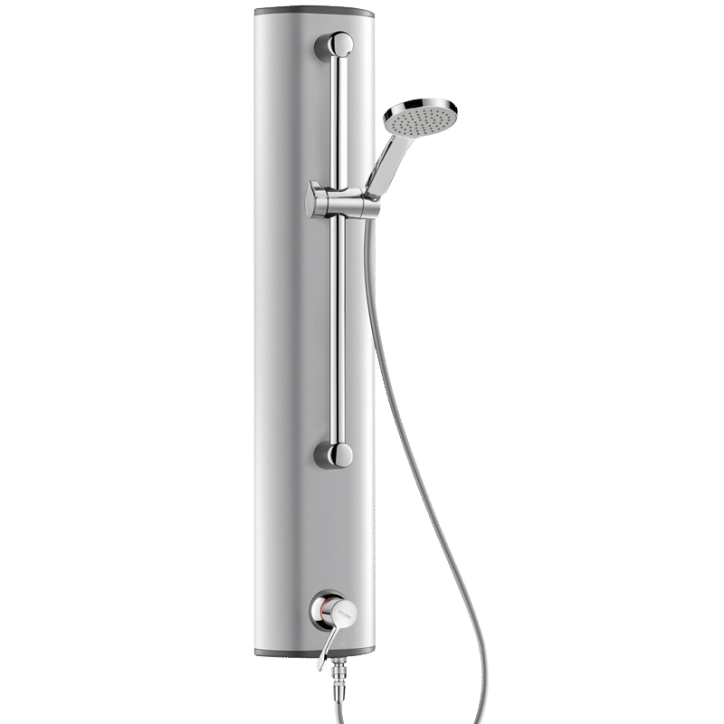

Aluminium shower panel with SECURITHERM sequential mixer
Ref. H963615

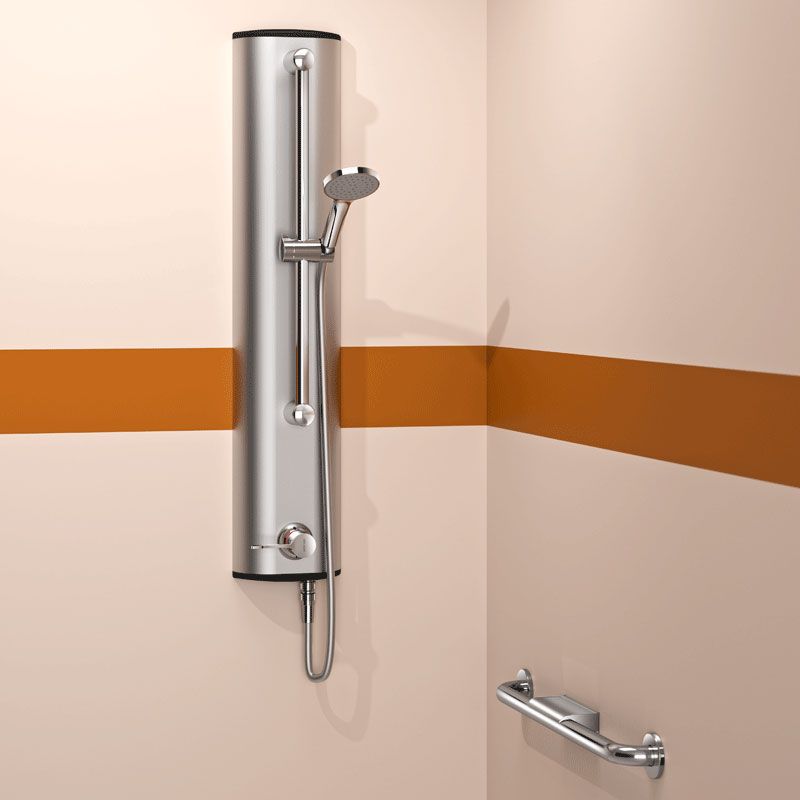

SECURITHERM anodised aluminium shower panel for wall-mounted exposed installation.
SECURITHERM thermostatic sequential shower mixer (non-time flow).
Thermostatic sequential shower mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between the hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Cold water failsafe prevents cold showers: shuts off automatically if hot water supply fails.
Temperature control from cold water up to 39°C.
Temperature limiter set at 39°C, can be adjusted.
Thermal shocks are possible.
Flow rate 9 lpm at 3 bar.
Sliding handset on chrome-plated rail with flexible shower hose removable with push fit rapid STOP connector.
Hygiene control lever L. 100mm.
Top inlets with M1/2" inline stopcocks.
Copper tubes.
Concealed fixings. Filters.

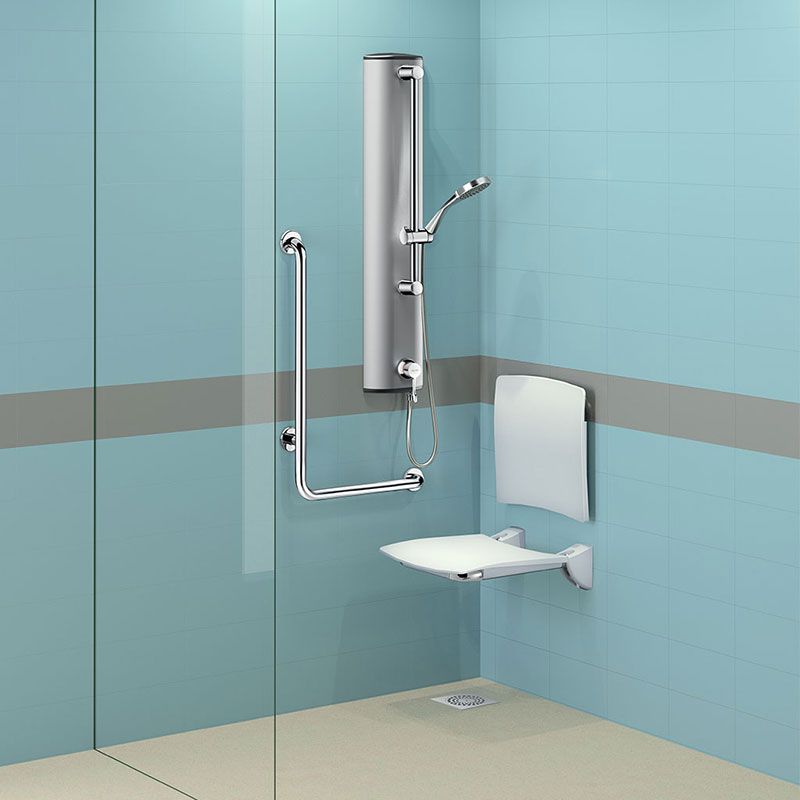

Shower panel suitable for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
30-year warranty.
Advantages
SECURITHERM: Optimum anti-scalding safety
Maximum hygiene: no non-return valves
Thermostatic: total temperature stability
Sequential: open and closing on cold water
Aluminium shower panel with SECURITHERM sequential mixer
Ref. H963615
Supply
Top inlets via inline stopcocks M1/2"
Connector
M1/2", Ø 15mm
Technology
SECURITHERM single control thermostatic mixer

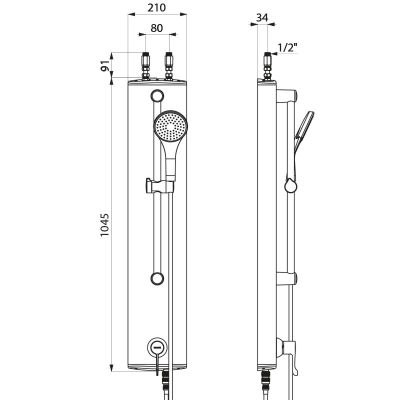

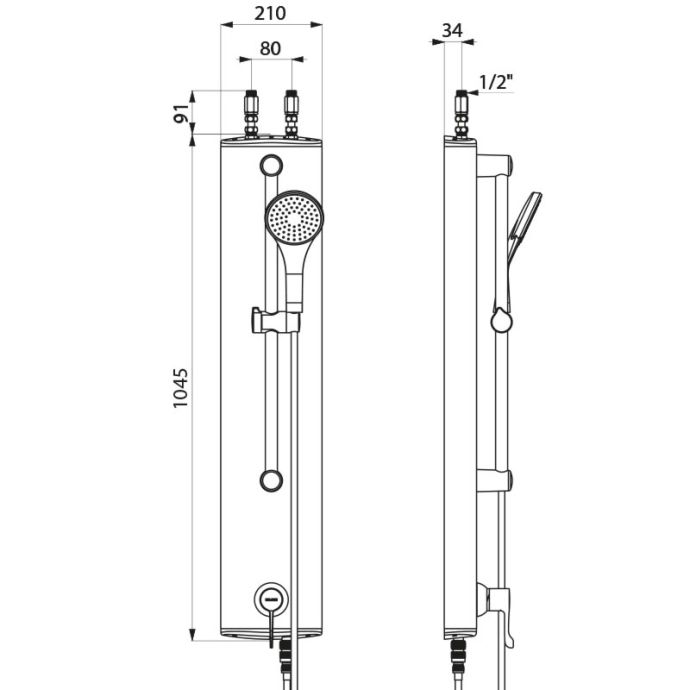

Height
1045mm
Width
210mm
Flow rate
9 lpm
Temperature limiter
39°C
Finish
Aluminium
Warranty
Aluminium shower panel with SECURITHERM sequential mixer
Ref.
H963615
To download one or several documents linked to this product, please select the type of file you require

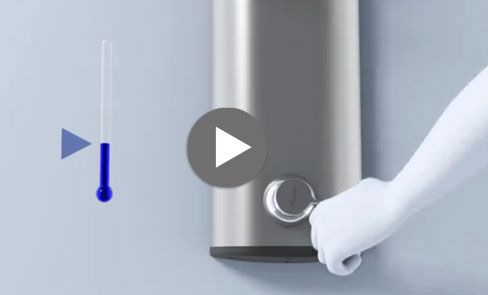

Why install a sequential mixer in healthcare facilities?

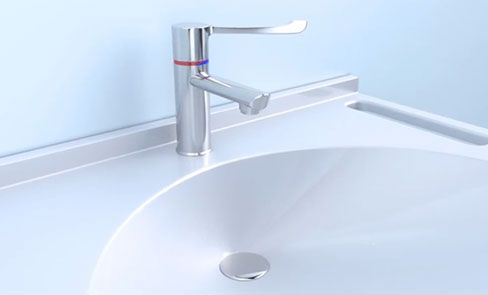

Ergonomic: opens and closes sequentially with cold water
