DESCRIPTION

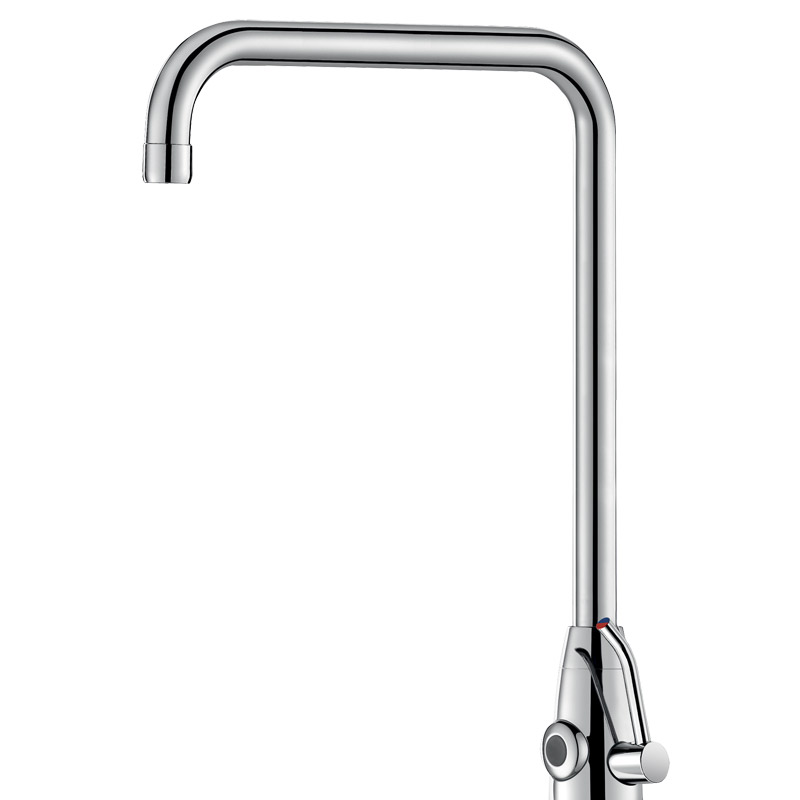

TEMPOMATIC MIX PRO electronic mixer
Ref. 495253Deck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 4 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Shock-resistant infrared presence detection sensor.
Chrome-plated solid brass body with fixing reinforced by 2 stainless steel rods.
PEX flexibles with filters and solenoid valves M⅜".
360° swivelling spout with smooth interior (reduces bacterial development).
Removable spout for cleaning.
Anti-blocking security.
Side temperature control with ergonomic long lever and adjustable maximum temperature limiter.
Solenoid valves upstream of the mixing chamber.
Suitable for people with reduced mobility.
30-year warranty.
Two shut-off options on 230/12V models:
Standard mode: timed flow with automatic shut-off.
ON/OFF mode: user shuts off flow voluntarily or automatic shut-off after 30 minutes of flow.
Thermal shocks are possible.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 4 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Shock-resistant infrared presence detection sensor.
Chrome-plated solid brass body with fixing reinforced by 2 stainless steel rods.
PEX flexibles with filters and solenoid valves M⅜".
360° swivelling spout with smooth interior (reduces bacterial development).
Removable spout for cleaning.
Anti-blocking security.
Side temperature control with ergonomic long lever and adjustable maximum temperature limiter.
Solenoid valves upstream of the mixing chamber.
Suitable for people with reduced mobility.
30-year warranty.
Two shut-off options on 230/12V models:
Standard mode: timed flow with automatic shut-off.
ON/OFF mode: user shuts off flow voluntarily or automatic shut-off after 30 minutes of flow.
Thermal shocks are possible.
ADVANTAGES

Exceptional water savings: 85%

Hygiene: no manual contact

Multiple modes of operation

Independent IP65 electronic control unit

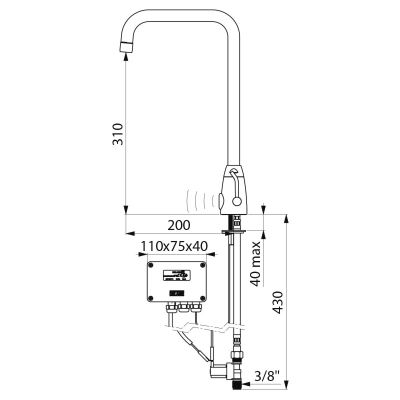

TECHNICAL CHARACTERISTICS
TEMPOMATIC MIX PRO electronic mixer
Ref. 495253| Supply | 230/12V mains supply |
| Connector | M3/8" |
| Technology | Electronic |
| Drop height | 310mm |
| Spout length | 200mm |
| Flow rate | 4 lpm |
| Certificates |
|
| Warranty | |
| Repairability | ![]() |

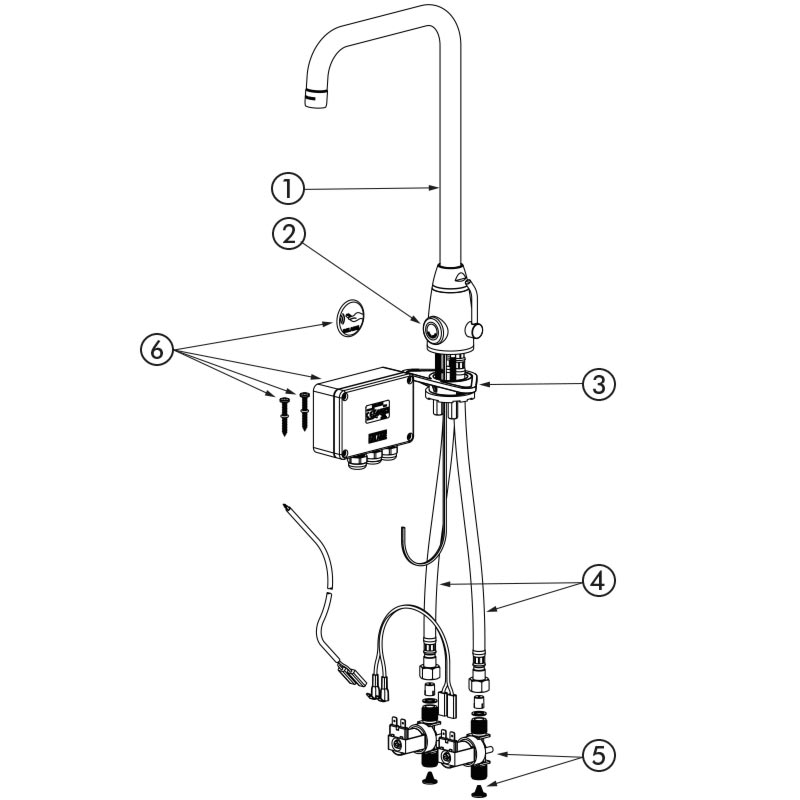

Spare parts
SPARE PARTS
TEMPOMATIC MIX PRO electronic mixer
Ref. 495253
| 1. | 963445 |
|
Swivelling spout F3/4" |
| 2. | CEL378V |
|
Detector |
| 3. | 256P |
|
Fixing plate |
| 4. | FLEX795 |
|
Stainless steel flexibles F3/8" |
| 5. | 495612 |
|
Solenoid valve |
| 6. | 495445BC |
|
Electronic control unit |
VARIANTS
| 495257 | Battery operated - spout H.310mm - long lever - M3/8" |
|---|
VARIANTS
| 495257 | Battery operated - spout H.310mm - long lever - M3/8" |
|---|
