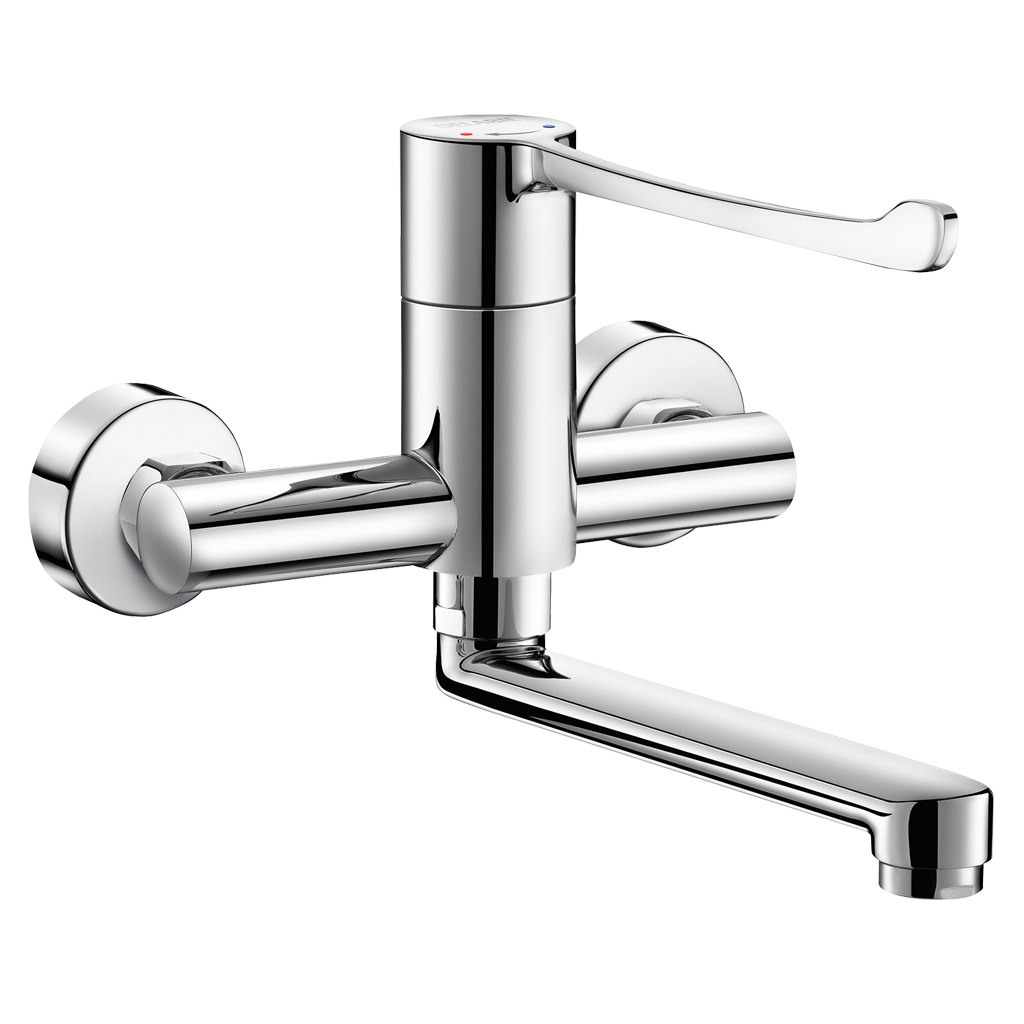

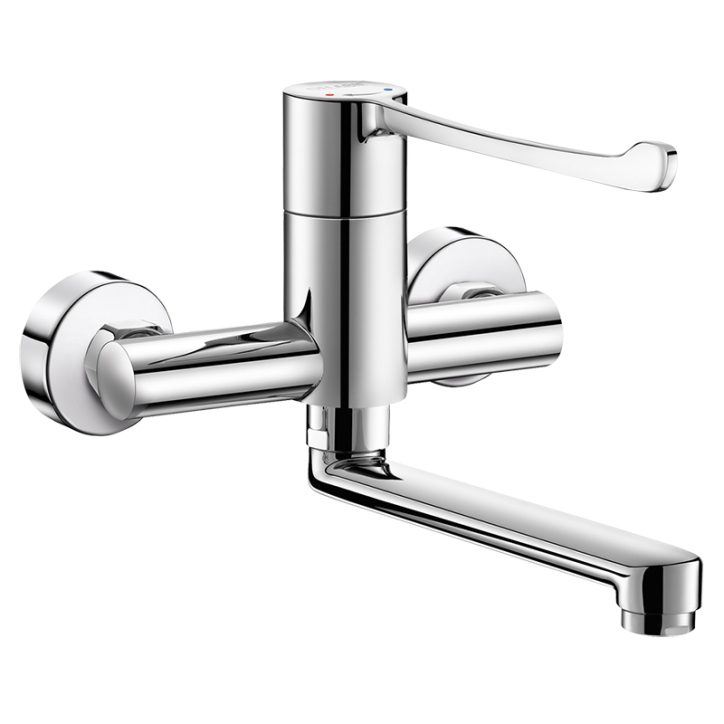

Wall-mounted sequential mechanical basin mixer
Ref. 2437S
Sequential mechanical mixer with fixed spout
Sequential mechanical mixer with fixed spout
DESCRIPTION
Wall-mounted sequential mechanical basin mixer
Ref. 2437SWall-mounted sequential mechanical basin mixer.
Sequential over a 90° range: opens and closes with cold water.
Fixed flat under-spout, L. 200mm with hygienic flow straightener suitable for fitting a BIOFIL point-of-use filter.
Securitouch thermal insulation prevents burns.
Ø 35mm ceramic cartridge.
Pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume (reduces bacterial development).
Flow rate regulated at 5 lpm.
Hygiene lever L. 150mm.
Supplied with 2 wall-mounted standard connectors, M1/2" M3/4".
Suitable for people with reduced mobility.
30-year warranty.
Sequential over a 90° range: opens and closes with cold water.
Fixed flat under-spout, L. 200mm with hygienic flow straightener suitable for fitting a BIOFIL point-of-use filter.
Securitouch thermal insulation prevents burns.
Ø 35mm ceramic cartridge.
Pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume (reduces bacterial development).
Flow rate regulated at 5 lpm.
Hygiene lever L. 150mm.
Supplied with 2 wall-mounted standard connectors, M1/2" M3/4".
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES

Sequential: opens and closes with cold water

Maximum hygiene: manages biofilm

No non-return valves

No manual contact: Hygiene lever

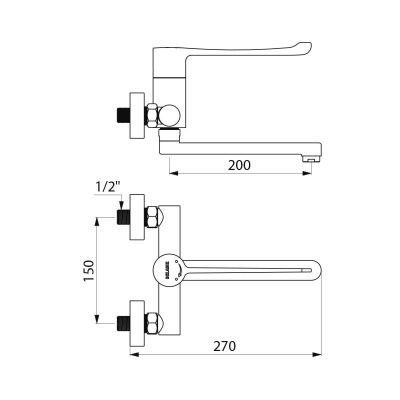

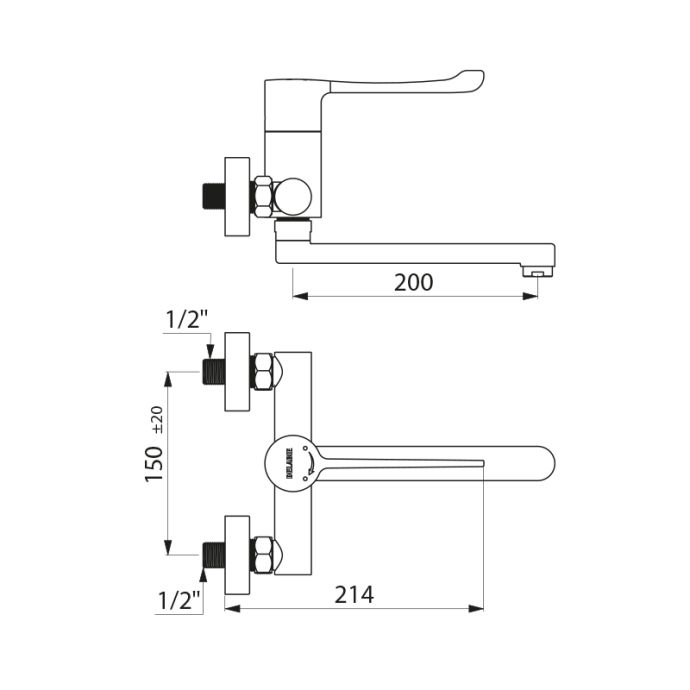

TECHNICAL CHARACTERISTICS
Wall-mounted sequential mechanical basin mixer
Ref. 2437S| Connector | M1/2" |
| Technology | Sequential mechanical mixer |
| Spout length | 200mm |
| Flow rate | 5 lpm |
| Temperature limiter | YES |
| Finish | Chrome-plated brass |
| Warranty | |
| Repairability | ![]() |
Spare parts

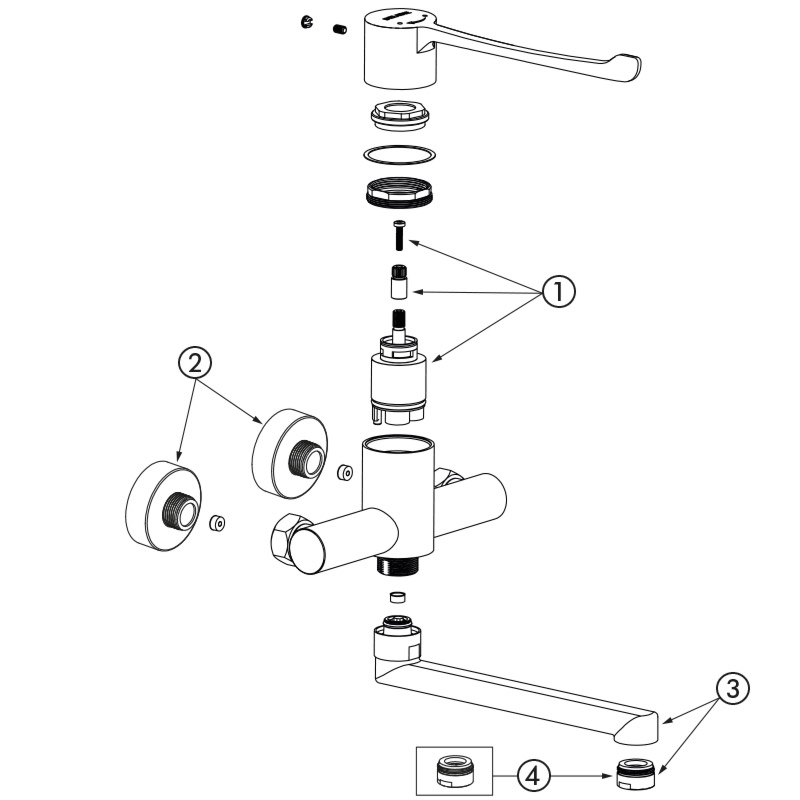

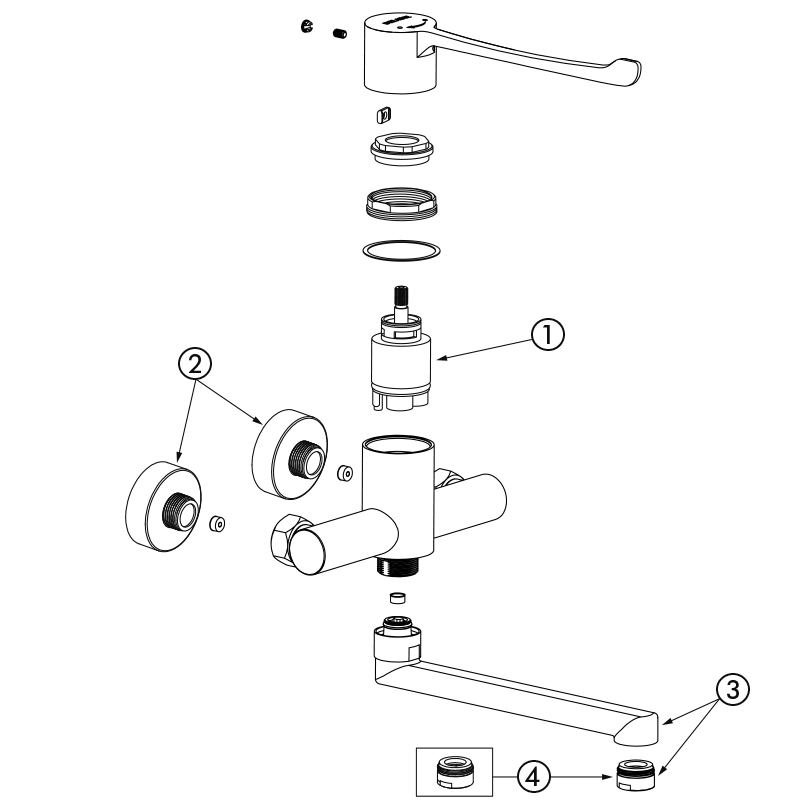

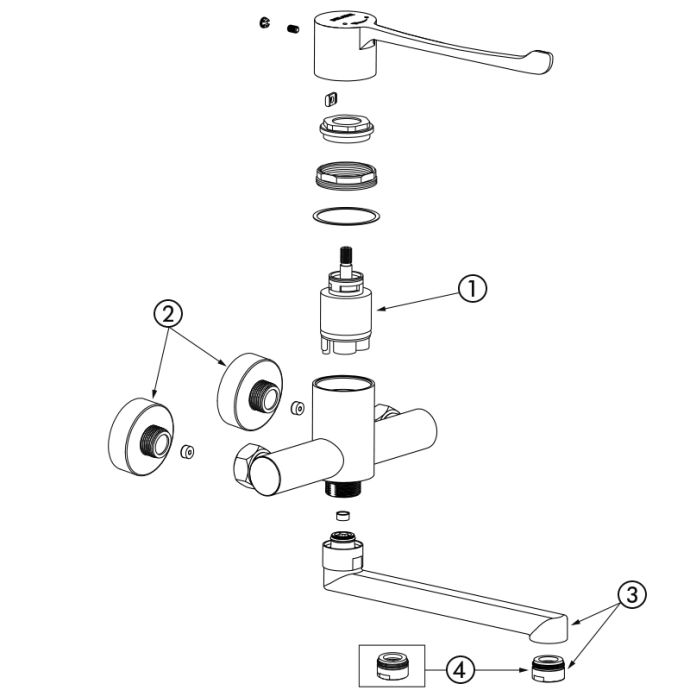

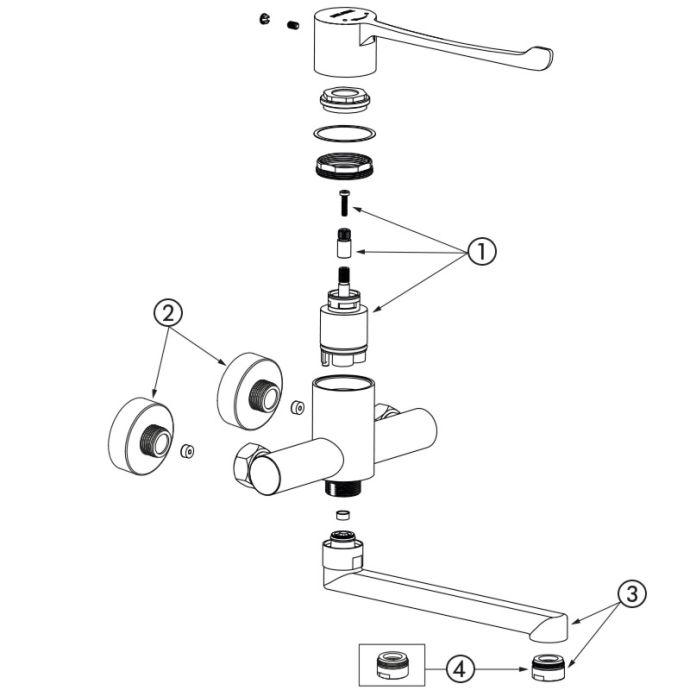

SPARE PARTS
Wall-mounted sequential mechanical basin mixer
Ref. 2437S
| 1. | N243I |
|
Ø35mm ceramic sequential cartridge |
| 2. | 856794.2P |
|
Offset union |
| 3. | 947200 |
|
Flat fixed spout |
| 4. | 921024.2P |
|
Star-shaped flow straightener |
VARIANTS
| 2436S | Swivelling spout L. 200mm - Standard offset connectors, 150mm centres | ||
|---|---|---|---|
| 2436 | Swivelling spout L. 200mm - Offset STOP/CHECK connectors, 150mm centres | ||
| 2437 | Fixed spout L. 200mm - Offset STOP/CHECK connectors, 150mm centres |
VARIANTS
| 2436S | Swivelling spout L. 200mm - Standard offset connectors, 150mm centres | ||
|---|---|---|---|
| 2436 | Swivelling spout L. 200mm - Offset STOP/CHECK connectors, 150mm centres | ||
| 2437 | Fixed spout L. 200mm - Offset STOP/CHECK connectors, 150mm centres |
