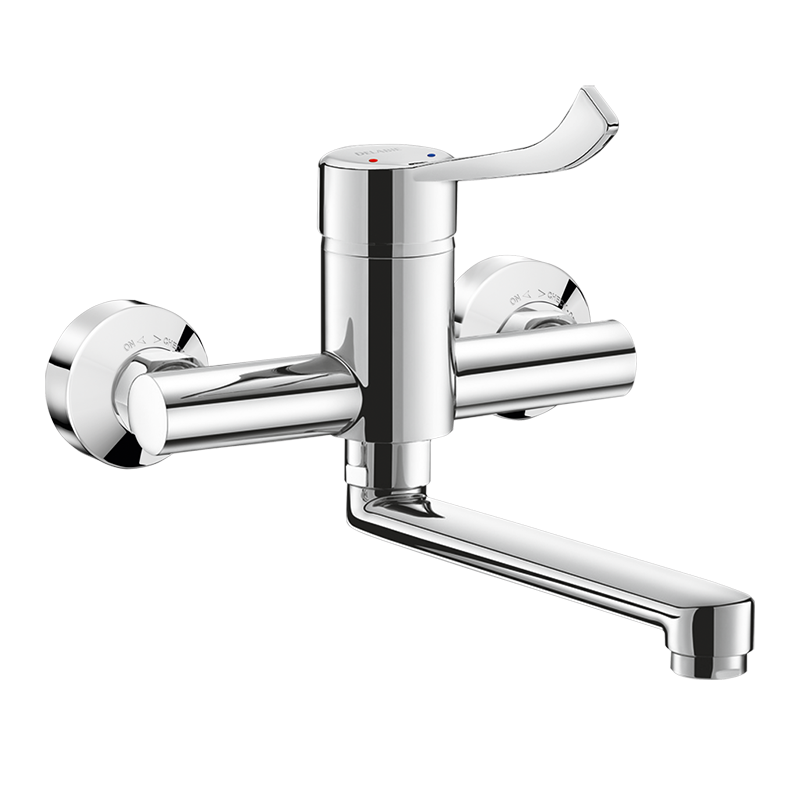

Mechanical basin mixer
Ref. 2445L
Wall-mounted mixer with swivel spout L .200mm, Hygiene lever L. 150mm
Wall-mounted mixer with swivel spout L .200mm, Hygiene lever L. 150mm
DESCRIPTION
Mechanical basin mixer
Ref. 2445LWall-mounted mechanical basin mixer.
Mechanical mixerwith flat, swivelling under spout L. 200mm with hygienic flow straightener.
Spout suitable for fitting a BIOFIL point-of-use filter.
Mixer with Securitouch thermal insulation prevents burns.
Ø 40mm standard ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 5 lpm.
Chrome-plated brass body.
Hygiene control lever L. 150mm requires no manual contact..
Mixer with 150mm centres supplied with offset STOP/CHECK connectors M1/2" M3/4" ideal for hospitals.
Recommended installation height: 110 - 200mm above the basin surface.
Mechanical mixer ideal for healthcare facilities, retirement and care homes. hospitals and clinics.
Mixer suitable for people with reduced mobility.
Wall-mounted mixer with 30-year warranty.
Mechanical mixerwith flat, swivelling under spout L. 200mm with hygienic flow straightener.
Spout suitable for fitting a BIOFIL point-of-use filter.
Mixer with Securitouch thermal insulation prevents burns.
Ø 40mm standard ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 5 lpm.
Chrome-plated brass body.
Hygiene control lever L. 150mm requires no manual contact..
Mixer with 150mm centres supplied with offset STOP/CHECK connectors M1/2" M3/4" ideal for hospitals.
Recommended installation height: 110 - 200mm above the basin surface.
Mechanical mixer ideal for healthcare facilities, retirement and care homes. hospitals and clinics.
Mixer suitable for people with reduced mobility.
Wall-mounted mixer with 30-year warranty.
ADVANTAGES
Hygiene: smooth interior reduces bacteria
Pre-set maximum temperature limiter
Securitouch thermal insulation prevents burns
Hygiene control lever requires no manual contact

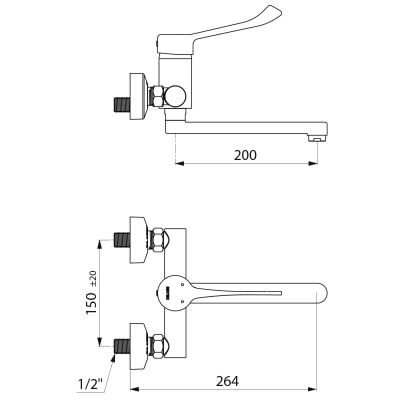

TECHNICAL CHARACTERISTICS
Mechanical basin mixer
Ref. 2445L| Connector | M1/2" |
| Technology | Securitouch |
| Spout length | 200mm |
| Flow rate | 5 lpm |
| Temperature limiter | YES |
| Finish | Chrome-plated |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Spare parts

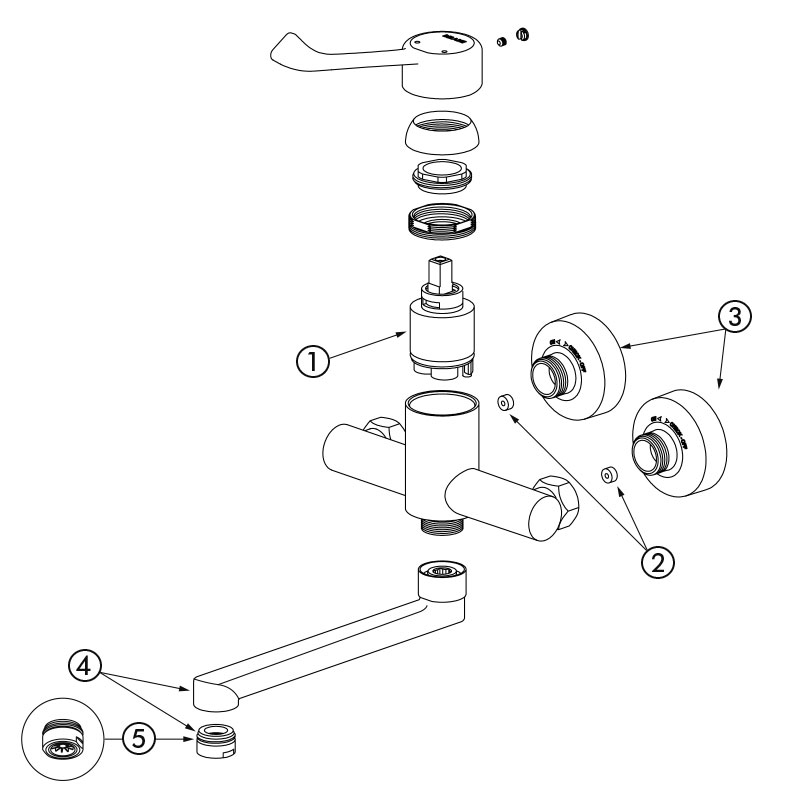

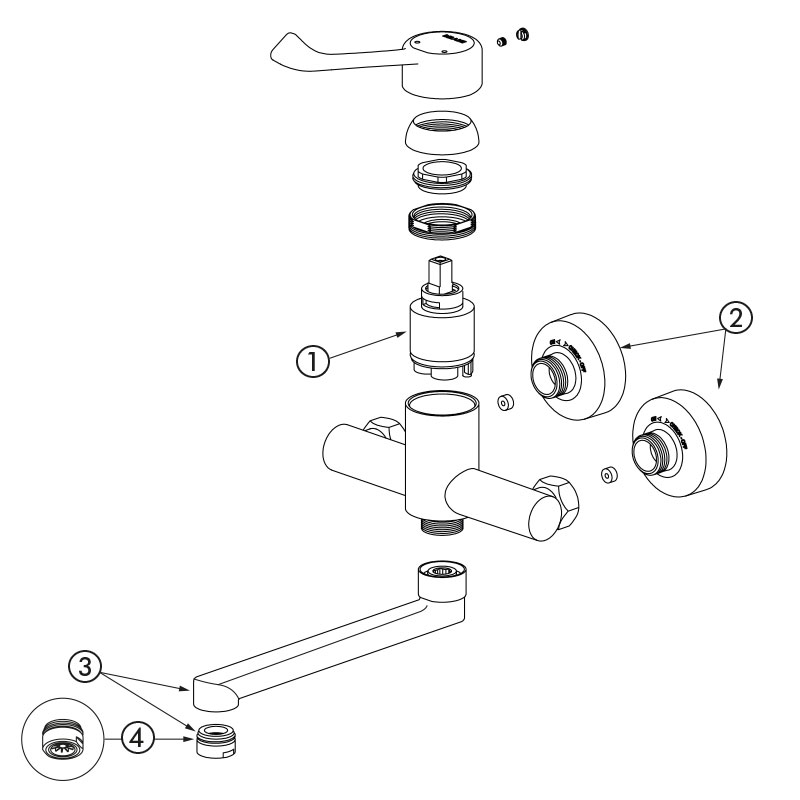

SPARE PARTS
Mechanical basin mixer
Ref. 2445L
| 1. | N009AG75 |
|
Ø40mm ceramic cartridge |
| 2. | 900005 |
|
Flow limiter |
| 3. | 855755.2P |
|
Offset connectors |
| 4. | 943200 |
|
Flat swivelling spout |
| 5. | 921024.2P |
|
Star-shaped flow straightener |
VARIANTS

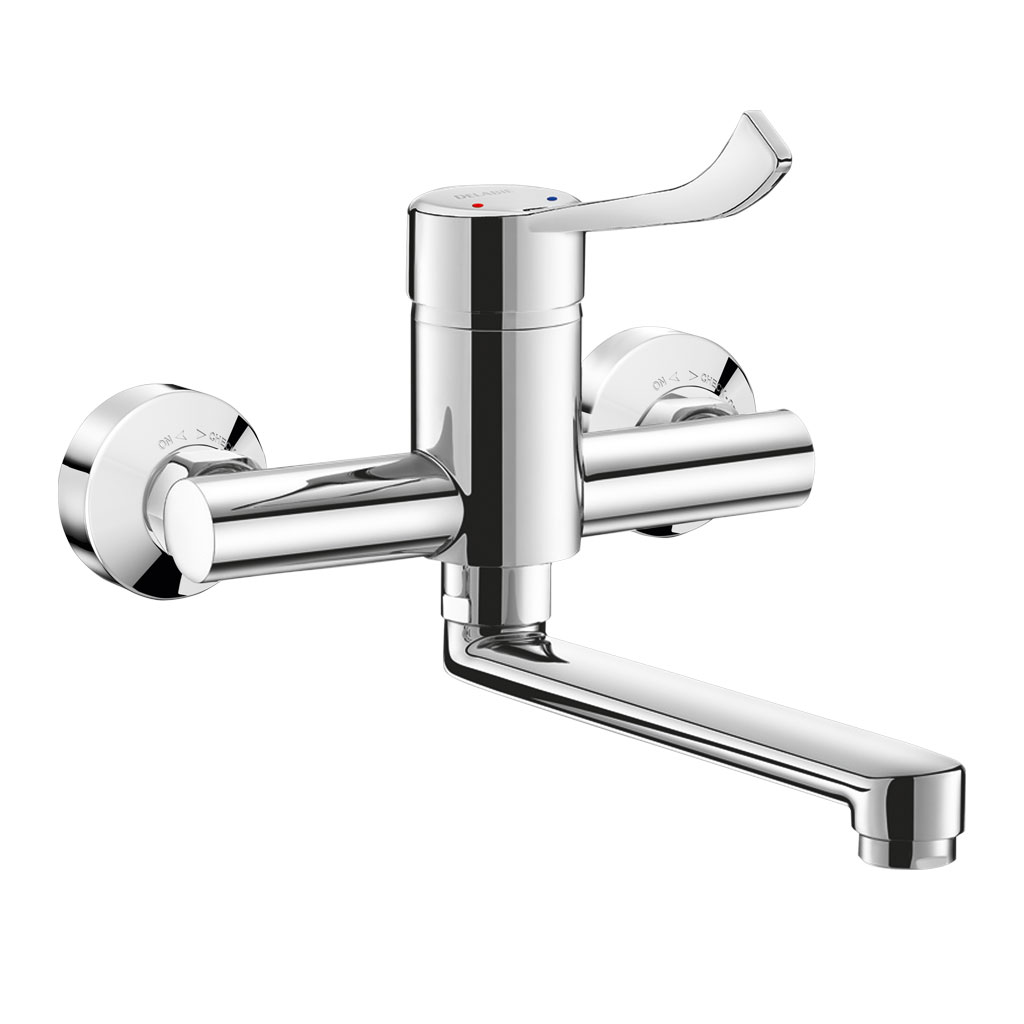

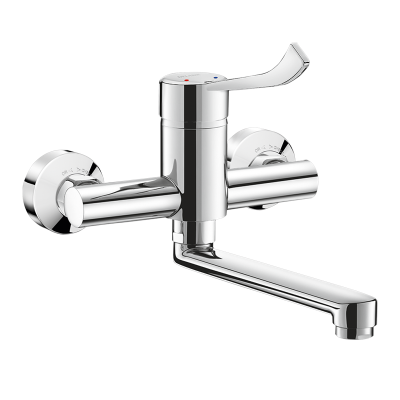

| 2446EP | EP cartridge - swivel spout L. 150mm - sculpt lever, STOP/CHECK unions | ||
|---|---|---|---|
| 2446EPS | EP cartridge - swivel spout L. 150mm - sculpt lever, standard unions | ||
| 2446LEP | EP cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions | ||
| 2446LEPS | EP cartridge - swivel spout L. 150mm - Hygiene lever, standard unions | ||
| 2445EP | EP cartridge - Spout L. 200mm - Sculptured lever - Offset STOP/CHECK unions | ||
| 2445EPS | EP cartridge - Spout L. 200mm - Sculptured lever - Offset standard unions | ||
| 2445LEP | EP cartridge - Spout L. 200mm - Hygiene lever - Offset STOP/CHECK unions | ||
| 2445LEPS | EP cartridge - swivel spout L. 200mm - Hygiene lever, standard unions | ||
| 2446 | Std cartridge - swivel spout L.150mm - sculpt lever, STOP/CHECK unions | ||
| 2446S | Std cartridge - swivel spout L. 150mm - sculpt lever, standard unions | ||
| 2446L | Std cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions | ||
| 2446LS | Std cartridge - swivel spout L. 150mm - Hygiene lever, standard unions | ||
| 2445 | Std cartridge - Spout L.200mm - Sculpt lever, offset STOP/CHECK unions | ||
| 2445S | Std cartridge - Spout L.200mm - Sculptured lever - Offset standard unions | ||
| 2445LS | Standard cartridge - Spout L. 200mm - Hygiene lever - Offset standard unions |
Infection control: mixer body and spout with smooth interiors
Ergonomic: wall-mounted mixer with Hygiene lever can be controlled without manual contact
Associated products
HYGIÉNA waste
Pre-scored waste with concave grid
Ref. 611
Push-fit BIOFIL connector F22/100
For tap filters
Ref. 820122N
BIOFIL 2-month tap and wall shower filter
Sterile
Ref. 20251
VARIANTS
| 2446EP | EP cartridge - swivel spout L. 150mm - sculpt lever, STOP/CHECK unions | ||
|---|---|---|---|
| 2446EPS | EP cartridge - swivel spout L. 150mm - sculpt lever, standard unions | ||
| 2446LEP | EP cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions | ||
| 2446LEPS | EP cartridge - swivel spout L. 150mm - Hygiene lever, standard unions | ||
| 2445EP | EP cartridge - Spout L. 200mm - Sculptured lever - Offset STOP/CHECK unions | ||
| 2445EPS | EP cartridge - Spout L. 200mm - Sculptured lever - Offset standard unions | ||
| 2445LEP | EP cartridge - Spout L. 200mm - Hygiene lever - Offset STOP/CHECK unions | ||
| 2445LEPS | EP cartridge - swivel spout L. 200mm - Hygiene lever, standard unions | ||
| 2446 | Std cartridge - swivel spout L.150mm - sculpt lever, STOP/CHECK unions | ||
| 2446S | Std cartridge - swivel spout L. 150mm - sculpt lever, standard unions | ||
| 2446L | Std cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions | ||
| 2446LS | Std cartridge - swivel spout L. 150mm - Hygiene lever, standard unions | ||
| 2445 | Std cartridge - Spout L.200mm - Sculpt lever, offset STOP/CHECK unions | ||
| 2445S | Std cartridge - Spout L.200mm - Sculptured lever - Offset standard unions | ||
| 2445LS | Standard cartridge - Spout L. 200mm - Hygiene lever - Offset standard unions |
Infection control: mixer body and spout with smooth interiors
Ergonomic: wall-mounted mixer with Hygiene lever can be controlled without manual contact
