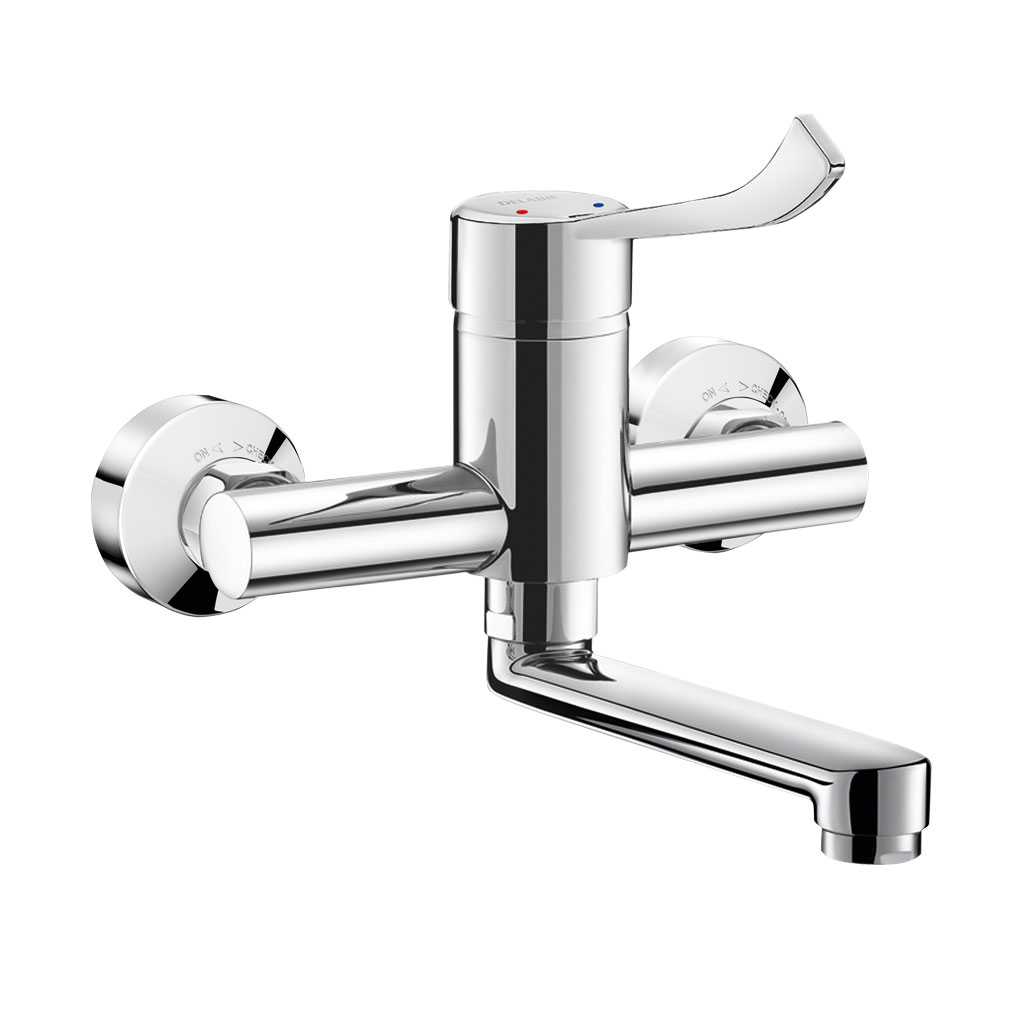

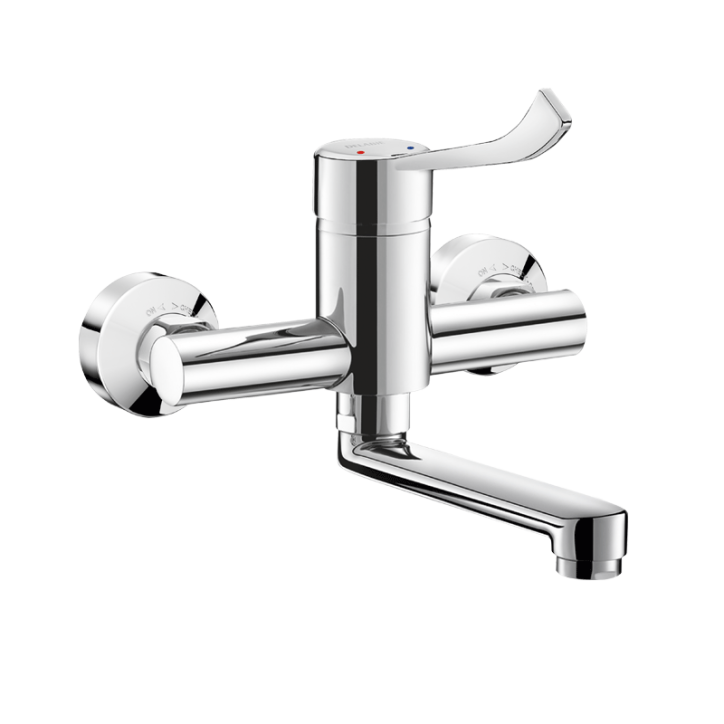

Mechanical basin mixer
Ref. 2446L
Wall-mounted mixer with swivelling spout L. 150, Hygiene lever L. 150
Wall-mounted mixer with swivelling spout L. 150, Hygiene lever L. 150
DESCRIPTION
Mechanical basin mixer
Ref. 2446LWall-mounted mechanical basin mixer.
Swivelling, flat under-spout L. 150mm in chrome-plated brass with hygienic flow straightener suitable for fitting a BIOFIL terminal filter.
Securitouch thermal insulation prevents burns.
Ø 40mm ceramic cartridge and pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume (reduce niches where bacteria can develop).
Flow rate regulated at 5 lpm.
Chrome-plated brass body.
Hygiene control lever L. 150mm.
Supplied with STOP/CHECK connectors, M1/2" M3/4", ideal for hospitals.
30-year warranty.
Swivelling, flat under-spout L. 150mm in chrome-plated brass with hygienic flow straightener suitable for fitting a BIOFIL terminal filter.
Securitouch thermal insulation prevents burns.
Ø 40mm ceramic cartridge and pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume (reduce niches where bacteria can develop).
Flow rate regulated at 5 lpm.
Chrome-plated brass body.
Hygiene control lever L. 150mm.
Supplied with STOP/CHECK connectors, M1/2" M3/4", ideal for hospitals.
30-year warranty.
ADVANTAGES

Smooth body/spout interior, reduces bacteria

Pre-set maximum temperature limiter

Securitouch thermal insulation prevents burns

Hygiene control lever requires no manual contact

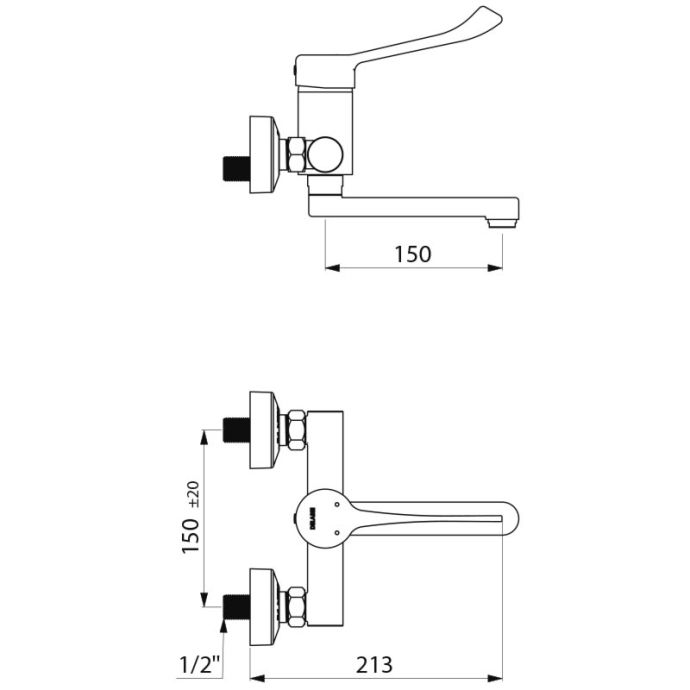

TECHNICAL CHARACTERISTICS
Mechanical basin mixer
Ref. 2446L| Connector | M1/2" |
| Technology | Securitouch |
| Spout length | 150mm |
| Flow rate | 5 lpm |
| Finish | Chrome-plated brass |
| Certificates |
|
| Warranty | |
| Repairability | ![]() |

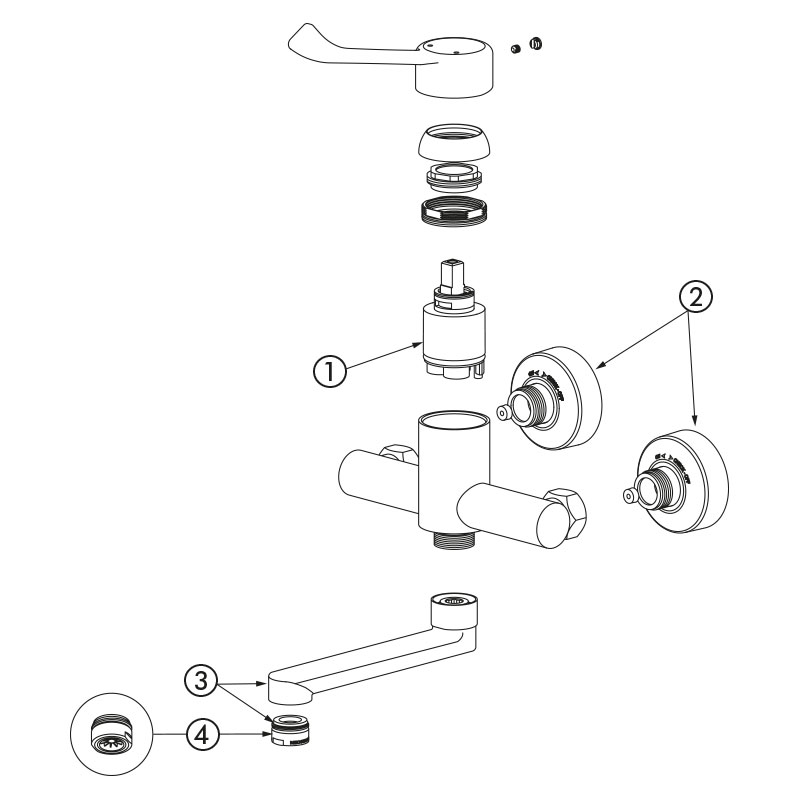

Spare parts
SPARE PARTS
Mechanical basin mixer
Ref. 2446L
| 1. | N009AG75 |
|
Ø40mm ceramic cartridge |
| 2. | 855755.2P |
|
Offset connectors |
| 3. | 900005 |
|
Flow limiter |
| 4. | 943150 |
|
Flat swivelling under spout |
| 5. | 921024.2P |
|
Star-shaped flow straightener |
VARIANTS
| 2446EP | EP cartridge - swivel spout L. 150mm - sculpt lever, STOP/CHECK unions | ||
|---|---|---|---|
| 2446EPS | EP cartridge - swivel spout L. 150mm - sculpt lever, standard unions | ||
| 2446LEP | EP cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions | ||
| 2446LEPS | EP cartridge - swivel spout L. 150mm - Hygiene lever, standard unions | ||
| 2445EP | EP cartridge - Spout L. 200mm - Sculptured lever - Offset STOP/CHECK unions | ||
| 2445EPS | EP cartridge - Spout L. 200mm - Sculptured lever - Offset standard unions | ||
| 2445LEP | EP cartridge - Spout L. 200mm - Hygiene lever - Offset STOP/CHECK unions | ||
| 2445LEPS | EP cartridge - swivel spout L. 200mm - Hygiene lever, standard unions | ||
| 2446 | Std cartridge - swivel spout L.150mm - sculpt lever, STOP/CHECK unions | ||
| 2446S | Std cartridge - swivel spout L. 150mm - sculpt lever, standard unions | ||
| 2446LS | Std cartridge - swivel spout L. 150mm - Hygiene lever, standard unions | ||
| 2445 | Std cartridge - Spout L.200mm - Sculpt lever, offset STOP/CHECK unions | ||
| 2445S | Std cartridge - Spout L.200mm - Sculptured lever - Offset standard unions | ||
| 2445L | Standard cartridge - Spout L. 200mm - Hygiene lever - offset STOP/CHECK unions | ||
| 2445LS | Standard cartridge - Spout L. 200mm - Hygiene lever - Offset standard unions |
VARIANTS
| 2446EP | EP cartridge - swivel spout L. 150mm - sculpt lever, STOP/CHECK unions | ||
|---|---|---|---|
| 2446EPS | EP cartridge - swivel spout L. 150mm - sculpt lever, standard unions | ||
| 2446LEP | EP cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions | ||
| 2446LEPS | EP cartridge - swivel spout L. 150mm - Hygiene lever, standard unions | ||
| 2445EP | EP cartridge - Spout L. 200mm - Sculptured lever - Offset STOP/CHECK unions | ||
| 2445EPS | EP cartridge - Spout L. 200mm - Sculptured lever - Offset standard unions | ||
| 2445LEP | EP cartridge - Spout L. 200mm - Hygiene lever - Offset STOP/CHECK unions | ||
| 2445LEPS | EP cartridge - swivel spout L. 200mm - Hygiene lever, standard unions | ||
| 2446 | Std cartridge - swivel spout L.150mm - sculpt lever, STOP/CHECK unions | ||
| 2446S | Std cartridge - swivel spout L. 150mm - sculpt lever, standard unions | ||
| 2446LS | Std cartridge - swivel spout L. 150mm - Hygiene lever, standard unions | ||
| 2445 | Std cartridge - Spout L.200mm - Sculpt lever, offset STOP/CHECK unions | ||
| 2445S | Std cartridge - Spout L.200mm - Sculptured lever - Offset standard unions | ||
| 2445L | Standard cartridge - Spout L. 200mm - Hygiene lever - offset STOP/CHECK unions | ||
| 2445LS | Standard cartridge - Spout L. 200mm - Hygiene lever - Offset standard unions |
