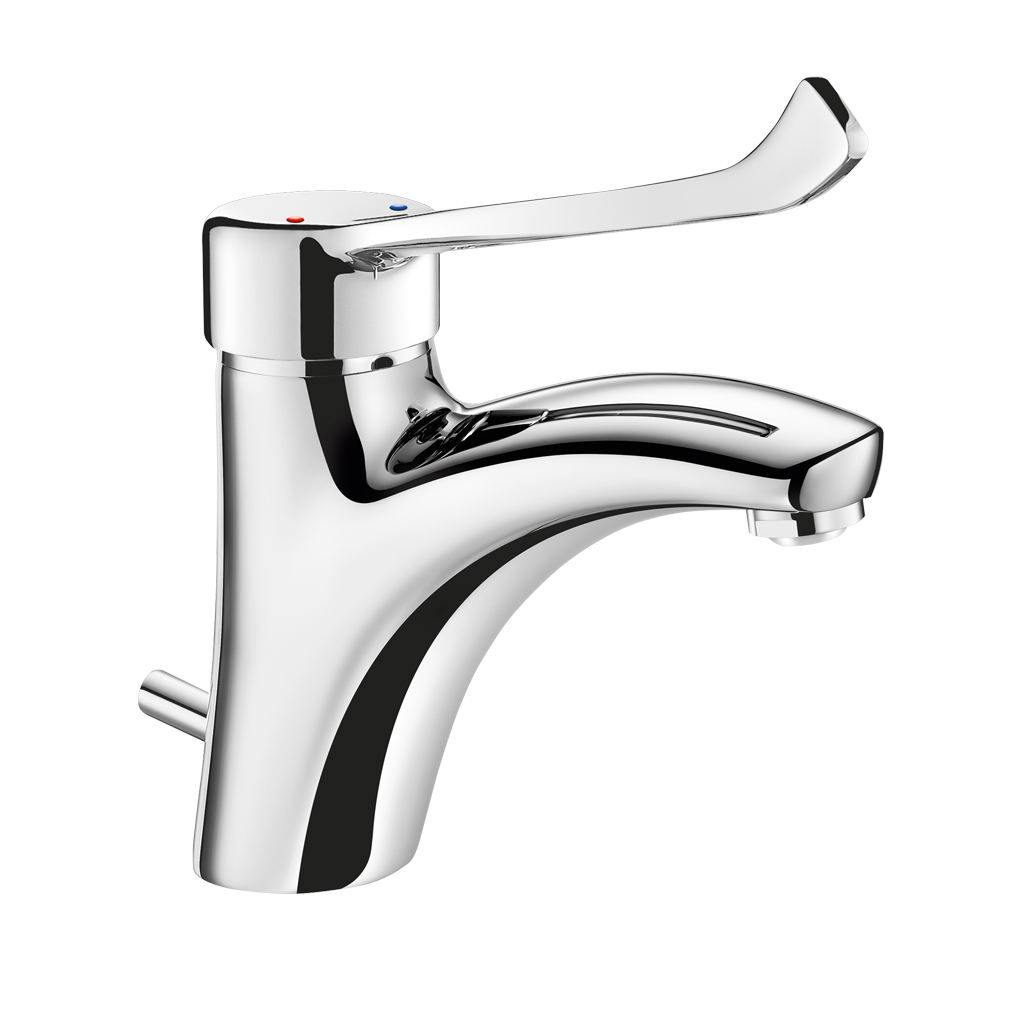

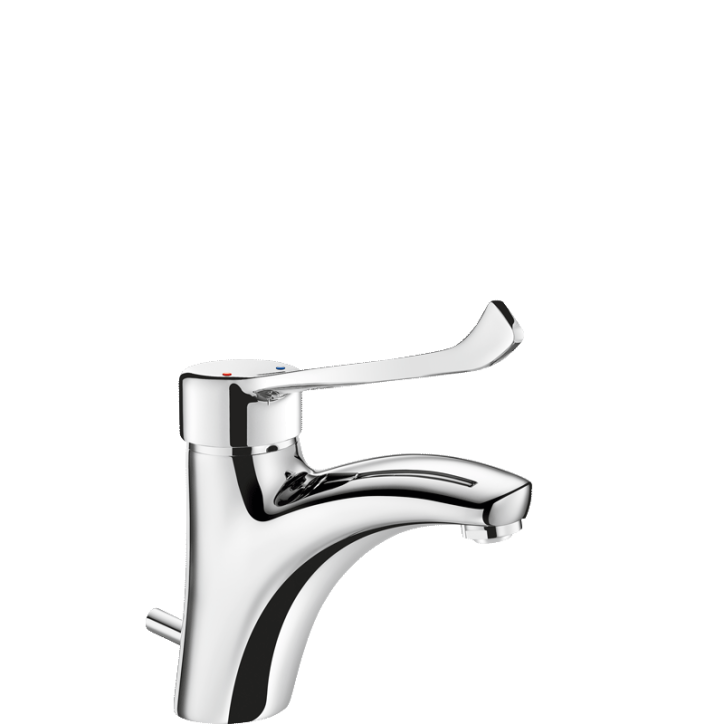

Deck-mounted mechanical basin mixer with pressure-balancing.
Single hole mixer with spout H. 85mm L. 135mm with BIOSAFE hygienic spout outlet.
Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.

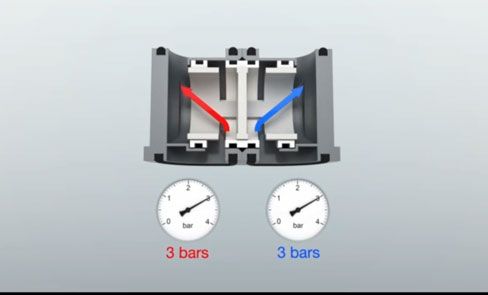

Anti-scalding safety: HW flow rate is reduced if cold water supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate in the system.
Flow rate limited to 5 lpm at 3 bar.
Hygiene control lever L. 150mm.
Ergonomic, brass pop-up waste 1 1/4".
F3/8" PEX flexibles with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Advantages
HW flow rate reduced if CW fails
EP: reduces temperature variations
Hygiene: BIOSAFE hygienic outlet with no grid
Hygiene control lever requires no manual contact
SECURITHERM EP pressure-balancing basin mixer
Ref. 2520LEP
Connector
F3/8"
Technology
SECURITHERM EP mechanical mixer

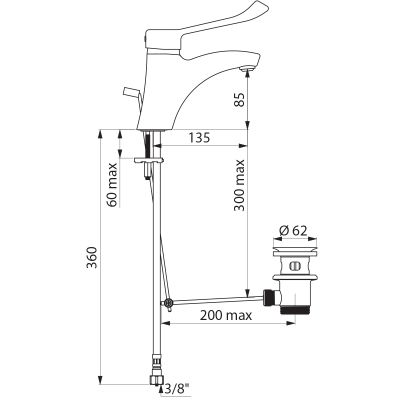

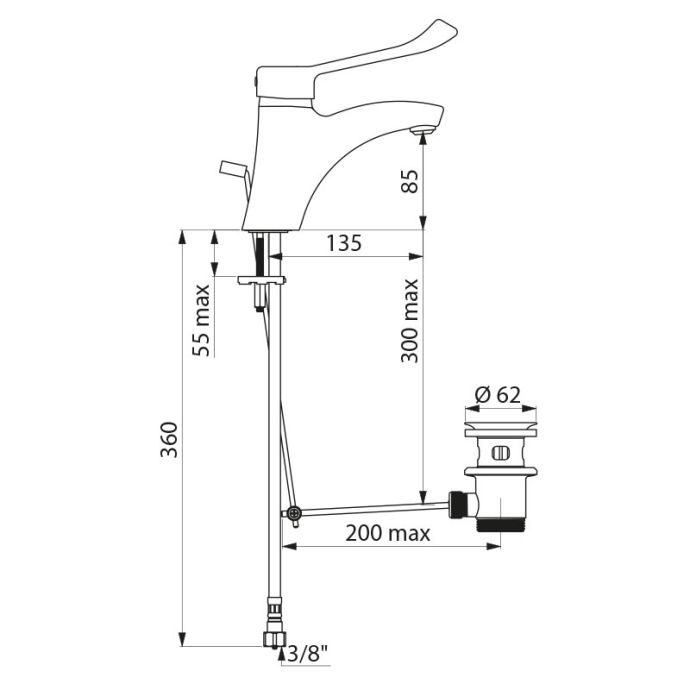

Height
185mm
Drop height
85mm
Spout length
135mm
Flow rate
5 lpm at 3 bar
Temperature limiter
Yes
Finish
Chrome-plated stainless steel
Certificates
Warranty

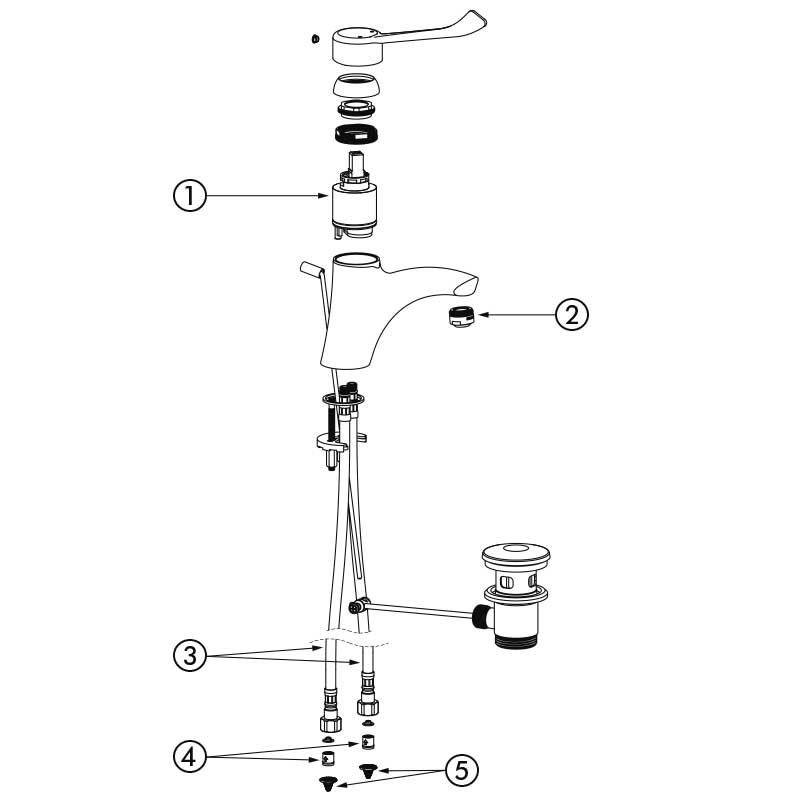

Repairability
SECURITHERM EP pressure-balancing basin mixer
Ref.
2520LEP
