Mechanical basin mixer

Ref. 2521
Single hole mechanical mixer H. 85mm, L. 135mm
See variants See variants

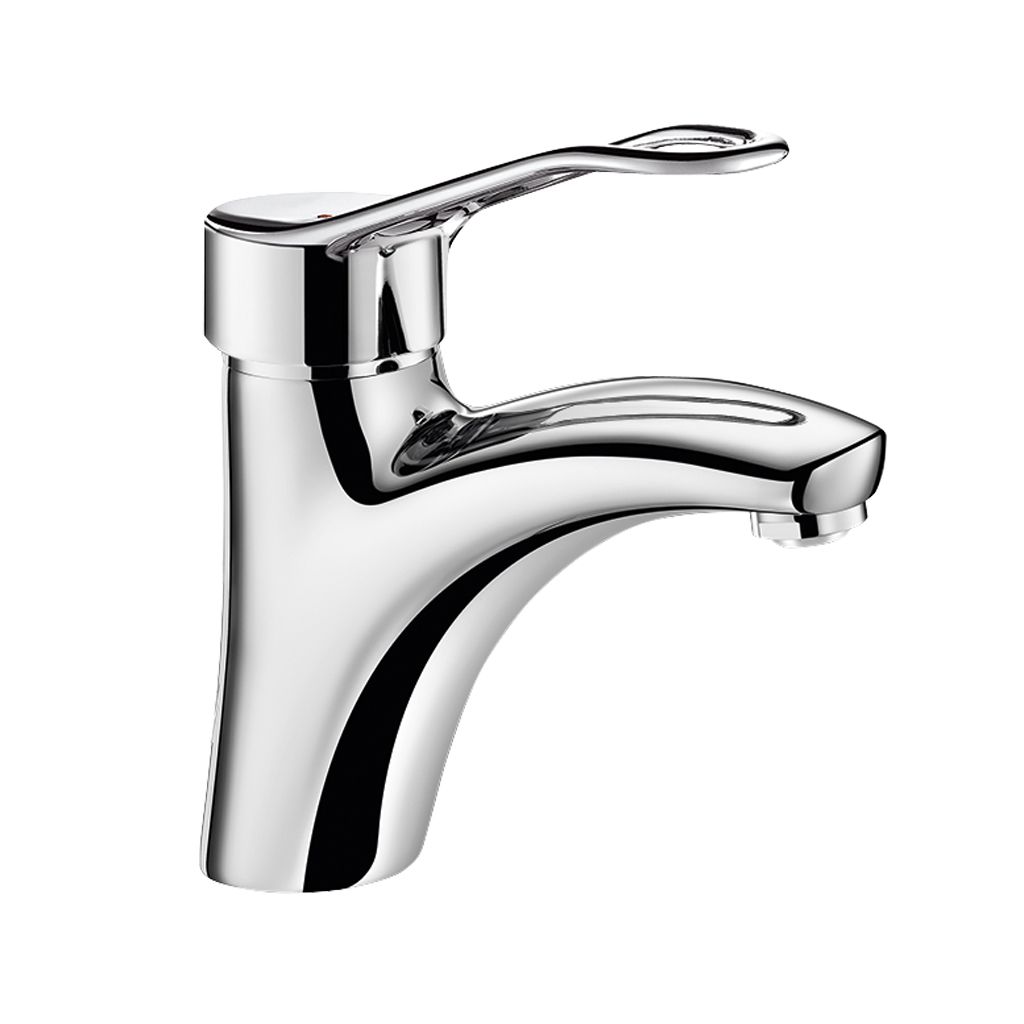

Mechanical basin mixer

Presentation

DESCRIPTION

Mechanical basin mixer

Ref. 2521
Deck-mounted mechanical basin mixer.
Single hole mechanical mixer H. 85mm L. 135mm with BIOSAFE hygienic outlet.
Ø 40mm classic ceramic cartridge with pre-set maximum temperature limiter.
Flow rate limited to 5 lpm at 3 bar.
Sculptured control lever.
Without pop-up waste.
PEX flexibles F3/8".
Reinforced fixing via 2 stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

Pre-set maximum temperature limiter

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: BIOSAFE hygienic outlet with no grid

Confort - Ergonomie - Déclenchement souple

Ergonomic: sculptured lever is easy to grip

Economie d'eau

Water saving: flow rate limited to 5 lpm at 3 bar

Characteristics

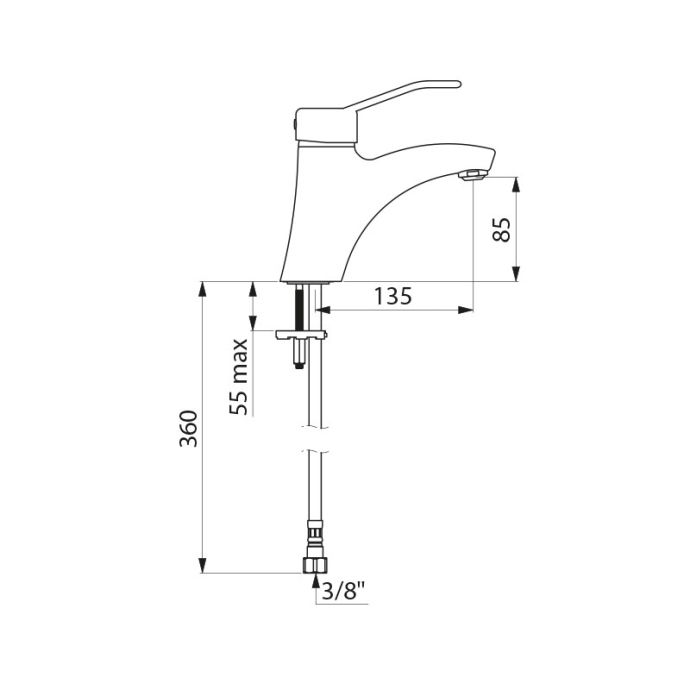

TECHNICAL CHARACTERISTICS

Mechanical basin mixer

Ref. 2521
Connector F3/8"
Height 165mm
Drop height 85mm
Spout length 135mm
Flow rate 5 lpm at 3 bar
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS NF DIN-DVGW SINTEF PZH DoP
Warranty 30-Year
Repairability
Mechanical basin mixer
Ref. 2521

Downloads

DOWNLOADS

Mechanical basin mixer

Ref. 2521

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

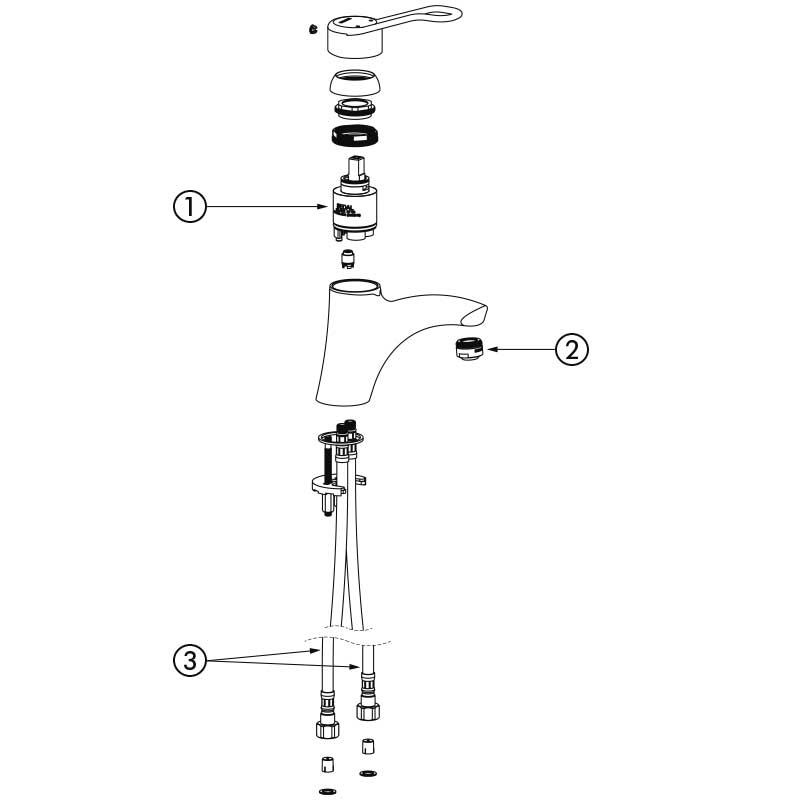

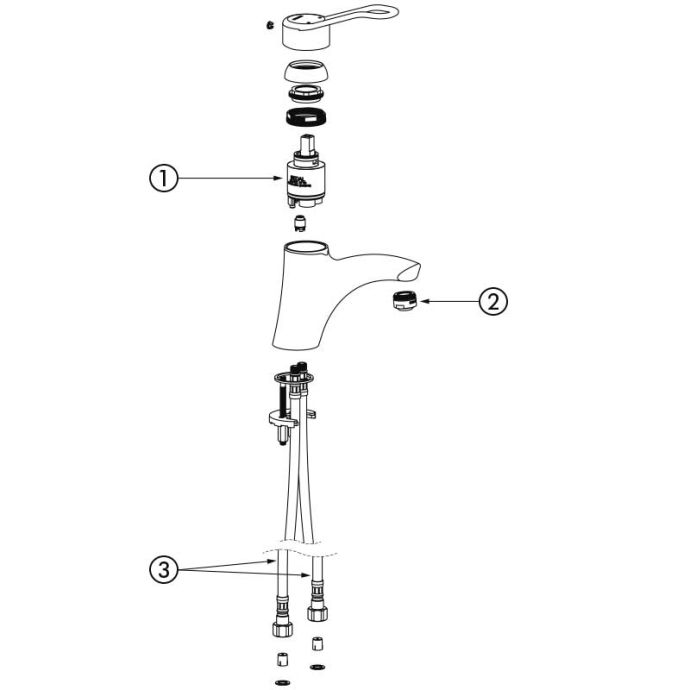

SPARE PARTS

Mechanical basin mixer

Ref. 2521
1. N009AG75
Ø40mm ceramic cartridge
2. 923024
Hygienic BIOSAFE outlet M24/100
3. 2520SES
Locking kit
4. FLEXPEX2
F3/8" PEX flexible hoses

VARIANTS

2521TEP EP cartridge - solid lever - no pop-up waste
2521EP EP cartridge - sculptured lever - no pop-up waste
2521LEP EP cartridge - Hygiene lever - no pop-up waste
2520TEP EP cartridge - solid lever - pop-up waste
2520EP EP cartridge - sculptured lever - pop-up waste
2520LEP EP cartridge - Hygiene lever - pop-up waste
2521T Standard cartridge - solid lever - no pop-up waste
2521L Standard cartridge - Hygiene lever - no pop-up waste
2520T Standard cartridge - solid lever - pop-up waste
2520 Standard cartridge - sculptured lever - pop-up waste
2520L Standard cartridge - Hygiene lever - pop-up waste
Ergonomic: basin mixer with sculptured lever, easy to grip
Ergonomic: basin mixer with sculptured lever, easy to grip
