SECURITHERM EP pressure-balancing basin mixer
Ref. 2565T1EP
Tall, single hole, single control mixer with EP cartridge
Tall, single hole, single control mixer with EP cartridge
DESCRIPTION
SECURITHERM EP pressure-balancing basin mixer
Ref. 2565T1EPDeck-mounted basin mixer with SECURITHERM pressure-balancing.
Single hole, single control mixer with fixed spout H. 165mm L. 140mm.
Tall mixer with BIOSAFE hygienic flow straightener suitable for fitting a BIOFIL terminal filter.

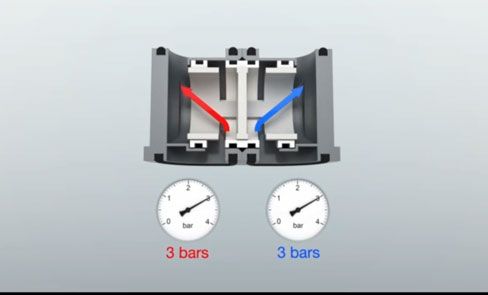

Total anti-scalding safety: HW flow rate is reduced if CW water supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Ø 35mm ceramic pressure-balancing cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are easy to undertake a thermal shock without removing the lever or shutting off the cold water supply.
Flow rate regulated at 5 lpm.
Body and base made from chrome-plated brass.
Hygiene control lever L. 185mm requires no manual contact.
Supplied with F3/8" PEX flexibles with filters and non-return valves.
Reinforced fixing via 2 stainless steel rods.
Mechanical mixer with pressure-balancing ideal for for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
30-year warranty.
Single hole, single control mixer with fixed spout H. 165mm L. 140mm.
Tall mixer with BIOSAFE hygienic flow straightener suitable for fitting a BIOFIL terminal filter.
Total anti-scalding safety: HW flow rate is reduced if CW water supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Ø 35mm ceramic pressure-balancing cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are easy to undertake a thermal shock without removing the lever or shutting off the cold water supply.
Flow rate regulated at 5 lpm.
Body and base made from chrome-plated brass.
Hygiene control lever L. 185mm requires no manual contact.
Supplied with F3/8" PEX flexibles with filters and non-return valves.
Reinforced fixing via 2 stainless steel rods.
Mechanical mixer with pressure-balancing ideal for for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES

EP: HW flow rate reduced if CW fails

EP: reduces pressure variations

Thermal shock without removing the control lever

Hygiene: smooth interior reduces bacteria

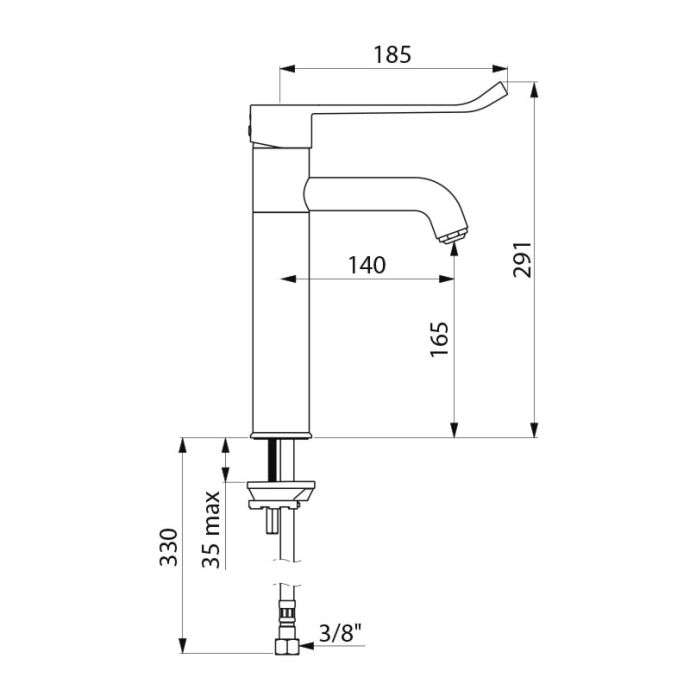

TECHNICAL CHARACTERISTICS
SECURITHERM EP pressure-balancing basin mixer
Ref. 2565T1EP| Connector | F3/8" |
| Technology | SECURITHERM EP mixer |
| Height | 291mm |
| Drop height | 165mm |
| Spout length | 140mm |
| Flow rate | 5 lpm |
| Temperature limiter | Yes |
| Finish | Chrome-plated brass |
| Certificates |
|
| Warranty | |
| Repairability | ![]() |
Spare parts

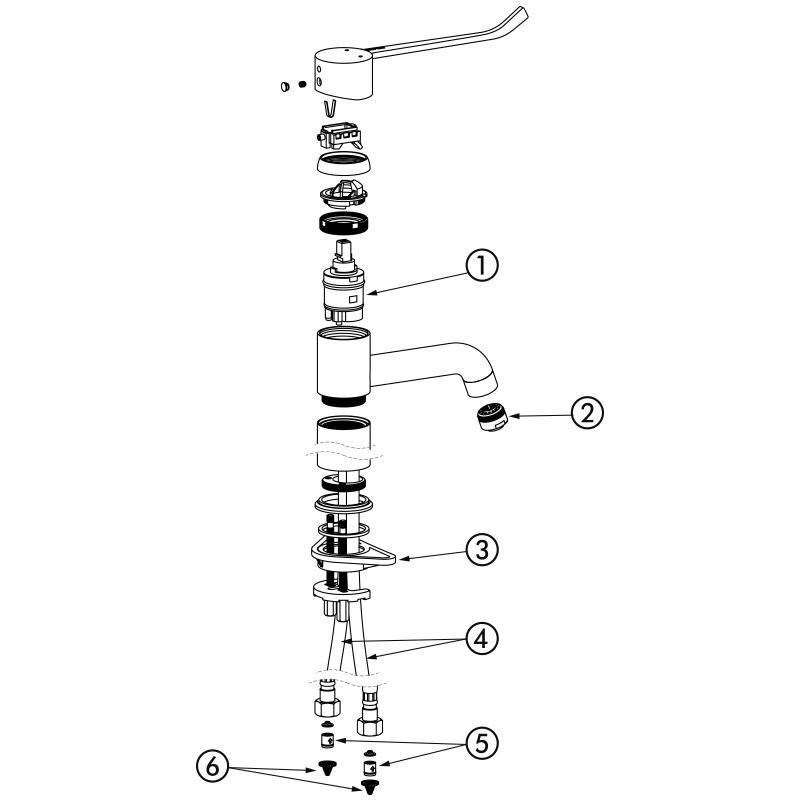

SPARE PARTS
SECURITHERM EP pressure-balancing basin mixer
Ref. 2565T1EP
After April 2021
| 1. | N262 |
|
Ø35mm ceramic pressure balancing cartridge |
| 2. | 922640 |
|
BIOSAFE hygienic outlet M24/100 |
| 3. | 256P |
|
Fixing plate |
| 4. | 2510SES |
|
Locking kit |
| 5. | FLEXPEX3 |
|
F3/8" PEX flexible hoses |
| 6. | 900010 |
|
Non-return valve |
| 7. | 60438.10P |
|
Conical filter |
VARIANTS
| 2564T5EP | EP cartridge - swivelling spout H. 205mm L. 170mm | ||
|---|---|---|---|
| 2565T5EP | EP cartridge - fixed spout H. 205mm L. 170mm | ||
| 2564T1EP | EP cartridge - swivelling spout H. 165mm L. 140mm | ||
| 2564T2EP | EP cartridge - swivelling spout H. 165mm L. 220mm | ||
| 2564T5 | Standard cartridge - swivelling spout H. 205mm L. 170mm | ||
| 2565T5 | Standard cartridge - fixed spout H. 205mm L. 170mm | ||
| 2564T1 | Standard cartridge - swivelling spout H. 165mm L. 140mm | ||
| 2565T1 | Standard cartridge - fixed spout H. 165mm L. 140mm | ||
| 2564T2 | Standard cartridge - swivelling spout H. 165mm L. 220mm |
VARIANTS
| 2564T5EP | EP cartridge - swivelling spout H. 205mm L. 170mm | ||
|---|---|---|---|
| 2565T5EP | EP cartridge - fixed spout H. 205mm L. 170mm | ||
| 2564T1EP | EP cartridge - swivelling spout H. 165mm L. 140mm | ||
| 2564T2EP | EP cartridge - swivelling spout H. 165mm L. 220mm | ||
| 2564T5 | Standard cartridge - swivelling spout H. 205mm L. 170mm | ||
| 2565T5 | Standard cartridge - fixed spout H. 205mm L. 170mm | ||
| 2564T1 | Standard cartridge - swivelling spout H. 165mm L. 140mm | ||
| 2565T1 | Standard cartridge - fixed spout H. 165mm L. 140mm | ||
| 2564T2 | Standard cartridge - swivelling spout H. 165mm L. 220mm |
