Ref. 2239EPS
Wall-mounted single control mixer, sculptured lever
7 variants
2539EP -
EP cartridge - Long sculptured lever - STOP/CHECK connectors
2539EPS -
EP cartridge - Long sculptured lever - Standard connectors
2239EP -
EP cartridge - Short sculptured lever - STOP/CHECK connectors
2539 -
Standard cartridge - Long sculptured lever -STOP/CHECK connectors
2539S -
Standard cartridge - Long sculptured lever -Standard connectors
2239 -
Standard cartridge - Short sculptured lever - STOP/CHECK connectors
2239S -
Standard cartridge - Short sculptured lever - standard connectors
SECURITHERM EP pressure-balancing shower mixer
Ref. 2239EPS
Wall-mounted single control mechanical shower mixer.
Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Total anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of pressure or flow rate variations in the system.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M½" shower outlet with integrated non-return valve.
Mixer with offset standard wall connectors M1/2" M3/4".
Filters and non-return valves.
SECURITHERM mechanical mixer with pressure-balancing ideal for healthcare facilities, nursing homes, hospitals and clinics.
Shower mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Total anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of pressure or flow rate variations in the system.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M½" shower outlet with integrated non-return valve.
Mixer with offset standard wall connectors M1/2" M3/4".
Filters and non-return valves.
SECURITHERM mechanical mixer with pressure-balancing ideal for healthcare facilities, nursing homes, hospitals and clinics.
Shower mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Advantages
SECURITHERM EP pressure-balancing shower mixer
Ref. 2239EPS
Connector
M1/2"
Technology SECURITHERM EP mechanical mixer

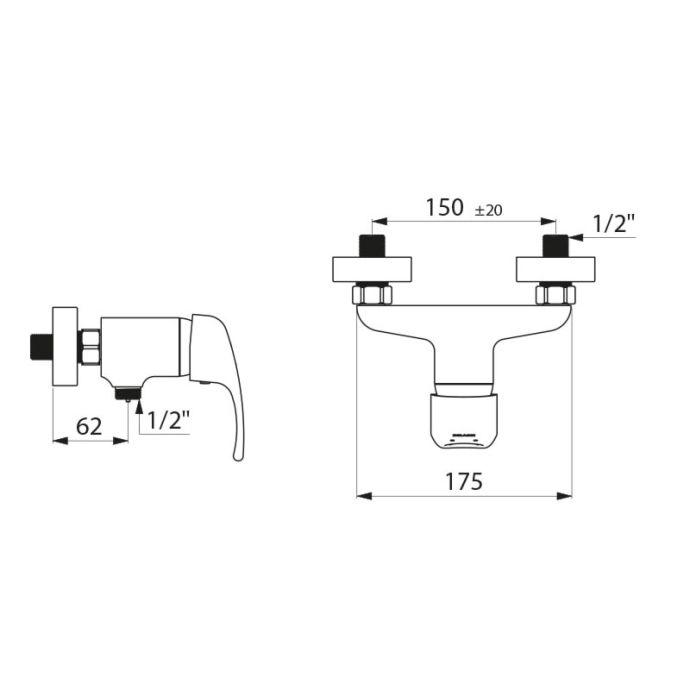

Width 175mm
Flow rate 9 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates
Warranty
Repairability
Technology SECURITHERM EP mechanical mixer
Width 175mm
Flow rate 9 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates
Warranty
Repairability
SECURITHERM EP pressure-balancing shower mixer
Ref. 2239EPS
To download one or several documents linked to this product, please select the type of file you require
SECURITHERM EP pressure-balancing shower mixer
Ref. 2239EPS
SECURITHERM EP pressure-balancing shower mixer
Ref. 2239EPS

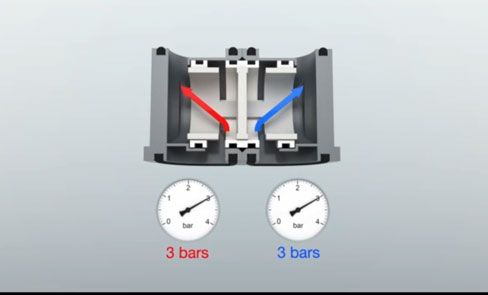

Pressure-balancing: mixer with anti-scalding safety and temperature stability
Ergonomic: shower mixer with sculptured lever which is easy to grip
