Securitouch mechanical shower mixer

Ref. 2739S
Wall-mounted single control mixer, sculptured lever
See variants See variants
Securitouch mechanical shower mixer +

Presentation

DESCRIPTION

Securitouch mechanical shower mixer

Ref. 2739S
Wall-mounted single control mechanical shower mixer.

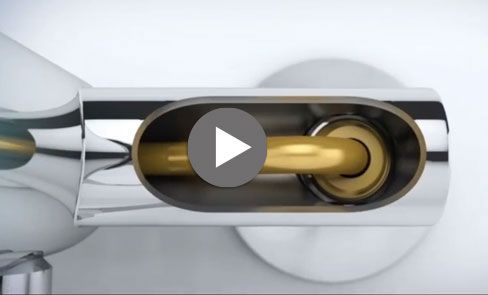

Wall-mounted single control mixer with Securitouch thermal insulation to prevent burns.
Ø 40mm classic ceramic cartridge with pre-set maximum temperature limiter.
Body with smooth interior and low water volume.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M1/2" shower outlet with integrated non-return valve.
Mixer with offset standard wall connectors, M1/2" M3/4".
Mixer ideal for healthcare facilities, nursing homes, hospitals and clinics.
Shower mixer ideal for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Sécurité anti-brûlure

Securitouch thermal insulation prevents burns

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: low water volume.

Confort - Ergonomie - Déclenchement souple

Ergonomic: sculptured lever is easy to grip

Characteristics

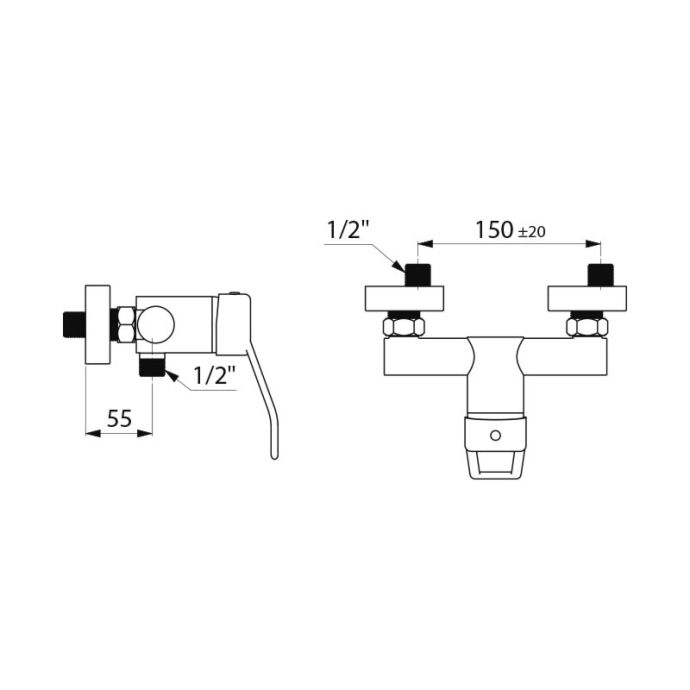

TECHNICAL CHARACTERISTICS

Securitouch mechanical shower mixer

Ref. 2739S
Connector M1/2"
Technology Securitouch shower mixer
Width 182mm
Flow rate 9 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS WRAS PZH DoP NF
Warranty 30-Year
Repairability
Securitouch mechanical shower mixer
Ref. 2739S

Downloads

DOWNLOADS

Securitouch mechanical shower mixer

Ref. 2739S

To download one or several documents linked to this product, please select the type of file you require :

Compatible products

COMPATIBLE PRODUCTS

Securitouch mechanical shower mixer

Ref. 2739S
2739SHYG
Auto-draining shower kit with mechanical mixer
Auto-draining shower kit with mechanical mixer
2739SKIT
Shower riser rail with mechanical mixer
Shower riser rail with mechanical mixer

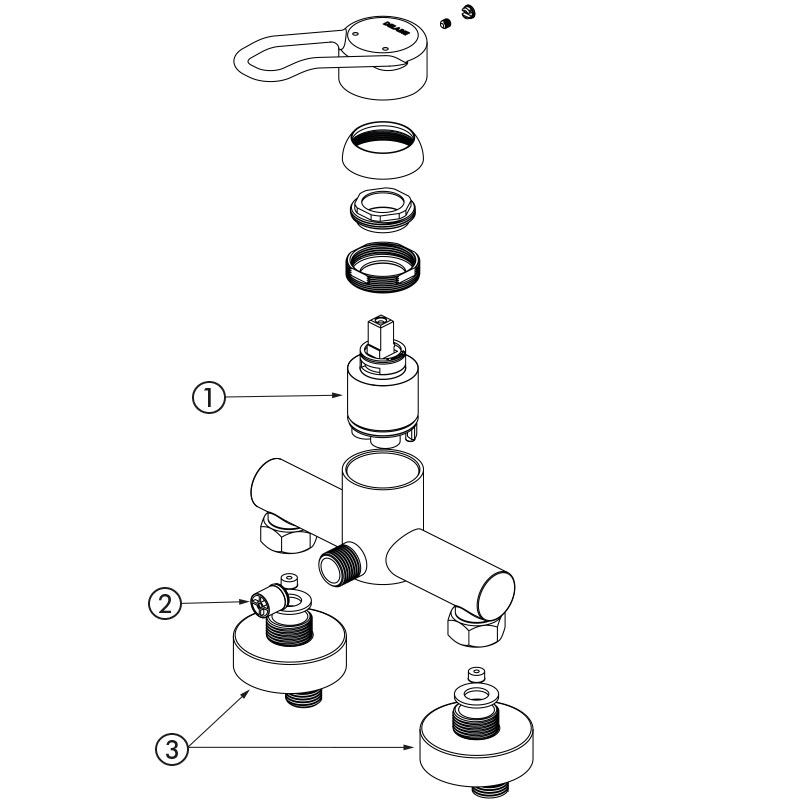

Spare parts

SPARE PARTS

Securitouch mechanical shower mixer

Ref. 2739S
1. N109AG75
Ø40mm ceramic cartridge
2. 900015
Non-return valve
3. 900005
Flow limiter
4. 856794.2P
Offset union

VARIANTS

2739EP Mixer with EP cartridge - Sculptured lever - STOP/CHECK connectors
2739TEP Mixer with EP cartridge - Solid lever - STOP/CHECK connectors
2739EPS Mixer with EP cartridge - Sculptured lever - Standard connectors
2739TEPS Mixer with EP cartridge - Solid lever - Standard connectors
2739 Mixer w standard cartridge - Sculptured lever - STOP/CHECK connectors
2739T Mixer w standard cartridge - Solid lever - STOP/CHECK connectors
2739TS Mixer with standard cartridge - Solid lever - Standard connectors
