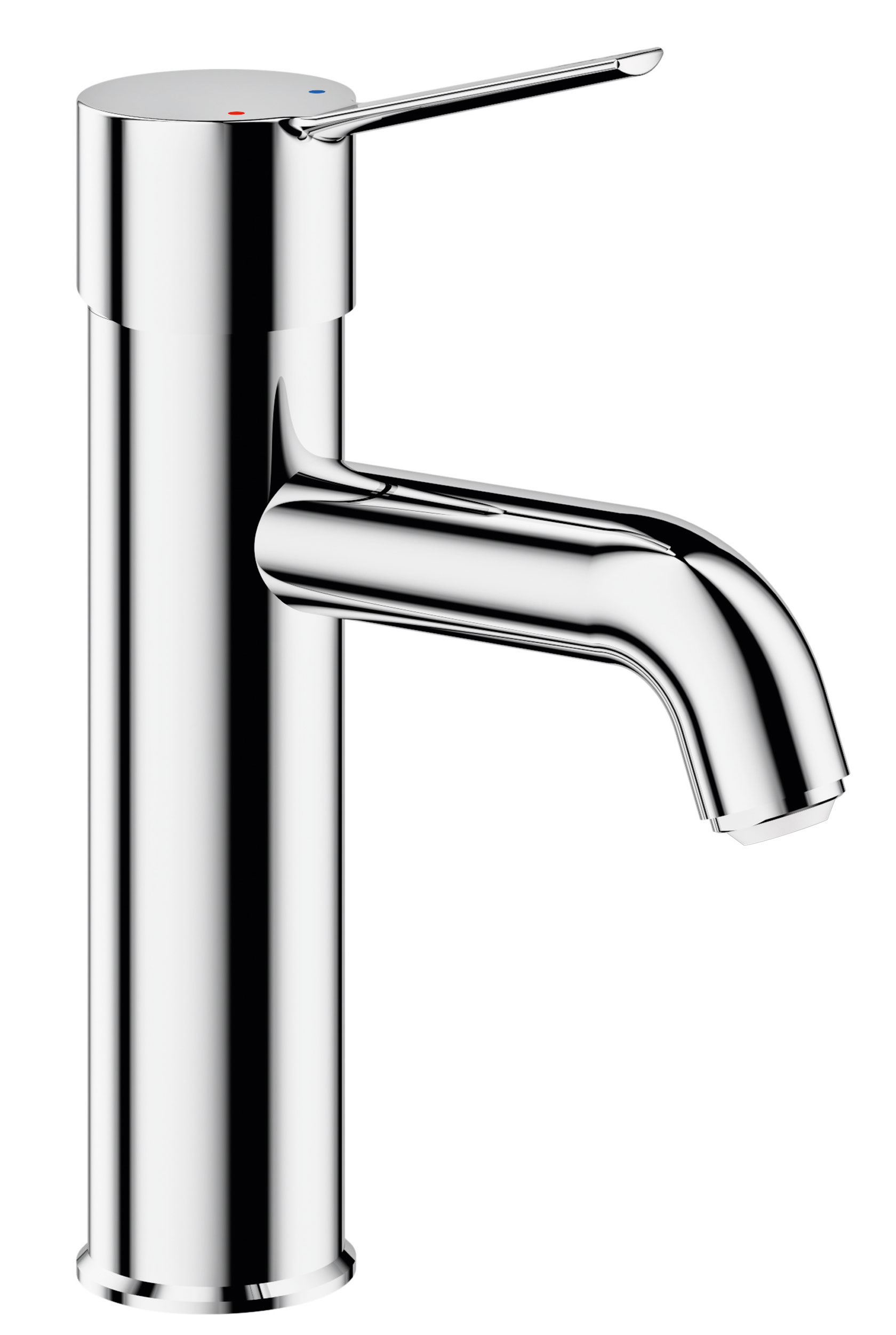

SECURITHERM EP pressure-balancing mixer

Ref. 2721TEP
Single hole mechanical mixer H. 95mm L. 120mm
SECURITHERM EP pressure-balancing mixer

Presentation

DESCRIPTION

SECURITHERM EP pressure-balancing mixer

Ref. 2721TEP
Deck-mounted mechanical basin mixer with pressure-balancing.
Single hole mixer with a curved spout H. 95mm L. 120mm fitted with a hygienic BIOSAFE outlet.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Total anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of variations in pressure and flow rate in the system.
Body and spout with smooth interiors (reduced bacterial development).
Flow rate limited to 5 lpm at 3 bar.
Solid control lever.
No pop-up waste.
F3/8" PEX flexibles with filters and non-return valves.
Reinforced fixing via 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing, ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

HW flow rate reduced if CW supply fails

Confort - Ergonomie - Déclenchement souple

EP: reduces temperature variations

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Sécurité anti-brûlure

Thermal shock without removing the control lever

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing mixer

Ref. 2721TEP
Connector F3/8"
Technology SECURITHERM EP mechanical mixer
Drop height 95mm
Spout length 120mm
Flow rate 5 lpm at 3 bar
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo WRAS Logo Belgaqua Logo Ü accoustic Logo DIN-DVGW Logo DoP Logo PZH SINTEF
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

SECURITHERM EP pressure-balancing mixer

Ref. 2721TEP

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

SECURITHERM EP pressure-balancing mixer

Ref. 2721TEP
Before 12/2022
1. N252
Ø40mm ceramic pressure balancing EP cartridge with base
2. 921024.2P
Star-shaped flow straightener
3. 2510SES
Locking kit
4. FLEXPEX3
F3/8" PEX flexible hoses
5. 900010
Non-return valve
6. 60438.10P
Conical filter
From 12/2022
1. N262
Ø35mm ceramic pressure balancing cartridge
2. 922640
BIOSAFE hygienic outlet M24/100
3. 2510SES
Locking kit
4. FLEXPEX3
F3/8" PEX flexible hoses
5. 900010
Non-return valve
6. 60438.10P
Conical filter

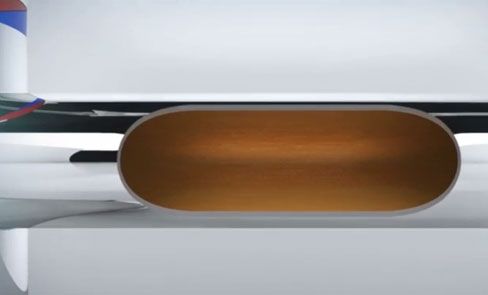

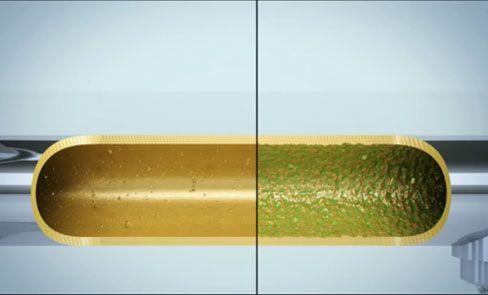

Infection control: mixer body with smooth interior
Infection control: mixer body with smooth interior
Pressure-balancing: anti-scalding safety and stable temperature
Pressure-balancing: anti-scalding safety and stable temperature
