DESCRIPTION

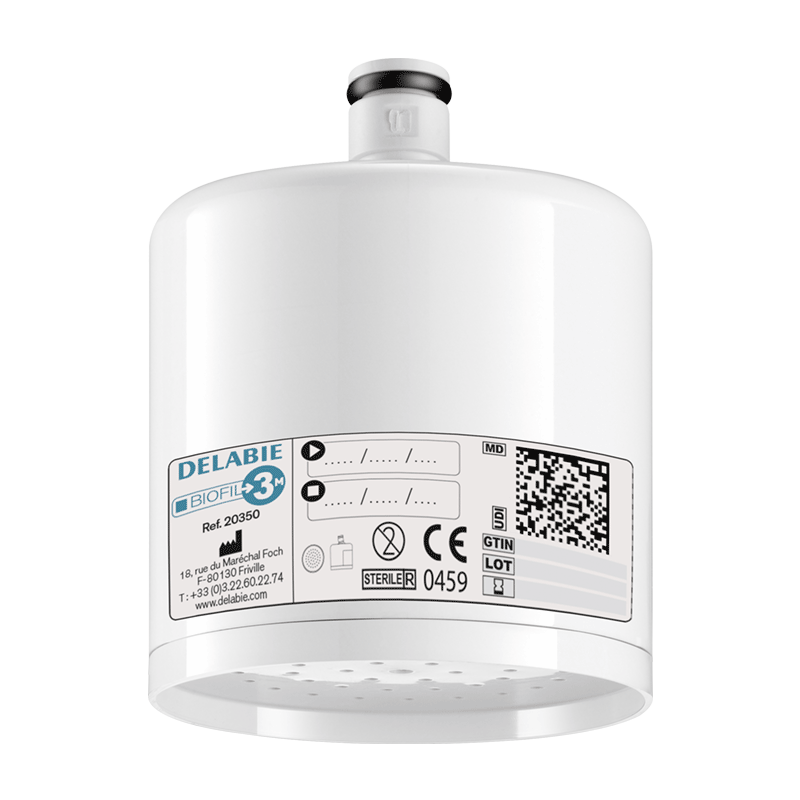

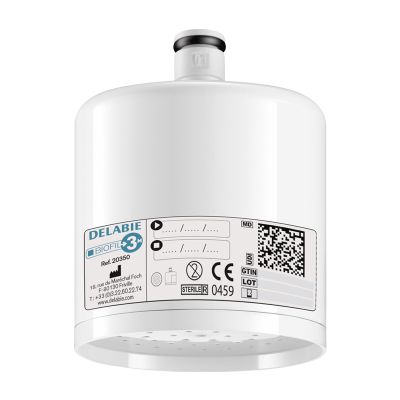

BIOFIL 3-month tap head filter
Ref. 20350DELABIE anti-Legionella and all-germ tap head filter.
Device made from ABS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Qualified water volume per duration of use: 9,000 litres.
Filtration flow rate: 4.6 lpm at 1 bar, 7.6 lpm at 3 bar and 9.4 lpm at 5 bar (filter only, excludes any flow rate restriction in the tap).

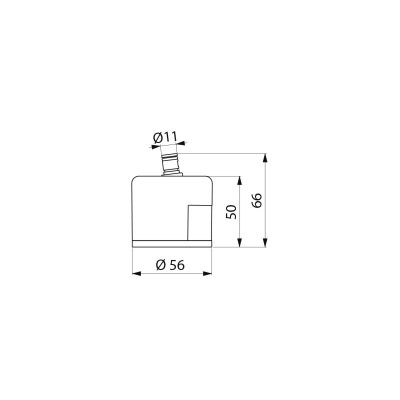

Space saving, suitable for taps with a low spout height: H. 50mm, Ø. 56mm
Controlled management of retro-contamination: protective skirt and angled connector for optimal positioning (filter position can be adjusted so the water does not flow directly on to the waste).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 3 months after installation.
Resistance to thermal shocks: 70°C for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm for 3 hours (cumulative total).
Sterile filter. Individually wrapped, sterile.
CE Class Is medical device.
Single unit. Can only be ordered in multiples of 10.
Packaged in boxes of 10.
Device made from ABS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Qualified water volume per duration of use: 9,000 litres.
Filtration flow rate: 4.6 lpm at 1 bar, 7.6 lpm at 3 bar and 9.4 lpm at 5 bar (filter only, excludes any flow rate restriction in the tap).
Space saving, suitable for taps with a low spout height: H. 50mm, Ø. 56mm
Controlled management of retro-contamination: protective skirt and angled connector for optimal positioning (filter position can be adjusted so the water does not flow directly on to the waste).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 3 months after installation.
Resistance to thermal shocks: 70°C for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm for 3 hours (cumulative total).
Sterile filter. Individually wrapped, sterile.
CE Class Is medical device.
Single unit. Can only be ordered in multiples of 10.
Packaged in boxes of 10.
ADVANTAGES

Anti-Legionella and all-germ

Space saving

Optimised position: angled connection

Lifespan: 3 months after installation
TECHNICAL CHARACTERISTICS
BIOFIL 3-month tap head filter
Ref. 20350Technology | Point-of-use filtration |
Height | 50mm |
Flow rate | 4.6 lpm at 1 bar, 7.6 lpm at 3 bar and 9.4 lpm at 5 bar |
Diameter | 56mm |
Certificates |
![]() ![]() ![]() ![]() ![]() |
