DESCRIPTION

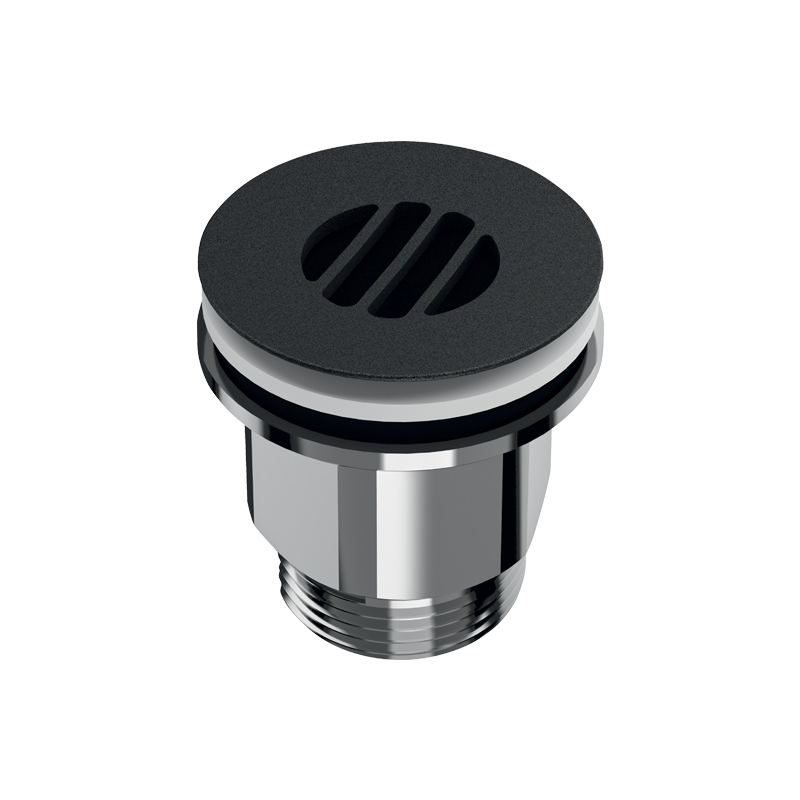

HYGIÉNA basin waste
Ref. 6110BKHygienic washbasin waste, M1¼" with concave grid (no water retention).
Free flow, with no central screw (avoids scale deposits and reduces bacterial development).
Brass grid with polished chrome-plated Teflon® finish and chrome-plated ABS body.
Can be tightened: min. 1mm, max. 2mm.
Conforms to EN 274-1.
Free flow, with no central screw (avoids scale deposits and reduces bacterial development).
Brass grid with polished chrome-plated Teflon® finish and chrome-plated ABS body.
Can be tightened: min. 1mm, max. 2mm.
Conforms to EN 274-1.
ADVANTAGES
No central screw, avoids scale and water retention
Ideal for stainless steel basins

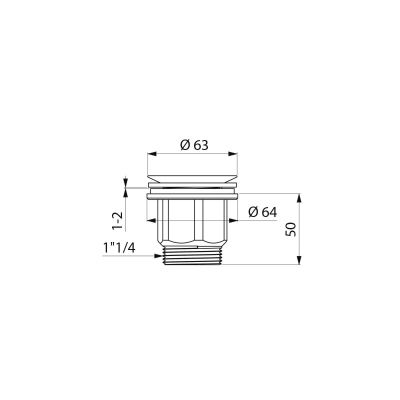

TECHNICAL CHARACTERISTICS
HYGIÉNA basin waste
Ref. 6110BK| Connector | 11/4" |
VARIANTS
| 611 | HYGIÉNA basin waste - Chrome-plated finish - tall model | ||
|---|---|---|---|
| 621 | Chrome-plated hygienic waste without water level | ||
| 621W | White hygienic waste without water level | ||
| 6110 | HYGIÉNA washbasin waste -Chrome-plated finish - short model | ||
| 581000 | ON/OFF basin waste with stainless steel valve | ||
| 580000 | Basin or urinal waste trap w. stainless steel grid for hole max Ø54mm | ||
| 620 | Stainless steel waste with valve M11/4" | ||
| 517000 | Inlet F 1¼", horizontal outlet Ø 32mm with nut, water level 50mm | ||
| 621001.2P | Membrane and cup assembly - For Ref.621 | ||
| 621001W.2P | Dome and membrane assemly - For Ref. 621W |
Associated products
HYGIÉNA waste
Waste with concave grid
Ref. 6110
VARIANTS
| 611 | HYGIÉNA basin waste - Chrome-plated finish - tall model | ||
|---|---|---|---|
| 621 | Chrome-plated hygienic waste without water level | ||
| 621W | White hygienic waste without water level | ||
| 6110 | HYGIÉNA washbasin waste -Chrome-plated finish - short model | ||
| 581000 | ON/OFF basin waste with stainless steel valve | ||
| 580000 | Basin or urinal waste trap w. stainless steel grid for hole max Ø54mm | ||
| 620 | Stainless steel waste with valve M11/4" | ||
| 517000 | Inlet F 1¼", horizontal outlet Ø 32mm with nut, water level 50mm | ||
| 621001.2P | Membrane and cup assembly - For Ref.621 | ||
| 621001W.2P | Dome and membrane assemly - For Ref. 621W |
