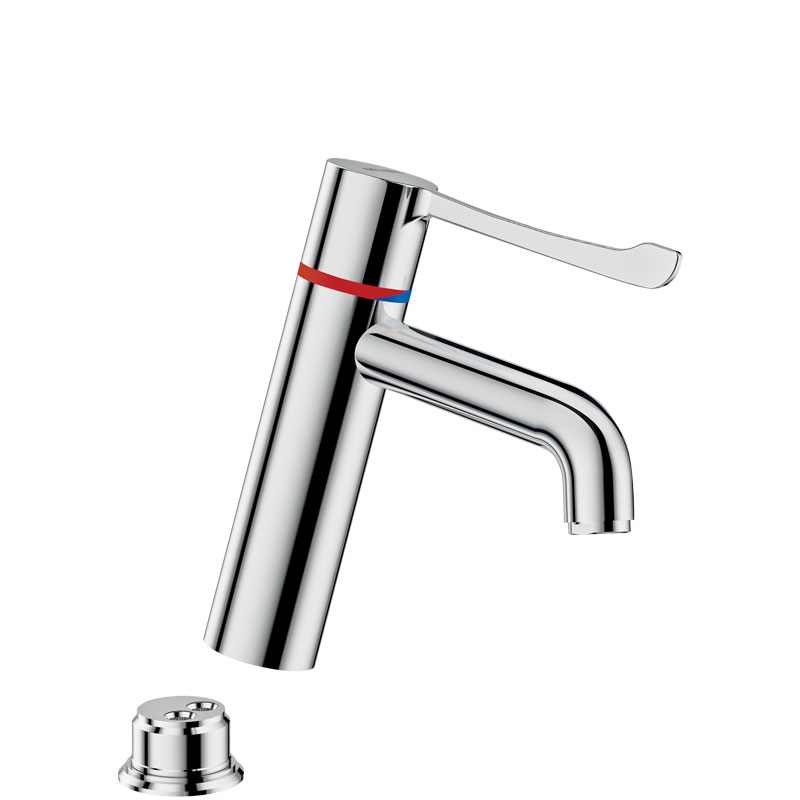

Deck-mounted SECURITHERM thermostatic basin mixer.
Sequential thermostatic mixer: opens and closes with cold water.
No risk of cross flow between the hot and cold water.
No non-return valve.

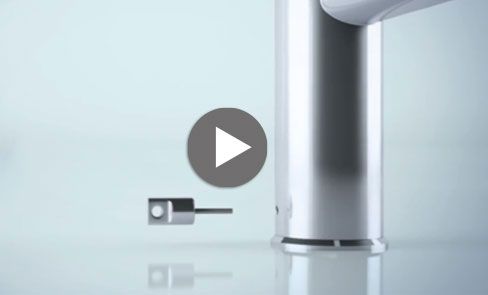

BIOCLIP: mixer can be easily removed for cleaning and disinfection.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.

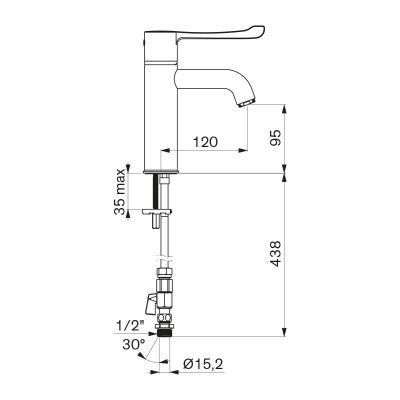

Single hole mixer with curved spout, H. 95mm L. 120mm, fitted with a hygienic flow straightener, no build-up of impurities and withstands thermal shocks.
Scale-resistant sequential thermostatic cartridge for single control adjustment of flow rate and temperature.
Temperature adjusts from cold water up to 40°C with maximum temperature limiter set at 40°C.
Tested without water to comply with NHS requirements. No pre-set temperature.
Thermal and chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
No manual contact thanks to Hygiene control lever L. 146mm.
No pop-up waste.
Supplied with F3/8" PEX flexibles with chrome-plated brass stopcocks, filters and Ø 15mm conical connectors.
Fixing reinforced via 2 stainless steel rods.
Mixer ideal for healthcare facilities, retirement and care homes , hospitals and clinics.
Mixer suitable for people with reduced mobility.
30-year warranty.
Also available with copper tails.
Advantages
Maximum hygiene: mixer with no non-return valves
Hygiene: can be removed for internal cleaning
SECURITHERM: optimal anti-scalding safety
Sequential: opens/closes with cold water
SECURITHERM BIOCLIP thermostatic basin mixer
Ref. H960515
Connector
M1/2", Ø 15mm
Technology
SECURITHERM BIOCLIP sequential thermostatic mixer
Drop height
95mm
Spout length
120mm
Flow rate
5 lpm at 3 bar
Temperature limiter
Yes
Finish
Chrome-plated brass
Certificates
Warranty
Repairability
SECURITHERM BIOCLIP thermostatic basin mixer
Ref.
H960515
To download one or several documents linked to this product, please select the type of file you require
