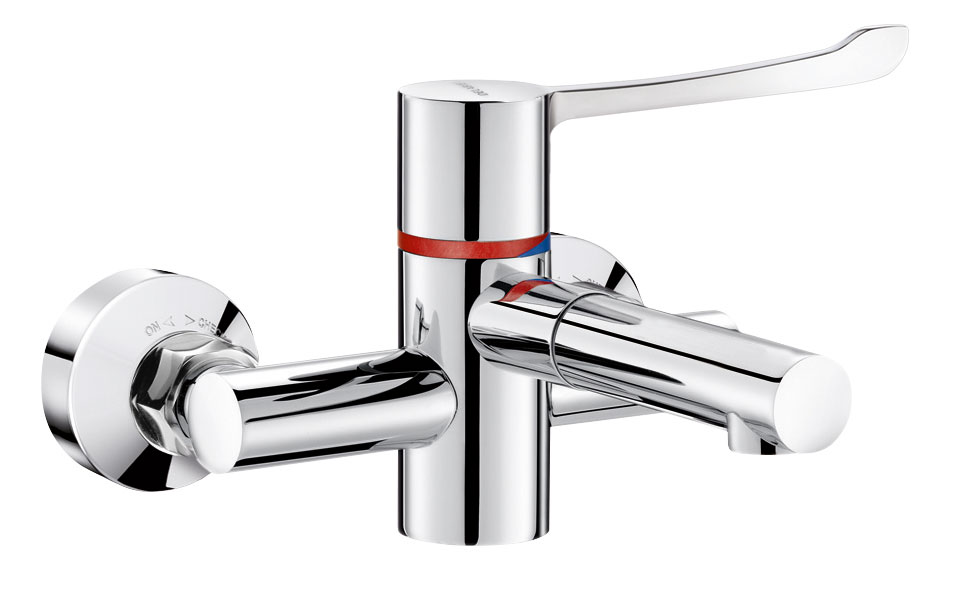

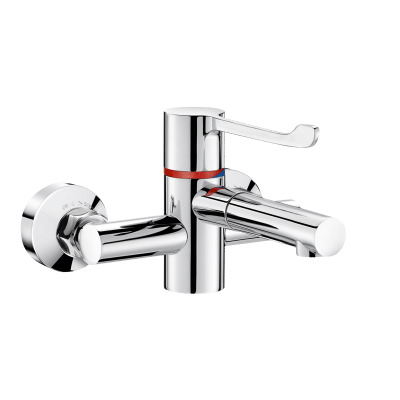

SECURITHERM BIOCLIP thermostatic sink mixer
Ref. H9611
Wall-mounted sequential thermostatic mixer
Wall-mounted sequential thermostatic mixer
DESCRIPTION
SECURITHERM BIOCLIP thermostatic sink mixer
Ref. H9611Wall-mounted SECURITHERM thermostatic sink mixer.
Sequential thermostatic mixer: opens and closes with cold water.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Wall-mounted mixer supplied with 2 removable stainless steel spouts L.136mm.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant sequential thermostatic cartridge for sequential control of flow and temperature.
Temperature can be adjusted from cold water up to 40°C, with temperature limiter set at 40°C.
Thermal and chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 7 lpm.
Chrome-plated brass body.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 150mm centres supplied with offset STOP/CHECK connectors M1/2" M3/4" ideal for hospitals.

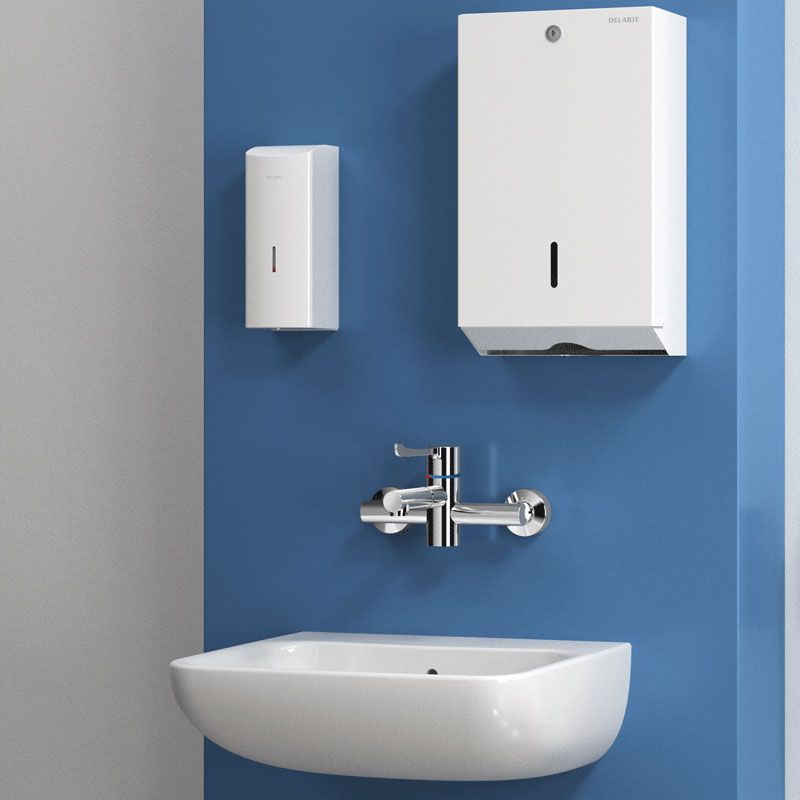

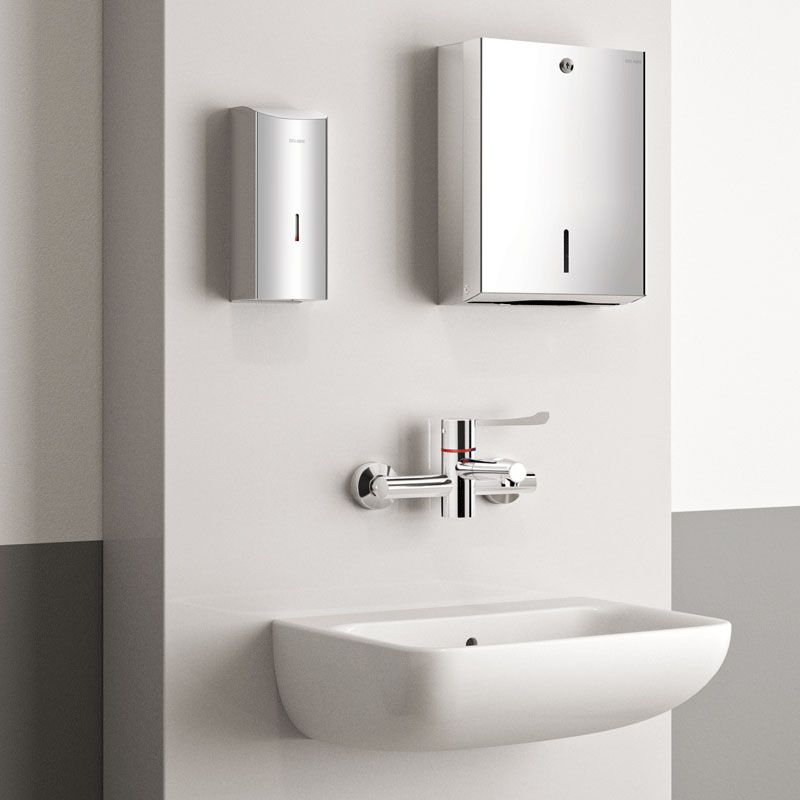

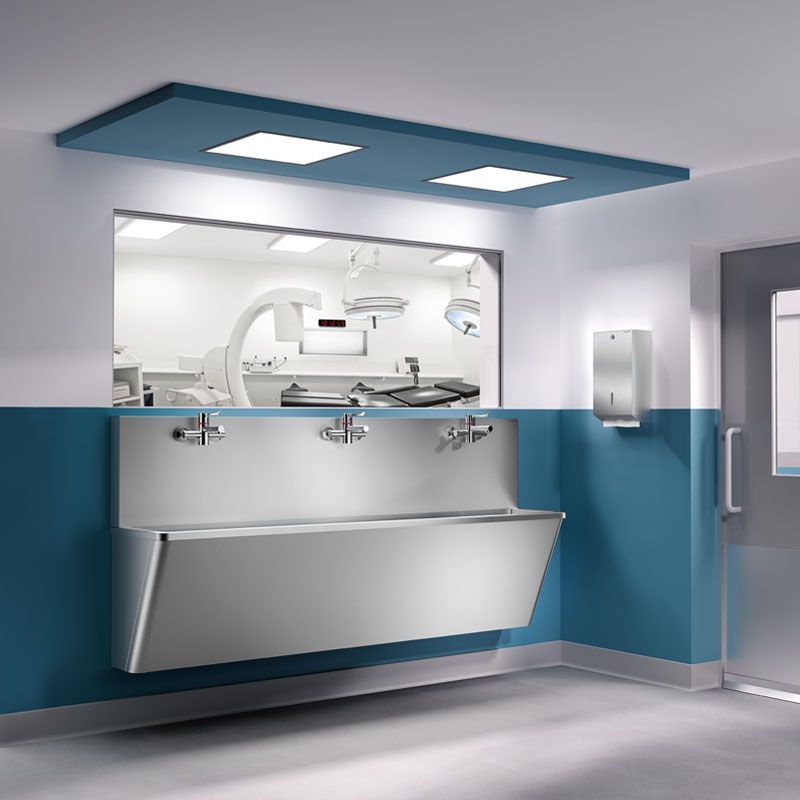

Mixer ideal for healthcare facilities, retirement homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Sequential thermostatic mixer: opens and closes with cold water.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Wall-mounted mixer supplied with 2 removable stainless steel spouts L.136mm.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant sequential thermostatic cartridge for sequential control of flow and temperature.
Temperature can be adjusted from cold water up to 40°C, with temperature limiter set at 40°C.
Thermal and chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 7 lpm.
Chrome-plated brass body.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 150mm centres supplied with offset STOP/CHECK connectors M1/2" M3/4" ideal for hospitals.
Mixer ideal for healthcare facilities, retirement homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
ADVANTAGES

Sequential: opens/closes with cold water

Hygiene: no non-return valves

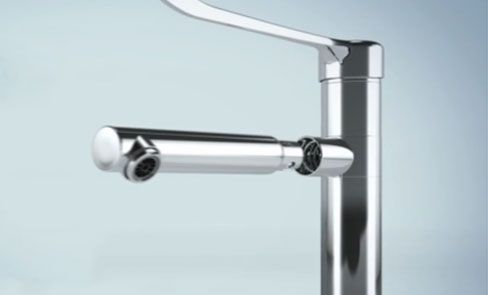

Removable spout: reduces bacterial development

SECURITHERM: optimum anti-scalding safety

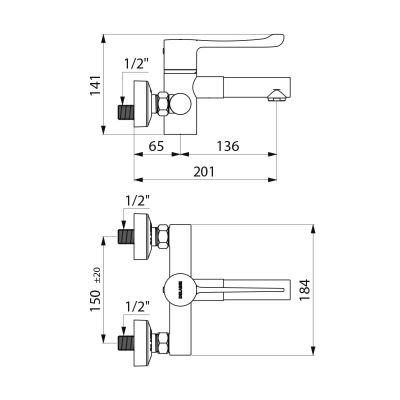

TECHNICAL CHARACTERISTICS
SECURITHERM BIOCLIP thermostatic sink mixer
Ref. H9611| Connector | M1/2" |
| Technology | SECURITHERM Securitouch sequential mixer |
| Depth | 201mm |
| Spout length | 136mm |
| Flow rate | 7 lpm |
| Temperature limiter | Yes |
| Finish | Chrome-plated brass |
| Certificates |
|
| Warranty | |
| Repairability | ![]() |
Spare parts

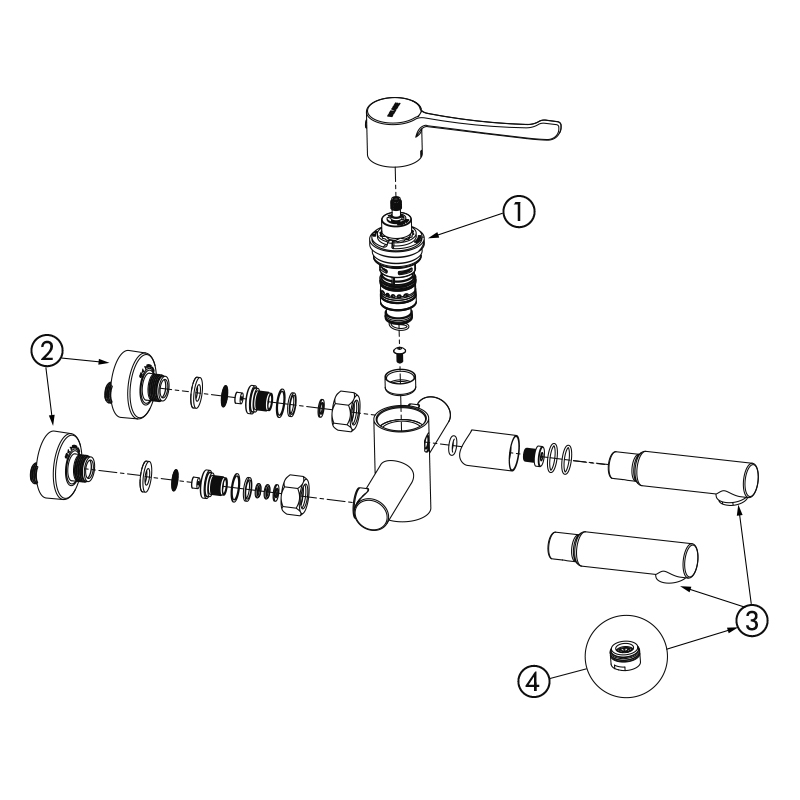

SPARE PARTS
SECURITHERM BIOCLIP thermostatic sink mixer
Ref. H9611
| 1. | N961 |
|
Thermostatic sequential cartridge |
| 2. | 900005 |
|
Flow limiter |
| 3. | 855755.2P |
|
Offset connectors |
| 4. | 20003 |
|
Stainless steel BIOCLIP spout |
| 5. | 921024.2P |
|
Star-shaped flow straightener |
VARIANTS
| H9610 | Removable disposable spout - offset STOP/CHECK unions, 150mm centres | ||
|---|---|---|---|
| H9614P | Removable brass spout - offset STOP/CHECK unions, 200mm centres | ||
| H9611P | Removable brass spout - inline STOP/CHECK unions, 150mm centres | ||
| H9610S | Removable disposable spout - offset standard unions, 150mm centres | ||
| H9611S | Removable st. steel spout - offset standard unions, 150mm centres |
VARIANTS
| H9610 | Removable disposable spout - offset STOP/CHECK unions, 150mm centres | ||
|---|---|---|---|
| H9614P | Removable brass spout - offset STOP/CHECK unions, 200mm centres | ||
| H9611P | Removable brass spout - inline STOP/CHECK unions, 150mm centres | ||
| H9610S | Removable disposable spout - offset standard unions, 150mm centres | ||
| H9611S | Removable st. steel spout - offset standard unions, 150mm centres |
